Quick Details
-
Marketing Type:
-
Hot Selling Product 2023
-
Weight:
-
2280 KG
-
Application:
-
Farm Work Machinery
-
Color:
-
Orange
-
Implements:
-
Loader Backhoe Trailer Plough Harrow
Quick Details
-
Rated Power (HP):
-
71HP
-
Brand Name:
-
Kubota-Tractor
-
Place of Origin:
-
France
-
Marketing Type:
-
Hot Selling Product 2023
-
Weight:
-
2280 KG
-
Application:
-
Farm Work Machinery
-
Color:
-
Orange
-
Implements:
-
Loader Backhoe Trailer Plough Harrow
Kubota M7060 Specs
Engine:
| engine | Kubota V3307-CF-TE4 turbocharged diesel 4-cylinder liquid-cooled inline 203 ci [3.3 L] |
| Bore/Stroke: | 3.7×4.7 inches [94 x 119 mm] |
| Emissions: | Tier IV |
| Emission control: | exhaust gas recirculation (EGR) |
| Fuel system: | common rail direct injection |
| Rated RPM: | 2400 |
| Starter: | electric |
| Starter volts: | 12 |
capacity
| ROPS Fuel: | 18.5 gal [70.0 L] |
| Cab Fuel: | 23.8 gal [90.1 L] |
3 Point Hitch
| Rear Type: | II/I |
| Control: | position control and top-link draft sensing |
| Rear lift (at 24″/610mm): | 3307 lbs [1500 kg] |
| Rear Arms: | telescopic lower link ends |
Kubota M7060 Power
| Engine (net): | 71 hp [52.9 kW] |
| PTO (claimed): | 64 hp [47.7 kW] |
Mechanical
| Chassis: | 4×2 2WD |
| 4×4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| hydraulic wet disc (12-speed) | |
| Cab: | Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system. |
Kubota M7060 Transmission
| Transmission: | |
| Type: | power shuttle |
| Gears: | 8 forward and reverse |
| Clutch: | wet discs |
| Four synchronized gears (1-6) in two ranges (low/high). | |
| Transmission: | |
| Transmission: | power shuttle |
| Gears: | 12 forward and reverse |
| Clutch: | wet discs |
| Six synchronized gears (1-6) in two ranges (low/high). | |
Hydraulics
| Valves: | 1 to 3 |
| Pump flow: | 11 GPM [41.6 lpm] (8-speed) |
| 16.2 GPM [61.3 lpm] (12-speed) |
Kubota M7060 PTO
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540 (1.375 |
| 540/540E (1.375) |
Kubota M7060 Dimensions
| Weight: | 5027 lbs [2280 kg] (4WD ROPS) |
| 5248 lbs [2380 kg] (2WD Cab) | |
| 5380 lbs [2440 kg] (4WD Cab) | |
| 2WD Wheelbase: | 84.4 inches [214 cm] |
| 4WD Wheelbase: | 83.1 inches [211 cm] |
| 2WD Length: | 142.7 inches [362 cm] |
| 4WD Length: | 138 inches [350 cm] |
| Width: | 73 inches [185 cm] (min) |
| Height (ROPS): | 97.2 inches [246 cm] |
| Height (cab): | 101 inches [256 cm] |
| Clearance (front axle): | 18.1 inches [45 cm] |
| Rear axle: | Flange |
| Front tread: |
55.9 to 71.7 inches (2WD)
[141 to 182 cm] (2WD) 55.9/59.8 inches (4WD) [141/151 cm] |
| Rear tread: |
55.9 to 67.7 inches
[141 to 171 cm] |
Kubota M7060 Tires
| Standard tires (ag): | Front: 7.5-16. Rear: 16.9-30 (2WD) |
| Front: 9.5-24. Rear: 16.9-30 (4WD) |
Kubota M7060 Electrical
| Ground: | negative |
| Charging system: | alternator |
| ROPS Charging amps: | 45 |
| Cab Charging amps: | 60 |
| Optional Charging amps: | 100 |
Kubota M7060 Attachments

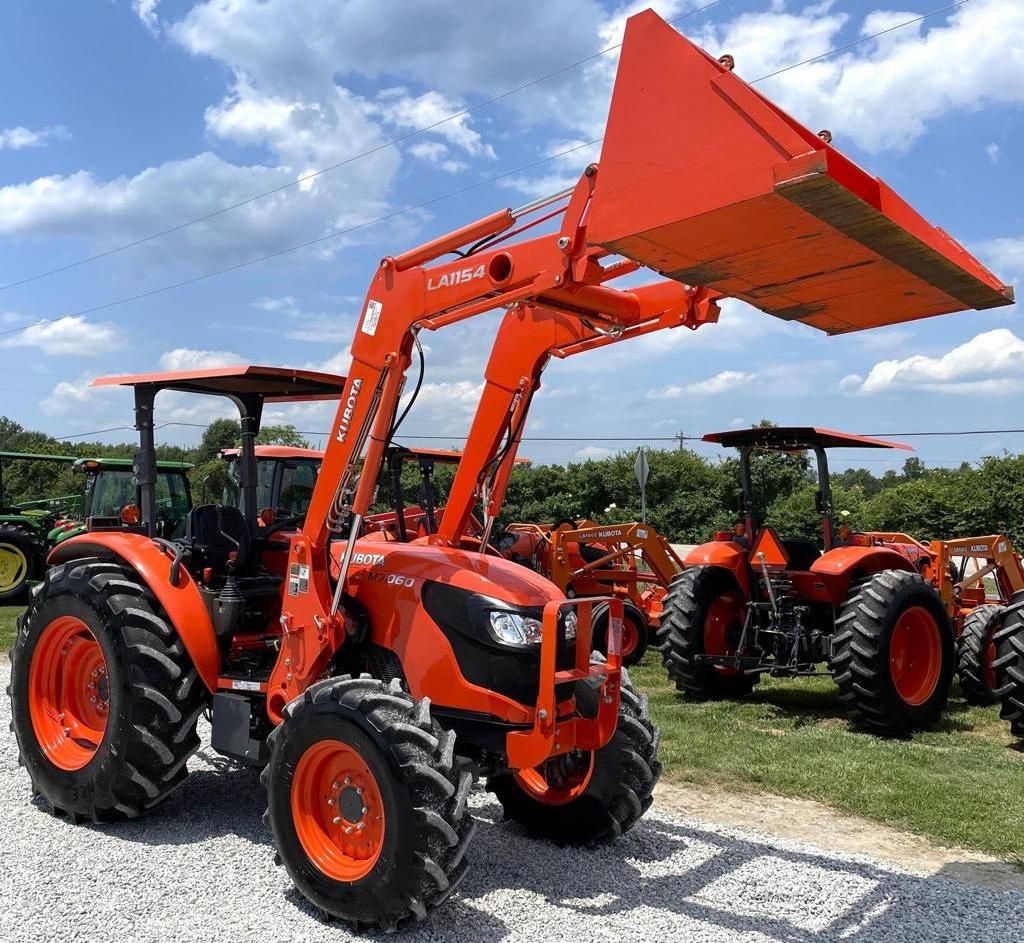

Kubota LA1154 Loader: |
|
| Loader type: | Kubota LA1154 |
| Height (to pin): | 132.7 inches [337 cm] |
| 117.2 inches [297 cm] (power position) | |
| Clearance, dumped bucket: | 101.5 inches [257 cm] |
| 85.5 inches [217 cm] (power position) | |
| Dump reach: | 18 inches [45 cm] |
| 35.9 inches [91 cm] (power position) | |
| Dump angle: | 43 |
| 60 (power position) | |
| Reach at the ground: | 76.7 inches [194 cm] |
| Rollback angle: | 43 |
| Lift to full height (at pin): | 2469 lbs [1119 kg] |
| 2928 lbs [1328 kg] (power position) | |
| Bucket width: | 72 inches [182 cm] |
| Raise time to height: | 4.7 s |
| Bucket dump time: | 2.8 s |
| Lowering time: | 3.6 s |
| Rollback time: | 3.0 s |
