Quick Details
-
Brand Name:
-
EPSolid
-
Standard or Nonstandard:
-
Standard
-
Body Material:
-
Aluminium Alloy
-
Function:
-
5/2 Way,5/3 Way,3/2 Way
-
Type:
-
Pneumatic Control Valve
Quick Details
-
Port Size:
-
1/8''~1/2''
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
4V
-
Brand Name:
-
EPSolid
-
Standard or Nonstandard:
-
Standard
-
Body Material:
-
Aluminium Alloy
-
Function:
-
5/2 Way,5/3 Way,3/2 Way
-
Type:
-
Pneumatic Control Valve

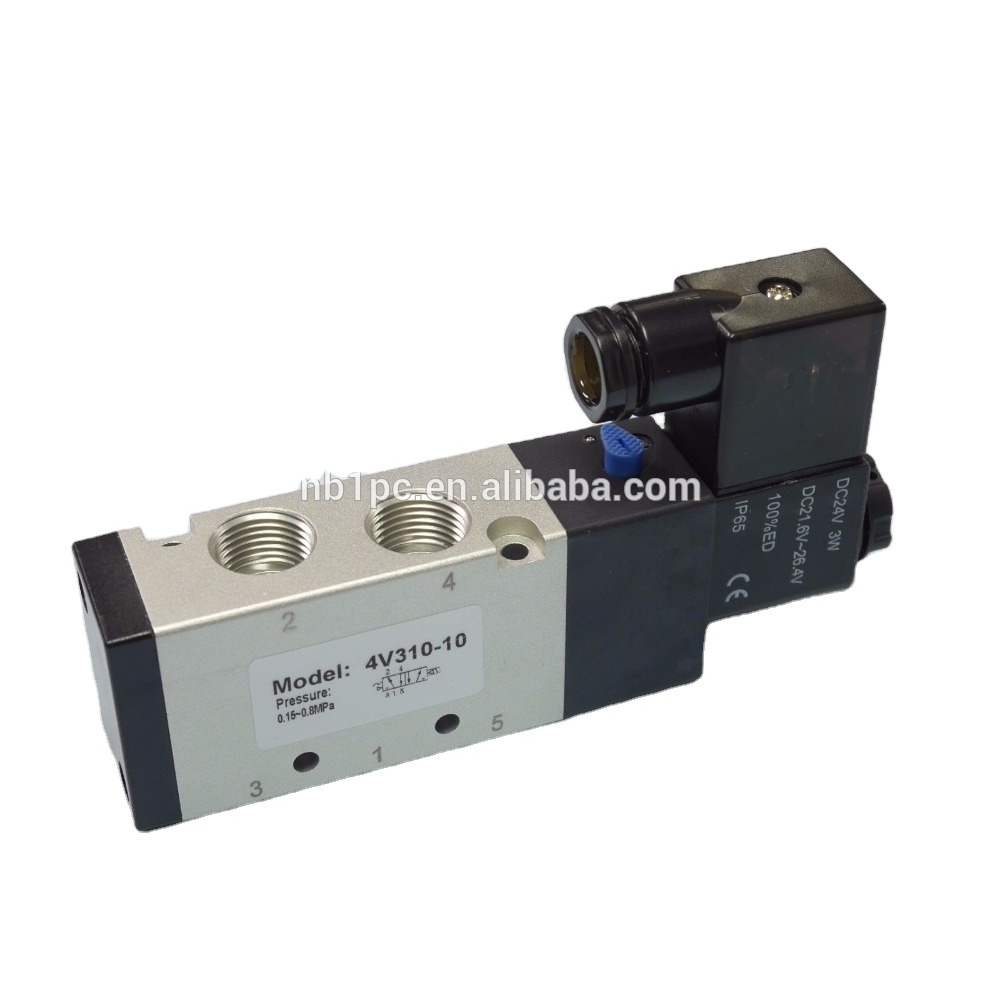

3V / 4V 3A / 4A series
of electromagnetic valve overall profile manufacturing, the use of slot structure to high-precision processing technology to protect product performance, the product is compact, rational design, good commutation, and can be integrated on the floor, occupies a small space, easy maintenance.
Model:
4V110-06; 4V120-06; 4V130C-06;4V130E-06; 4V130P-06
4V110-M5; 4V120-M5; 4V130C-M5;4V130E-M5; 4V130P-M5
4A110-06; 4A120-06; 4A130C-06;4A130E-06; 4A130P-06
4A110-M5; 4A120-M5; 4A130C-M5;4A130E-M5; 4A130P-M5
3V110-06;3V120-06;3A110-06; 3A120-06 3V110-M5 ;3V120-M5 ;3A110-M5; 3A120-M5
Port size:
M5X0.8; G1/8";
Position and way No.
5/2 Way ; 3/2 way; 5/3 way
Standard Voltage:
DC12V; DC24V; AC24V; AC110V;AC220V;AC380V
Connection and initial status:
Threaded; sub-plated mounted(for 5/2way, 5/3 way only)
NC 3/2 way normally colsed ; 3/2 way normally open
Coil and type:
10 Single coil; 20 Doulbe coil; 30c Mid-position closed; 30E Mid-Position exhause; 30P Mid-position pressure
Description:
With solenoid operated for control appropriate flow and direction, provide great performance.
Alloy body have a long lifespan, perfect for electrically driven pneumatic power control.
2 position 5 way with 2 inlet, 1 oulet and 2 exaust.
2 position 3 way with 1 inlet, 1 oulet and 1 exaust.
Feature:
1.Pilot-oriented mode:optional for internal or external;
2.Stucture in sliding column mode:good tightness and sensitive reaction;
3.Three position solenoid valves have three kinds of central function for your choice;
4.Double control solenoid valves have memory function;
5.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life;
6.No need to add oil for lubrication;
7.It is available to form integrated valve group with the base to save installation space;
8.Affiliated manual devices are equipped to facilitate installation and debugging;
9.Several standard voltage grades are optional.
