Quick Details
-
Thermal Conductivity:
-
0.085-0.178
-
Thickness:
-
25/50/75mm
-
Width:
-
600mm
-
Length:
-
1000/900mm
-
Working Temperature:
-
1100C/1260C/1360C/1430C
-
Shrinkage (1800℉, 3h):
-
3%(24h)
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Standard
-
Brand Name:
-
DKJL
-
Product name:
-
High quality ceramic board
-
width:
-
600/1000mm
-
length:
-
1200/1000/900mm
-
Ultimate Strength ( MPa)::
-
0.5
-
Working Temperature::
-
1050C/1260C/1400C
-
Fiber Diameter::
-
3-5micron
-
Thermal Conductivity::
-
0.086-0.108
-
Density::
-
280/300/350/380kg/m3
-
ceramic fiber board:
-
fireproof Alumina silicate ceramic fiber board
-
refractory board:
-
refractory ceramic fiber board
Quick Details
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.5MPa
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.085-0.178
-
Thickness:
-
25/50/75mm
-
Width:
-
600mm
-
Length:
-
1000/900mm
-
Working Temperature:
-
1100C/1260C/1360C/1430C
-
Shrinkage (1800℉, 3h):
-
3%(24h)
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Standard
-
Brand Name:
-
DKJL
-
Product name:
-
High quality ceramic board
-
width:
-
600/1000mm
-
length:
-
1200/1000/900mm
-
Ultimate Strength ( MPa)::
-
0.5
-
Working Temperature::
-
1050C/1260C/1400C
-
Fiber Diameter::
-
3-5micron
-
Thermal Conductivity::
-
0.086-0.108
-
Density::
-
280/300/350/380kg/m3
-
ceramic fiber board:
-
fireproof Alumina silicate ceramic fiber board
-
refractory board:
-
refractory ceramic fiber board
Factory price high quality alumina silicate ceramic fiber insulation board
The ceramic insulation board is rigid product made of different ceramic fiber bulks with excellent chemical stability, organic and inorganic bond by wet method and vacuum forming processing which is applied to many kinds of industries.
They are manufactured over a wide range of grades densities and hardness.
Ceramic insulation board product characteristic:
1
,
Excellent pressure resistance & long service life
2
,
Low thermal storage & low thermal conductivity
3
,
Non-crisp material ,excellent tenacity
4
,
Accurate Dimension & excellent flatness
5
,
easy for cutting & convenience construction
6
,
Excellent wind corrosion resistance
7
,
Continuous production, well—distributed fibers & excellent stability
High alumina insulation board application Range:
Insulating material of back lining for furnaces in the fields of cement and other building materials, petrochemical, metallurgy, ceramics and glass, heat treatment, non-ferrous metals, high temperature reaction and heating equipment.
High alumina insulation board technical Index:
|
product code |
MYTX-PT-04 |
MYTX-BZ-04 |
MYTX-GC-04 |
MYTX-GL-04 |
MYTX-DG-04 |
MYTX-HG-04 |
|
heating permanent linear change(%) |
950 ℃ ×24h≤-4 |
1000 ℃ ×24h≤-4 |
1100 ℃ ×24h≤-4 |
1200 ℃ ×24h≤-4 |
1250 ℃ ×24h≤-4 |
1350 ℃ ×24h≤-4 |
|
heat conductivity(An average of 500 ℃ )W/(m.k) |
|
|
≤0.165 |
|
|
|
|
water conten rate (%) |
|
|
≤-1.5 |
|
|
|
|
Organic material content (%) |
|
|
≤-6 |
|
|
|
|
Theoretical volume density ( kg/m3) kg/m3 |
250-280 |
280-320 |
320 |
320 |
320 |
320 |
|
Al2O3 |
≥40 |
≥43 |
44-47 |
51-53 |
43-45 |
|
|
Al2O3+SiO2 |
≥95 |
≥96 |
≥98 |
≥99 |
≥90 |
|
|
Al2O3+SiO2+ZrO2 |
|
|
|
|
|
99 |
|
ZrO2 |
|
|
|
|
5--7 |
≥15 |
|
Fe2O3 |
<0.5 |
<0.5 |
≤0.3 |
≤0.3 |
≤0.3 |
|
|
Na2O+K2O+Fe2O3 |
<0.9 |
|
|
|
|
|
|
Product specification (mm)(customized according to customer demand) |
Normal length and width, thickness 3mm-100mm |
|||||
|
Packing form |
paper box |
|||||
|
Quality and environment system certification |
ISO9001-2008, ISO14001-2004 |
|||||

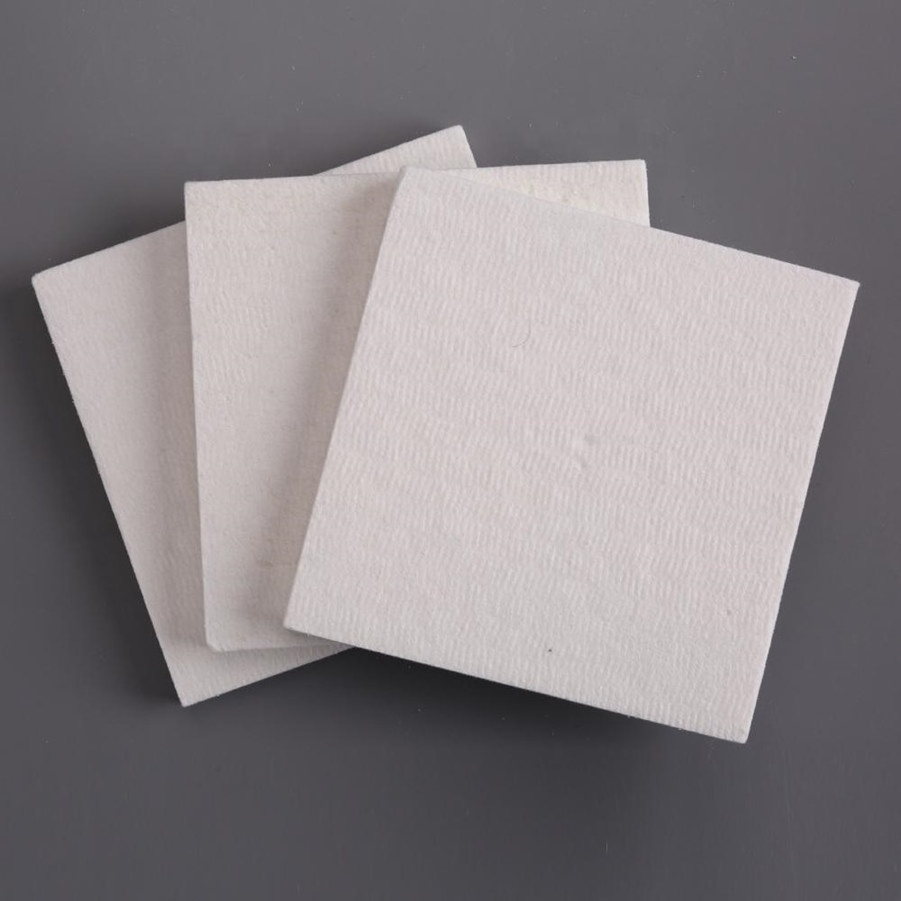

pictures of High alumina insulation board
Shipping of High alumina insulation board : By vessel or by train from any Chinese port,
Samples can be delivered by International express.
package pictures of High alumina insulation board
1.Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.
2.Sample evaluation
High alumina insulation board Sample and trial order are accepted for the quality evaluation
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time .
5.Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
