Quick Details
-
Description:
-
smart switching functions for lights and doors, human presence sensor
-
Model Number:
-
ISE102
-
Place of Origin:
-
Guangdong, China
-
Theory:
-
Algorithms for live detection
-
Output:
-
DC12V-24V / AC110V-265V
Quick Details
-
Use:
-
Home office hotel nursing home smart applications
-
Series:
-
human presence sensor
-
Mounting Type:
-
Recessed Installation
-
Description:
-
smart switching functions for lights and doors, human presence sensor
-
Model Number:
-
ISE102
-
Place of Origin:
-
Guangdong, China
-
Theory:
-
Algorithms for live detection
-
Output:
-
DC12V-24V / AC110V-265V
Specification
|
Input
|
Operating Voltage
|
12-24V DC/ 110V-265V AC
|
|
|
Operating frequency
|
5.8GHz / 24GHz
|
|
|
Standby power consumption
|
<1.0W
|
|
|
lightning surge
|
LN Between two phases 4KV
|
|
Output
|
Operating Mode
|
ON/OFF
|
|
|
Load Type
|
Resistive, Capacitive, LED Load
|
|
|
load power
|
Resistive load:800W; Capacitive load:400w;LED load:400w
|
|
|
Transmit power
|
0.5mW Max
|
|
|
Hold time setting
|
5S-30Min adjustable
|
|
|
Detection range
|
100% / 75% / 50% / 25%
|
|
|
Daylight setting
|
5lux-150lux/Disable
|
|
|
Detection range (radius)
|
Motion Sensing Distance:1-5m
Micro-motion detection distance:1-4m
Breathing detection distance:1-3m
|
|
|
Recommended Installation Height
|
2.5-4M, 3M recommended
|
|
|
Detection Angle
|
90° / 120°
|
|
Environment
|
Operating Temperature/Humidity
|
-25°C... +50C
|
|
|
Storage Temperature/Humidity
|
-40°C... +80°C
|
|
Certification Standard
|
Safety (LVD) standards
|
EN60669-2-1
|
|
|
Electromagnetic Compatibility (EMC) Standard
|
EN300440;EN301489-1
|
|
|
Environmental Requirements
|
EU RoHS compliant
|
|
|
Compliance Certificates
|
CE RED
|
|
Other
|
Input/Output (Terminal/Lead)
|
Shrapnel type lifting terminal block 0.75mm2-1.5mm2
|
|
|
Protection level
|
IP20
|
|
|
Product Category
|
Class II Electrical
|
|
|

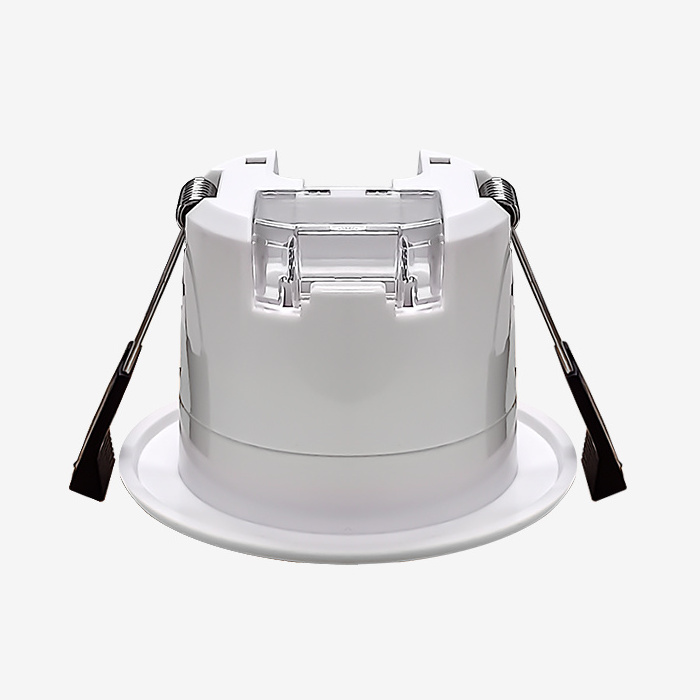

Installation Requirements
|
Embedded standalone installation
|
|
|
Hole Size
|
Diameter 65-75mm
|
|
|
Packaging Requirements
|
White box + flat card + outer box (K=A)
|
|
|
Net Weight
|
150g
|
|
|
Warranty
|
3 Years
|
Functionality
Signal Detection Description: Detect people in normal working life walking, torso movement, head up, turn around and other small movements, as well as breathing signals, and to realize sleep Detection of the presence of the human body in the sleeping state.
* Motion signal: large body movements for sensing triggers.
* Micro-motion signal: the sensor detects in real time and the indicator light is always on.
* Breathing signal: In the absence of micro-motion signal, the sensor continuously detects the breathing signal and the indicator light is always on.
Product Features
1. Algorithm of live body detection, can carry out mixed detection of movement, micro movement and breathing, realizing real presence sensing.
2. Low impedance, high gain antenna design, can effectively resist 5G, WiFi, Blu and other wireless signal interference.
3.
Remote Control Design
, users can configure the sensing parameters according to demand
4 Support embedded independent installation
Please Contact Us For More Details!!!
