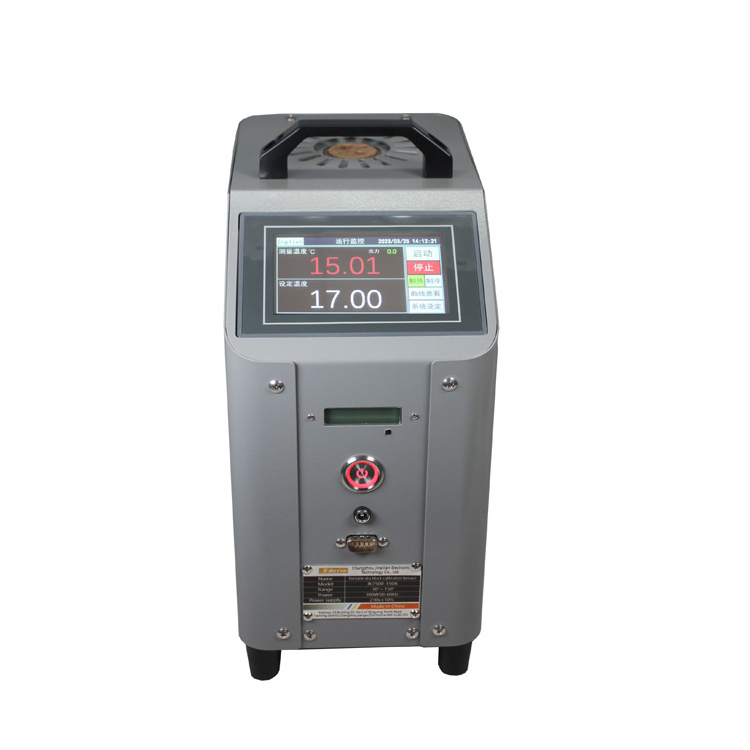

Jinko new JK7500-120D Dry Block Temperature Calibrator low temperature calibrator -20~120 centigrade dry well furnace

Jinko new JK7500-120D Dry Block Temperature Calibrator low temperature calibrator -20~120 centigrade dry well furnace

FOB Reference Price: Get Latest Price

≥1 Sets

US $2142

≥3 Sets

US $2035

≥6 Sets

US $1928

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: JK7500-120D

Product name:: JK7500-120D dry block furnace

Color:: Black Grey

Accuracy:: 0.1'C

Well deep:: 160mm

Resolution:: 0.01

Material:: Aluminum Alloy

Display:: LCD Screen

Measuring range:: -20~120

Weight:: 10kgs

Brand:: JINKO

Quick Details

Warranty:: 2 years

Place of Origin:: Jiangsu, China

Brand Name:: jinko

Model Number:: JK7500-120D

Product name:: JK7500-120D dry block furnace

Color:: Black Grey

Accuracy:: 0.1'C

Well deep:: 160mm

Resolution:: 0.01

Material:: Aluminum Alloy

Display:: LCD Screen

Measuring range:: -20~120

Weight:: 10kgs

Brand:: JINKO

Product Description

Product introduction>>>

Dry well furnace is also known as dry well, dry well furnace, dry measuring furnace, temperature

measuring furnace, temperature calibrator, dry body temperature calibration furnace. The dry well furnace

is a very traditional on-site heat source (temperature field) that is easy to carry, with fast heating and

cooling speed. The dry well furnace adopts a highly stable temperature controller, which is easy to carry

and does not need to place liquid.

Dry calibration furnace reaches the predetermined temperature point and the temperature stabilization

time is 5 to 10 times faster than the constant temperature bath, which can greatly save the time of the

calibration personnel and improve the temperature verification speed. The portability of the dry calibration

furnace allows it to perform calibration work on site, With built-in lithium battery power supply, it can work

for 6-8 hours , thereby solving the difficulty in transportation and movement of the thermostatic bath.

The soaking block adopts the alloy material with good thermal conductivity. It is technically synchronized

with advanced technologies at home and abroad, and is at an advanced level in terms of insertion depth,

horizontal temperature field, and vertical temperature field. Used within the required temperature range, it

is widely used in pharmaceuticals (GMP wet heat sterilization, dry heat sterilization), machinery, ships,

chemicals, biological products, power plant substations, steel plants, measurement testing, scientific

research, etc., of which these Industries that require on-site temperature calibration.

Performance characteristics>>>

- High-performance intelligent thermostat with LCD touch screen.

- Large -capacity lithium battery power supply, solve the problem of no power supply at the site.

- Wide temperature range, to meet most process applications.

- JK7500-120D: -20°C~120°C

- Excellent display accuracy: 0.01 level.

- The temperature block is made of alloy material with good thermal conductivity.

- Small size, fast heating, stable temperature control, no pollution, easy to carry, widely used in

machinery, ship, building, chemical, food, power, pharmaceutical and other industries.

- Multi-aperture temperature measurement configuration to meet various needs.

- Synchronize advanced technology at home and abroad.

Technicial Parameter>>>

Model	JK7500- 120D
Temperature Range	-20 °C~ 12 0°C
Cold source	chilling plate
Display Accuracy	± 0.1 °C ( Full temperature range )
Stability	± 0.1 °C
vertical temperature field	Within 30mm from the bottom of the h ole , ≤±0.2℃
Horizontal temperature field	± 0.05 °C ( Full temperature range )
Well deep	1 6 0mm
Diameter of uniform temperature block	32mm
Calibration hole diameter	Standard : 4 mm , 6 mm , 8 mm , 10 mm( can be customized )
Calibration quantity	4 (can be customized)
Resolution	0.01 °C
Display	LCD ℃ or ℉
Control way	Touch screen, automatically adjust power and temperature difference
Heating time	20 °C→ 10 0°C : 20min , 20 °C→ 12 0°C : 3 0min
Cooling time	2 0 °C→ 0 °C : 5min , 2 0 °C→10°C : 8 min , 2 0 °C→ -25 °C : 20 min
Battery endurance	Keep -20 ℃ refrigeration work 220min Keep 100 ℃ heating work 240min
Dimension	H290 * W 1 5 5* D265 mm
Weight	10kgs
Power supply	Built-in lithium battery
Calibration point	-20°C, 0°C, 20°C , 50°C , 100°C , 1 2 0°C
Work condition	15°C~60°C, 80%RH
Accessories	Temperature block (aperture 10 / 8 / 6/4 mm), Charger , high temperature cotton
