Quick Details
-
Roof Cover:
-
850g/sqm double PVC-coated polyester textile
-
Wind Resistance:
-
80km/h-100kn/h
-
Certificates:
-
CFMTUVISO9001:2008
-
Side Wall:
-
PVC wallsglass wallABS wallsandwich panel walletc.
-
Application:
-
exhibition/party/event/trade show/wedding/warehous
-
Span Width:
-
3m-10m
-
Eave Connection:
-
Hot-dip galvanized twin plate;expansion bolts to f
Quick Details
-
Place of Origin:
-
Jiangsu, China, Guangdong China
-
Tent Frame:
-
Hard pressed extruded aluminium alloy 6061/T6
-
Ground Situation:
-
Grasslandearth landasphalt groundcement ground
-
Roof Cover:
-
850g/sqm double PVC-coated polyester textile
-
Wind Resistance:
-
80km/h-100kn/h
-
Certificates:
-
CFMTUVISO9001:2008
-
Side Wall:
-
PVC wallsglass wallABS wallsandwich panel walletc.
-
Application:
-
exhibition/party/event/trade show/wedding/warehous
-
Span Width:
-
3m-10m
-
Eave Connection:
-
Hot-dip galvanized twin plate;expansion bolts to f
|
Frame
|
4 channels, hard pressed extruded
aluminium alloy
6061/T6.
(Surface anodized finish. Anti rust.)
|
||||||
|
Roof Cover
|
Opaque(or transparent), water proof, 850g/m². Flame retardant.
PVC-coated Polyester
.
|
||||||
|
Side Wall
|
1) 650g/m² PVC-coated Polyester
2) glass wall
3) ABS wall |
||||||
|
Wind Resistance
|
80~140km/h
|
||||||
|
Snow Load
|
25kg/sqm
|
||||||
|
Fixing Solution
|
Ground anchor, expandable bolt, weight plate, etc.
|
||||||
|
Service Life
|
More than
15 years
|
||||||
|
Applicable temperature range
|
-30 degree Celsius ~ 70 degree Celsius
|
||||||
|
Ground Situation
|
Grassland,earth land,asphalt,cement ground,marble,etc
|
||||||
|
Connectors
|
Hot-dip galvanized twin plate;expansion bolts to fix tent
|
||||||
|

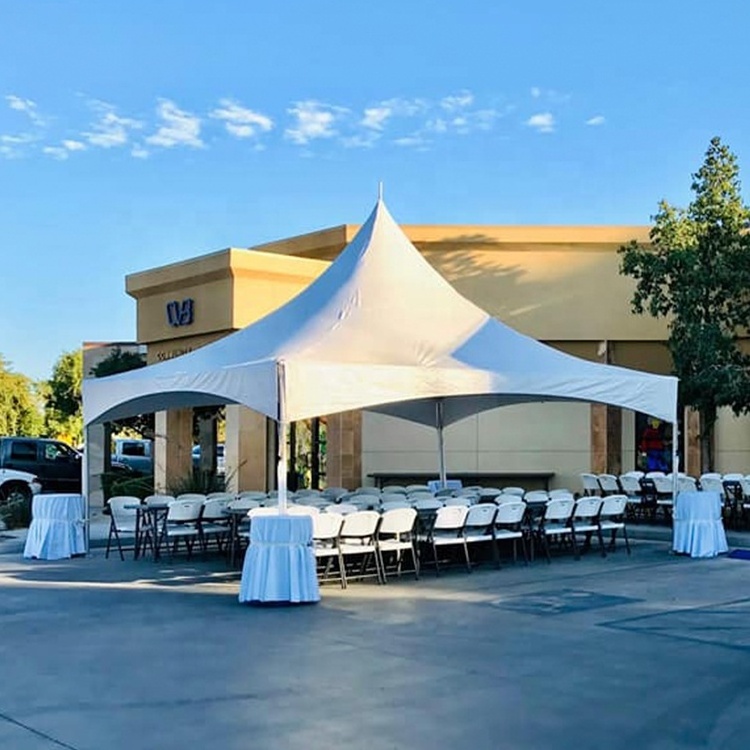

PAGODA TENT
|
||||||
|
Width
|
Eave Height
|
Ridge Height
|
Main Profile
|
|||
|
3m
|
2.5m
|
4.3m
|
62*46*2mm
|
|||
|
4m
|
2.5m
|
4.8m
|
62*46*2mm
|
|||
|
5m
|
2.5m
|
5.43m
|
85*48*3mm
|
|||
|
6m
|
2.5m
|
5.92m
|
85*48*3mm
|
|||
|
8m
|
2.6m
|
5.36m
|
100*48*3mm
|
|||
|
10m
|
2.6m
|
6.38m
|
100*48*3mm
|
|||
|
Pagoda tent can be used as a single unit or combined by a rain gutter to make a
larger space or a special structure style. Customized size or shape is available.
|
||||||
