- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DELONGTOP
-
Model Number:
-
DL- 2450
-
Battery Size:
-
256x165x210mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
10.5Kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Product name:
-
24v 50ah LiFePo4 battery
-
Nominal Voltage:
-
24V
-
Nominal Capacity:
-
50Ah
-
Charge Voltage:
-
29.2V
-
Charge Current:
-
Max 25A
-
Discharge current:
-
50A~100A
-
cell:
-
3.2V 50Ah pouch lifepo4 cell
-
Cycle life:
-
3000 Times
-
Dimension:
-
256x165x210mm
-
Configuration:
-
8S1P
Quick Details
-
Storage Type:
-
25
-
Anode Material:
-
LCO
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
DELONGTOP
-
Model Number:
-
DL- 2450
-
Battery Size:
-
256x165x210mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
10.5Kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Product name:
-
24v 50ah LiFePo4 battery
-
Nominal Voltage:
-
24V
-
Nominal Capacity:
-
50Ah
-
Charge Voltage:
-
29.2V
-
Charge Current:
-
Max 25A
-
Discharge current:
-
50A~100A
-
cell:
-
3.2V 50Ah pouch lifepo4 cell
-
Cycle life:
-
3000 Times
-
Dimension:
-
256x165x210mm
-
Configuration:
-
8S1P
Product Description

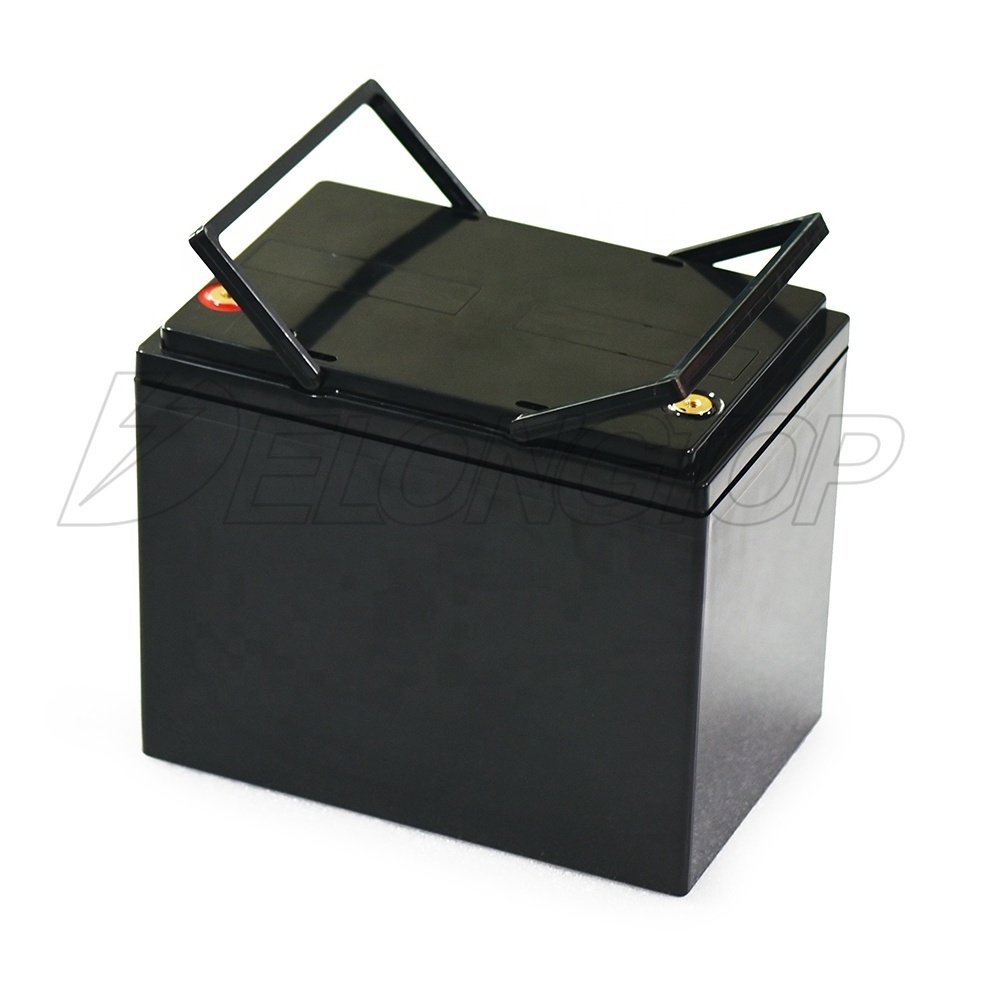

Rechargeable 24V 50Ah LiFePo4 battery for wheelchairs t
Characteristics of 24V 50ah lifepo4 batteries:
Long cycle life: cycle life is 5 times higher than lead-acid battery, better reduce the comprehensive use cost
Light weight: about 40% lighter than lead-acid batteries, is the best alternative to lead-acid batteries
Long cycle life: cycle life is 5 times higher than lead-acid battery, better reduce the comprehensive use cost
Light weight: about 40% lighter than lead-acid batteries, is the best alternative to lead-acid batteries
Lifepo4 is mainly used in power systems, such as electric vehicles, military aerospace, power tools and UPS. Compared with other lithium ion batteries, lifepo4 batteries have the following five advantages:
1. Stable structure and higher security.
2. The LiFePo4 battery has a cycle life of at least 3000 times, and its capacity can be maintained at more than 80%.
3. The use of environmentally friendly materials is environmentally friendly.
4. Support fast charging, max. charging current can be 25A .
5. A wider operating temperature range, which can work normally from -10 ° C to + 60 ° C
Why choose our products
,
mainly depends on the quality and craftsmanship
↓
↓
↓
↓
↓
Batteries Cell .
Using Class A lithium iron phosphate polymer battery
safety protection .
Built-in safety protection circuit and BMS system
Finished product .
Assemble the finished product through multiple testing procedures and fixing
Specification
|
Model
|
DL-2450 8S1P
|
|
|
|
Nominal Voltage
|
24V
|
|
|
|
Nominal Capacity
|
50Ah
|
|
|
|
End of charge Voltage
|
29.2V
|
|
|
|
End of charge Current
|
100mA
|
|
|
|
End of discharge Voltage
|
9.2V
|
|
|
|
Charge Method
|
0.2C (0.5A) CC/CV
|
|
|
|
Max.Continuous charge current
|
25A
|
|
|
|
Nominal Discharge Current
|
50A
|
|
|
|
Max. Pulse Discharge Current
|
100A/10S
|
|
|
|
Weight
|
10Kg
|
|
|
|
Size
|
L 256mm * W 165mm * H 210mm
|
|
|
|
Operating Temp.
|
Charge
|
0~45℃
|
|
|
|
Discharge
|
-10~55℃
|
|
|
Storage Temp.(60-80% SOC Storage)
|
-10~45℃
|
|
|
|
Capacity@1C rate 0.2C
|
≥100Ah
|
|
|
|
Cycle Life
|
3000 times(Cycle @RT, 1C rate,85%D\OD)
|
|
|
Application
Customers Feedback
1. Safety: safest Li-Ion battery, CE ROSH approved, built in PCM/PCB, none fire or explosive
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Portable design
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Services
1).Professional lithium ion battery pack for over ten years,and have our own factory.
2).Strong R&D team to support.
3).Offer OEM service for customer's order.
4).Quick reply and action.
5).Competitive price, good sale and after-sales service.
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, 80% capacity remain after 500 times deep cycle.
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Portable design
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Services
1).Professional lithium ion battery pack for over ten years,and have our own factory.
2).Strong R&D team to support.
3).Offer OEM service for customer's order.
4).Quick reply and action.
5).Competitive price, good sale and after-sales service.
OEM / ODM customized lithium battery pack
1) We are battery manufacturer , we available from 12v~96v, 7Ah~200Ah.
2) Our hot selling lifepo4 battery is 12V 40Ah , 12V 100Ah , 12V 150Ah, 12V 200Ah , 24V 100Ah , 48V 100Ah and 96V 100Ah , use for solar system or RV / Camper / electric boat .....
3 ) All our battery pack with BMS built-in .
Packing & Delivery
Each of our shipped products will be carefully packaged to protect the products from being damaged during transportation.
