Quick Details
-
Life time:
-
5000h on average
-
High power density:
-
up to 200w/cm
-
Power:
-
1500W
-
Single tube:
-
720-1100mm
-
Overall length:
-
10-17mm
-
End Cap:
-
Ceramic or metal
-
Wave Length:
-
Short Wav
-
Product name:
-
Car Shortwave IR infrared heating lamp prices for paint drying
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
xinguang
-
Model Number:
-
HYX-hwx
-
Life time:
-
5000h on average
-
High power density:
-
up to 200w/cm
-
Power:
-
1500W
-
Single tube:
-
720-1100mm
-
Overall length:
-
10-17mm
-
End Cap:
-
Ceramic or metal
-
Wave Length:
-
Short Wav
-
Product name:
-
Car Shortwave IR infrared heating lamp prices for paint drying
1500W Factory wholesale Shortwave car IR infrared heating lamp prices for paint drying
Tips: The price may not the final price for your order.
Please contact us for the best price now!

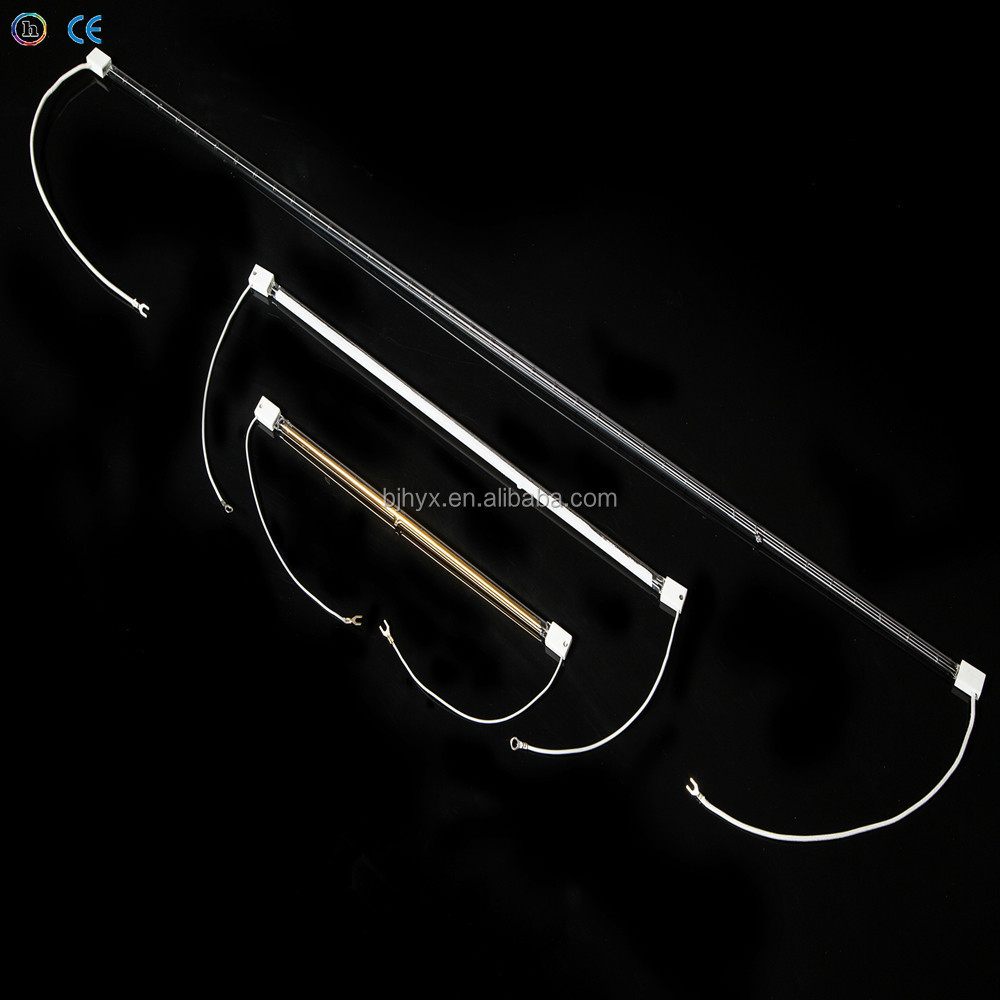

Infrared (IR) lamps:
Near infrared lamps IR-A (780-1400nm,1400-3000nm), the characteristic of which is fast heating up, high efficiency, and the convenient control in the heating process, such lamp tubes are divided into single-pipe form, double pipe form and straight pipe form.
To improve thermal efficiency and save energy, the different angles of the single and double -pipe infrared lamp can be coated with high performance and durable gold-coated reflective layer to achieve above 96% emission efficiency and extend the service life of the lamp.
| IR Emitter | NIR Infra Short Wave | Short Wave | Medium Wave | Fast Response |
| Single Tube | Twin Tube | Twin Tube | Medium Wave | |
| Twin Tube | ||||
| Power | 250-12000W | <200w/cm | 18 20 25w/cm | 80w/cm |
| Max. Heated Length | Min.50 / Max.1000mm | 6400/2400w | 1500 2000 6500mm | 6400/2390mm |
| Tube Cross Section | 8-14mm | 34x14 / 23x11mm | 18x8 23x11 34x14mm | 34x14 / 23x11mm |
| Filament Temp.°C | 1100-2600 | 1850-2400 | 800-950 | <1850 |
| Peak Wavelength | 1-2um | 1.0-1.4um | 2.4-2.7um | >1.4um |
| Reflector | Gold or white | Gold or white | Gold or white | Gold or white |
| Max. Power | --- | 200kw/m2 | 60kw/m2 | 150kw/m2 |
| Response Time | 1s | 1s | 1-4min | 1-2s |
*special size or item on request
*OEM available
