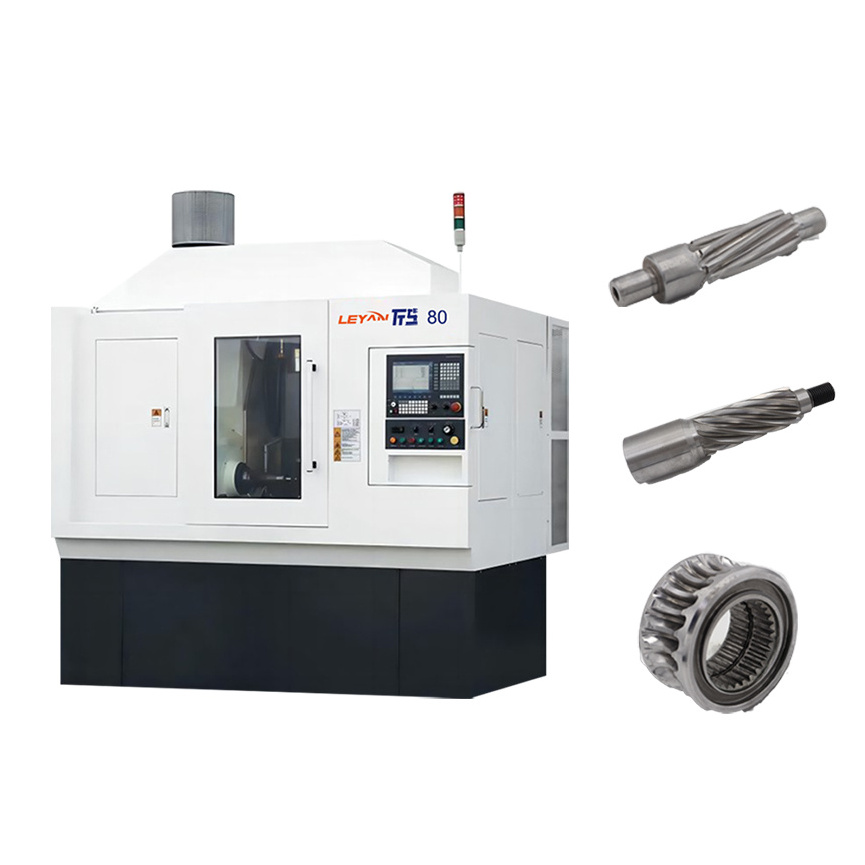

with a highly rigid cast iron base, a workpiece spindle drive system with a backlash eliminator, a hobbing frame with a locking mechanism and a hobbing spindle with a direct servo motor connection. YB80 are of high rigidity, high workpiece spindle and hobbing spindle speed used for high speed, high efficiency and high precision processing.
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
5000 r.p.m
-
Width of bed (mm):
-
53 mm
-
Spindle Motor Power(kW):
-
5.2KW(30min/cont)
-
Travel (X Axis)(mm):
-
85 mm
-
Travel (Z Axis)(mm):
-
220 mm
-
Place of Origin:
-
Zhejiang, China
-
Dimension(L*W*H):
-
2400x2000x2450mm
-
Brand Name:
-
LeyanTTS
-
Model Number:
-
YB80
-
Weight (KG):
-
5000
-
The largest processing module:
-
3mm
-
Maximum processing length:
-
220mm
-
Processing gear range:
-
3--999 tooth
-
Hob rotating Angle:
-
±45°
-
The most DaGunDao diameter:
-
80mm
-
The most DaGunDao length:
-
100mm
-
The largest knife stroke:
-
100mm
-
The highest speed of workpiece spindle:
-
500 r/min
-
The highest speed of hob spindle:
-
5000 r/min
-
Numerical control system:
-
Rexrot IndraMotionMTX micro
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
Other
-
Year:
-
least date
-
Max. Spindle Speed (r.p.m):
-
5000 r.p.m
-
Width of bed (mm):
-
53 mm
-
Spindle Motor Power(kW):
-
5.2KW(30min/cont)
-
Travel (X Axis)(mm):
-
85 mm
-
Travel (Z Axis)(mm):
-
220 mm
-
Place of Origin:
-
Zhejiang, China
-
Dimension(L*W*H):
-
2400x2000x2450mm
-
Brand Name:
-
LeyanTTS
-
Model Number:
-
YB80
-
Weight (KG):
-
5000
-
The largest processing module:
-
3mm
-
Maximum processing length:
-
220mm
-
Processing gear range:
-
3--999 tooth
-
Hob rotating Angle:
-
±45°
-
The most DaGunDao diameter:
-
80mm
-
The most DaGunDao length:
-
100mm
-
The largest knife stroke:
-
100mm
-
The highest speed of workpiece spindle:
-
500 r/min
-
The highest speed of hob spindle:
-
5000 r/min
-
Numerical control system:
-
Rexrot IndraMotionMTX micro
Product Description
|
Technical Parameter
|
SPECIFICATIONS
|
YB80
|
|
|
The largest machining diameter
|
|
Φ80 mm（Can be extended to（D100 ）
|
|
|
The largest processing module
|
|
3mm
|
|
|
Maximum processing length
|
|
220mm
|
|
|
Processing gear range
|
|
3〜999 tooth
|
|
|
Hob rotating Angle
|
|
±45°
|
|
|
The most DaGunDao diameter
|
|
80mm
|
|
|
The most DaGunDao length
|
|
100mm
|
|
|
The largest knife stroke
|
|
100mm
|
|
|
Hob rod diameter
|
|
Φ13mm（or（Φ10、Φ16、Φ22mm）
|
|
|
The workpiece spindle
|
The highest speed
|
500 r/min
|
|
|
|
The rated torque
|
17 N. m
|
|
|
Hob spindle
|
The highest speed
|
5000 r/min
|
|
|
|
Rated power
|
5.2Kw
|
|
|
|
The rated torque
|
50 N.m
|
|
|
The X axis servo motor rated torque
|
|
8 N.m
|
|
|
The Y axis servo motor rated torque
|
|
2.7 N.m
|
|
|
The Z axis servo motor rated torque
|
|
8 N.m
|
|
|
The A axis servo motor rated torque
|
|
8 N.m
|
|
|
Numerical control system
|
|
Rexrot IndraMotionMTX micro
|
|
|
The spindle motor, servo motor
|
|
Rexroth
|
|
|
Machine tool machining accuracy
|
|
Grade 6 accuracyGB/T10095-2001
|
|
|
Host machine weight
|
|
5000Kg
|
|
|
Machine tool overall dimensions (length x width x height)
|
|
2400x2000x2450mm
|
|
The CNC system, servo motor and servo controller of YB80 are all from Rexroth, famous brand in Germany’s manufacturing.
Detailed Images
*
Spindle:
Operation panel
Rexroth IndraMotionMTX micro
YB80 keeps as a lathe machine specially developed for the minute diameter gears processed efficiently, mainly used for machining straight cylindrical and helical gears with module m ≤ 3mm and diameter less than 80 (the processing diameter can be extended to 100mm).
