Quick Details
-
Brand Name:
-
EDUP
-
Model Number:
-
EP-D523
-
Place of Origin:
-
Guangdong, China
-
type:
-
wireless wifi router
-
CPU:
-
ZX297520V3
-
color:
-
white
-
share:
-
up to 10 users
-
standard:
-
IEEE802.11b/g/n
-
package:
-
color box
-
Language:
-
Multi language
-
Battery:
-
2100mAh
-
Peak Rate:
-
DL:150Mbps Up L: 50Mbps Cat4
-
Operation:
-
Plug&Play, no need CD-ROM,No Driver Installation
-
Certification:
-
CE.FCC.ROHS
Quick Details
-
Type:
-
Wireless
-
Transmission Rate:
-
150M
-
Interface Type:
-
usb
-
Brand Name:
-
EDUP
-
Model Number:
-
EP-D523
-
Place of Origin:
-
Guangdong, China
-
type:
-
wireless wifi router
-
CPU:
-
ZX297520V3
-
color:
-
white
-
share:
-
up to 10 users
-
standard:
-
IEEE802.11b/g/n
-
package:
-
color box
-
Language:
-
Multi language
-
Battery:
-
2100mAh
-
Peak Rate:
-
DL:150Mbps Up L: 50Mbps Cat4
-
Operation:
-
Plug&Play, no need CD-ROM,No Driver Installation
-
Certification:
-
CE.FCC.ROHS

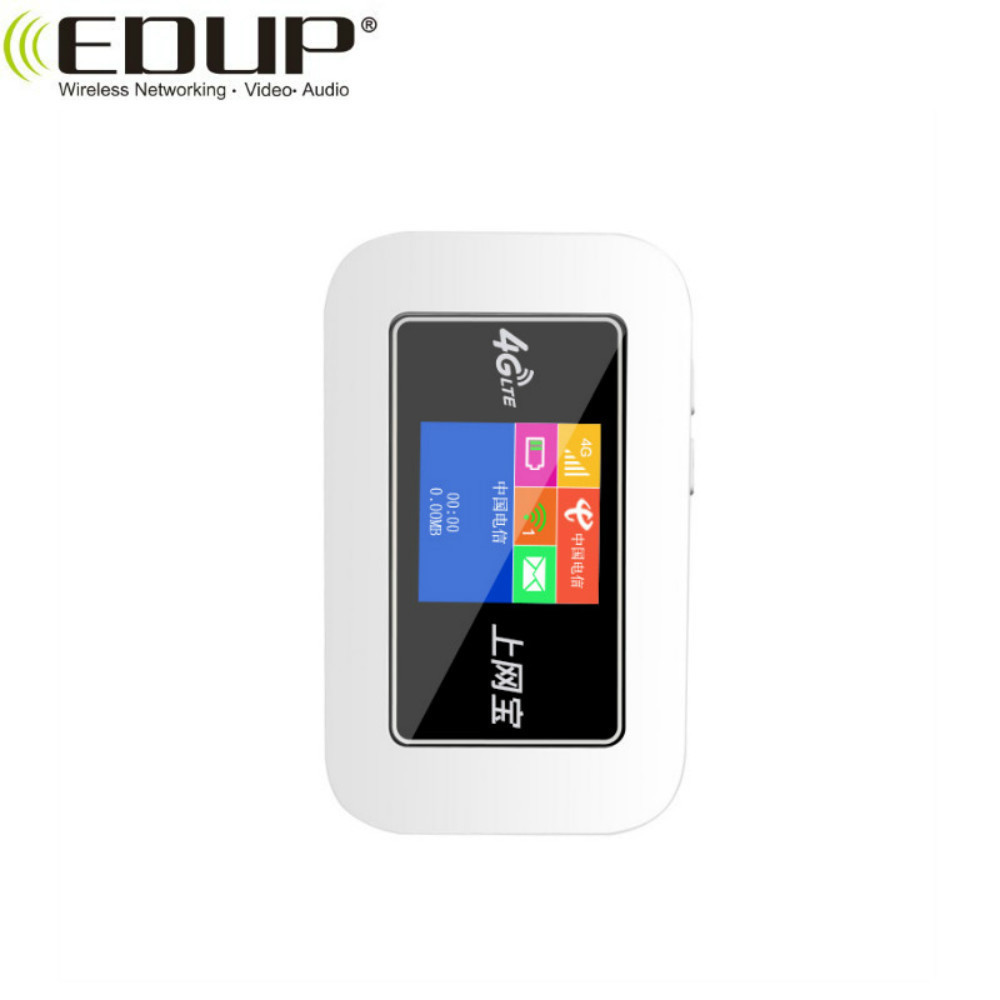

300Mbps 4G LTE ZX297520V3 Mini Color Screen WiFi Router With SIM Card Slot
Model: EP-D523
wireless wifi router mifi
Global Roaming 3G 4G LTE Wi-Fi Universal router gives you high-speed access to the Internet wherever you are and lets you share it on the go. The built-in 4G/3G/2G antennas provides a reliable connection to your 4G/3G/2G service provider. The Harvilon 4G Pocket WiFi provides high-speed Wireless N coverage to give high speed wireless access to everybody whether you are with colleagues on a business trip or traveling with friends and family.
Specifications of wireless wifi adapter
1. pocket wifi router,can support 4G/3G/2G at the same time
2. Our defauploadt frequecy are B1/B3 (B2/4/5/B7/B8/12/17/20/28A/28B Optional) , products can be used most of country
frequency band also can be customized
3. use Marvell 88MP1802 chipest, good quality, your good choice.
4. DL/ upload 150Mbps/50Mbps.
5. support 10 end users at the same time.
6. support factory price, OEM/ODM is available.
| Process/ID | PC+ABS | |
| Hardware information Cat4 ZX297520V3 | Remarks | |
| The processor | ZX297520V3 | |
| spectrum |
FDD LTE B1/B3/B5/B8
TDD LTE B38/B39/B40/B41 TD-SCDMA B34/B39 WCDMA B1/B5/B8 |
B4/B7/B20/B28ab |
| Peak rate |
LTE download:100.8Mbps, upload:51.0Mbps (Category 4)
TD-SCDMA download:4.2Mbps, upload: 2.2Mbps WCDMA download:42Mbps, upload: 5.76Mbps |
|
| LED/LCD | LED/LCD | |
| The keys |
The power button
The WPS switch button Restore the factory button (pinhole) |
|
| T card | Upward compatible to 32 gb | |
| WIFI | Support 802.11 b/g/n | |
| The battery | 2100 mah lithium battery | |
| interface |
MicroUSB interface
Standard USIM interface MicroSD interface |
|
| The antenna | built-in | |
| The adapter |
The input voltage:100V~240V,50Hz~60Hz
The output voltage:5V DC±10% The output current:1A |
|
| Charging interface | Micro 5pin | |
| Working temperature | -10°C to 60°C | |
| Working humidity | 5% - 65% | |
| Storage temperature | -30°C to 80°C | |
| Store humidity | 5% to 95% | |
| Software information | ||
| The operating system | Win7, Windows XP, Vista, Mac OS | |
| language | Chinese/English | Support muploadtiple languages |
| Shared | Up to 10 users | |
| Set up the | support | |
| SMS | Support mobile and Unicom conventional card receiving and sending, telecommunication cards do not support | |
| The phone book | support | |
| APN Settings | support | |
| WIFI Settings | support | |
| Device Settings | support | |
| Routing setting | support | |
| Firewall Settings | support | |
| certification | Meet customer requirements | |
| Other information | ||
| size | 59x98x15.5 mm | 98mmX58.5mmX15mm(For reference only) |
| The weight of the | 86.04g | |
| The standby time | Can reach more than 50 hours | uploadtimately decided by the battery |
| Work hours | Can reach more than 6 hours (Only connect to one device) | uploadtimately decided by the battery |
