Quick Details
-
Oil capacity:
-
1.65L
-
Packing Size:
-
51*52*57cm
-
BORE*STROKE:
-
86*72mm
-
Fuel tank capacity:
-
5.5L
-
crankshaft:
-
Keyway/taper/thread shaft optional
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
D400/E
-
Displacement:
-
418cc
-
Oil capacity:
-
1.65L
-
Packing Size:
-
51*52*57cm
-
BORE*STROKE:
-
86*72mm
-
Fuel tank capacity:
-
5.5L
-
crankshaft:
-
Keyway/taper/thread shaft optional
Product details

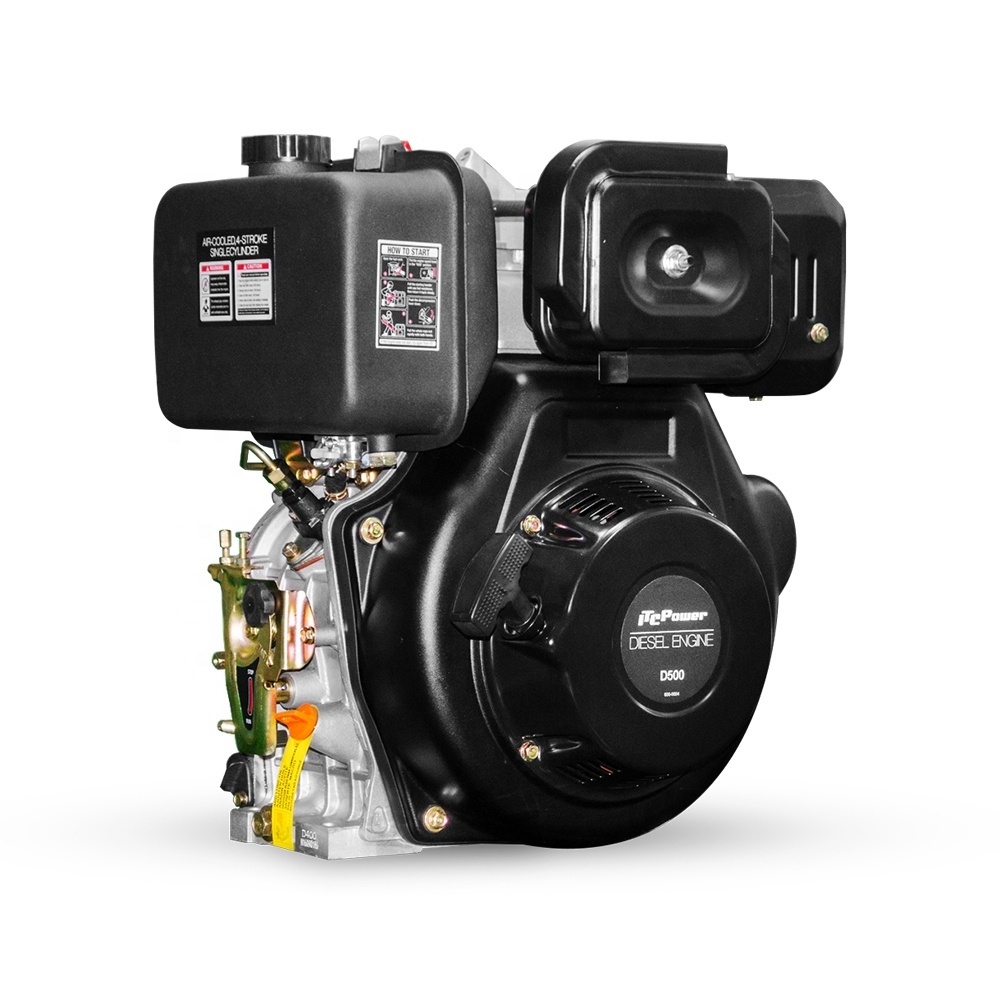

Air-cooled 4 Stroke single cylinder diesel engine
| Engine Model | D250/E | D300/E | D400/E |
| Rated speed (rpm) | 3000 / 3600 | 3000 / 3600 | 3000 / 3600 |
| Rated power [kW(Hp)] | 3.3(4.5) / 3.6(4.9) | 3.68(5) / 4.0(5.5) | 5.7(7.8) / 6.3(8.6) |
| Max. power [kW(Hp)] | 3.6(4.9) / 4.0(5.5) | 4.0(5.5) / 4.4(6) | 6.3(8.6) / 7.0(9.5) |
| Engine Model | D450/E | D500E | D670E |
| Rated speed (rpm) | 3000 / 3600 | 3000 / 3600 | 3000 / 3600 |
| Rated power [kW(Hp)] | 6.6(9) / 7.3(10) | 7.35(10) / 8.0(11) | 9.6(13.1) / 10.5 (14.4) |
| Max. power [kW(Hp)] | 7.3(10) / 8.0(11) | 8.0(11) / 8.8(12) | 10.5(14.4) / 11.6(15.9) |
Packaging & Shipping
| Engine Model | D250/E | D300/E | D400/E |
| Weight [kG] Recoil | 28 | 33 | 48 |
| Weight [kG] Elec. | 32 | 38 | 53 |
| Packing Dimension [cm] | 42 × 38 × 46 | 49 × 47 ×53 | 51.5 × 480 × 58 |
| Loading 20ft/40ft/40hq(pcs) | 420/880/880 | 240/600/600 | 192/400/400 |
| Engine Model | D450/E | D500/E | D670/E |
| Weight [kG] Recoil | 50 | 52 | 65 |
| Weight [kG] Elec. | 55 | 57 | 67 |
| Packing Dimension [cm] | 51.5 × 480 × 58 | 51.5 × 480 × 58 | 52.5 × 49 ×59.5 |
| Loading 20ft/40ft/40hq(pcs) | 192/400/400 | 192/400/400 | 192/384/384 |
