Quick Details
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5kw
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Overseas third-party support available
-
Power(W):
-
1.5kw
-
Weight:
-
760 kg
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THL
-
Voltage:
-
220V/380V
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5kw
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Overseas third-party support available
-
Power(W):
-
1.5kw
-
Weight:
-
760 kg
-
Certification:
-
ISO9001

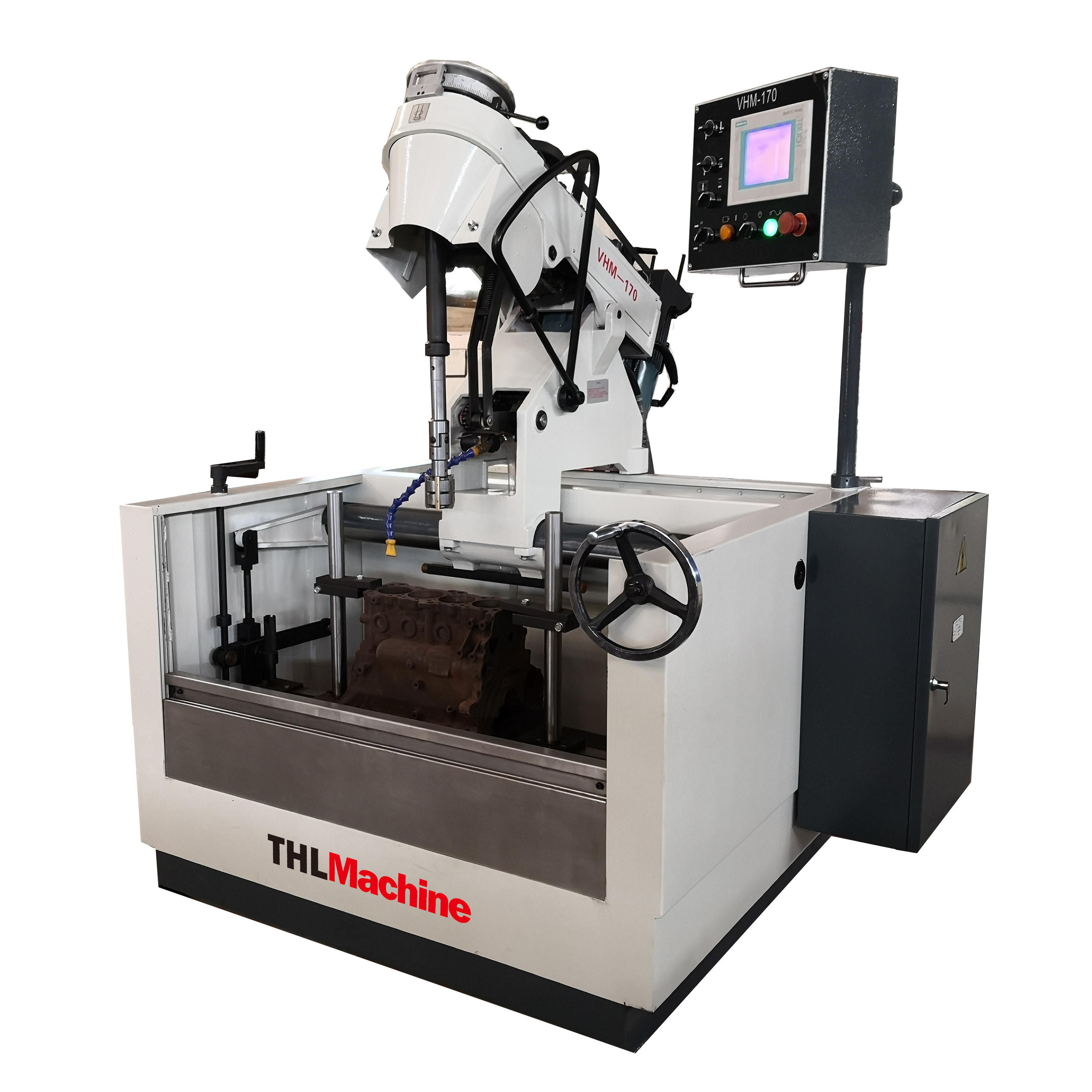

Automatic Cylinder Honing Machine
VHM170/analogue of sunnen sv10
| No. | Item | Unit | Parameters |
| 1 | Range of honing hole diameter | mm | 62~178 |
| 2 | Max. honing hole depth | mm | 300 |
| 3 | Workpiece size (L*W*H) | mm | 1168*558*673 |
| 4 | Workpiece weight | kg | 680 (incl. the |
| fixture) | |||
| 5 | Spindle motor | kw | 2.2 |
| 6 | Spindle speed | rpm | 90~350 stepless |
| adjustable | |||
| 7 | Stroke motor | kw | 0.75 |
| 8 | Stroke rate | Hz | 40~80 stepless |
| adjustable | |||
| 9 | Stroke length range | mm | 0~240 |
| 10 | Cooling pump motor | kw | 0.12 |
| 11 | Coolant capacity volume | dm3 | 210 |
| 12 | Floor area (L*W*H) | mm | 2318*1835*2197 |
| 13 | Machine tool net weight | kg | 860 |
| 14 | Machine tool weight (with coolant) | kg | 1100 |
| 15 | Ground load | kg/m2 | 800 |
| 16 | Gross weight of machine tool (with package, without coolant) | kg | 1100 |
