Quick Details
-
Transmission system:
-
Eccentric linkage
-
Application:
-
Suitable for extracting gold, tin, tungsten, copper, chrome etc
-
Feeding size:
-
0.074-2mm
-
Installation:
-
Send video, CAD drawing, and/or dispatch engineer
-
Color:
-
Customized
-
Flowchart drawing:
-
Available
-
Aftersale Service:
-
Lifelong
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Sample Test:
-
Available
-
Shaking deck material:
-
Glass fiber reinforced plastic
-
Transmission system:
-
Eccentric linkage
-
Application:
-
Suitable for extracting gold, tin, tungsten, copper, chrome etc
-
Feeding size:
-
0.074-2mm
-
Installation:
-
Send video, CAD drawing, and/or dispatch engineer
-
Color:
-
Customized
-
Flowchart drawing:
-
Available
-
Aftersale Service:
-
Lifelong

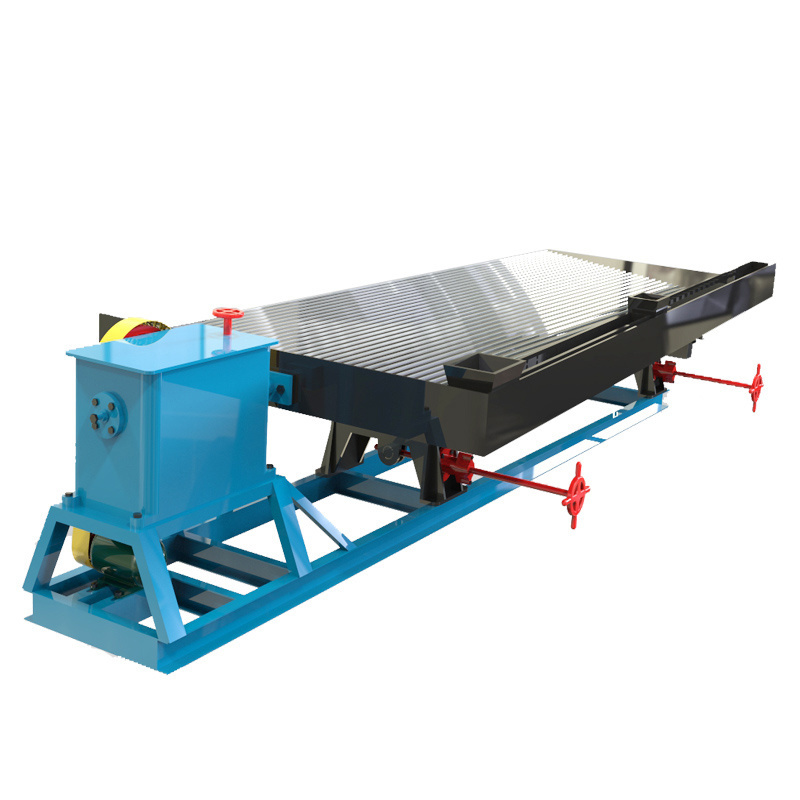

Gold Mining Gold Extractor is one of the main equipments of gravity concentration. Also widely used in separation for Gold, Silver, Tin , Columbium, Tantalum, Titanium, Barium, Tungsten, Iron , Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum , etc. Gold Mining Gold Extractor's effective recycling size scope is 2-0.22 millimeters.
There are 2 different LY4500 Gold Mining Gold Extractor above.
Upper one is #28 Gold Mining Gold Extractor. Suitable for difficult ground .
Below one is #10 Gold Mining Gold Extractor. Cheaper, lighter, suitable for flat ground .
Rock ore should be crushed first. Then go to ball mill& spiral Classifier . With its size small enough, gold concentrator could be used to collect valuble ore. Gold Mining Gold Extractor is always the last step to collect the rare ore, like gold and others.
1. Several models of Gold Mining Gold Extractor
2. Specification of Gold Mining Gold Extractor
|
Model Performance |
LS 4500 |
LY 3000 |
LY 2100 |
LY 1100 |
|
|
Feeding Range |
Coarse Ore ( mm ) |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
|
Fine Sand Ore ( mm ) |
0.074.0.5 |
0.074.0.5 |
0.074.0.5 |
0.074.0.5 |
|
|
Slime Ore ( mm ) |
-0.074 |
-0.1 |
-0.074 |
-0.074 |
|
|
Feeding Density ( % ) |
10-30 |
10-30 |
10-30 |
10-30 |
|
|
Capacity |
Sand ore (t/h) |
0.5-1.8 |
0.7-1.5 |
0.4-0.8 |
0.1-0.2 |
|
Water Consumption (t/h) |
0.4-0.7 |
0.3-1.5 |
0.2-1 |
0.1-0.5 |
|
|
Motor |
Power ( Kw ) |
1.1 |
1.1 |
1.1 |
0.55 |
|
Size |
L*W*H(mm) |
5600 * 1850 * 860 |
4075 * 1320 * 780 |
3040 * 1050 * 1020 |
1530 * 500 * 800 |
|
Table Weight ( kg ) |
750 |
650 |
400 |
150 |
|
3. How to select the right decks for Gold Mining Gold Extractor?
Several decks are available.
Coarse ore: 0.5-2mm (46 slots)
Fine Sand: 0.074-0.5mm (60 slots)
Slim Sand: 0.05-0.074mm (136 slots)
Common: 120 slots
4. Applications of Gold Mining Gold Extractor
This case is taken in Australia. The general process line is like this:
Jaw crusher-hammer mill- Gold Mining Gold Extractor.
This process line is for rock gold.
This case is taken in Sudan, also for gold.
5. Structure o f Gold Mining Gold Extractor
6. Other kinds of Gold Mining Gold Extractor
There are 3-deck Gold Mining Gold Extractor and 2-deck Gold Mining Gold Extractor. Based on its structure, single layer one is what we suggest you to take.
Other Series of mining machines
Those are shaking table, jig, centrifugal concentrator, spiral chute.
FCL of Gold Mining Gold Extractor
LCL of Gold Mining Gold Extractor
