Quick Details
-
Voltage:
-
380V/415V/440V/600V/660V,etc
-
Dimension(L*W*H):
-
1560*980*1000mm
-
Weight:
-
170kg
-
Air capacity:
-
0.67m3/min
-
Product Name:
-
Piston Air Compressor 80L air tank for grain conveyor
-
Model:
-
W-0.67/8
-
Compressed medium:
-
air gas
-
F.A.D (Nm3/min):
-
0.67 m3/min
-
Power (KW):
-
5.5KW 7.5HP
-
Working Pressure ( Mpa):
-
8bar
-
Cooling method:
-
Air Cooling
-
Usage:
-
for filling station
-
Motor protection level:
-
IP 54 IP55
-
Drive method:
-
belt driven with belt guard
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, Philippines, Indonesia, Pakistan, Russia, Thailand, Malaysia, Argentina, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Keepwin
-
Model Number:
-
W-0.67/8, W-0.48/8, Z-0.42/12.5
-
Voltage:
-
380V/415V/440V/600V/660V,etc
-
Dimension(L*W*H):
-
1560*980*1000mm
-
Weight:
-
170kg
-
Air capacity:
-
0.67m3/min
-
Product Name:
-
Piston Air Compressor 80L air tank for grain conveyor
-
Model:
-
W-0.67/8
-
Compressed medium:
-
air gas
-
F.A.D (Nm3/min):
-
0.67 m3/min
-
Power (KW):
-
5.5KW 7.5HP
-
Working Pressure ( Mpa):
-
8bar
-
Cooling method:
-
Air Cooling
-
Usage:
-
for filling station
-
Motor protection level:
-
IP 54 IP55
-
Drive method:
-
belt driven with belt guard
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, Philippines, Indonesia, Pakistan, Russia, Thailand, Malaysia, Argentina, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE

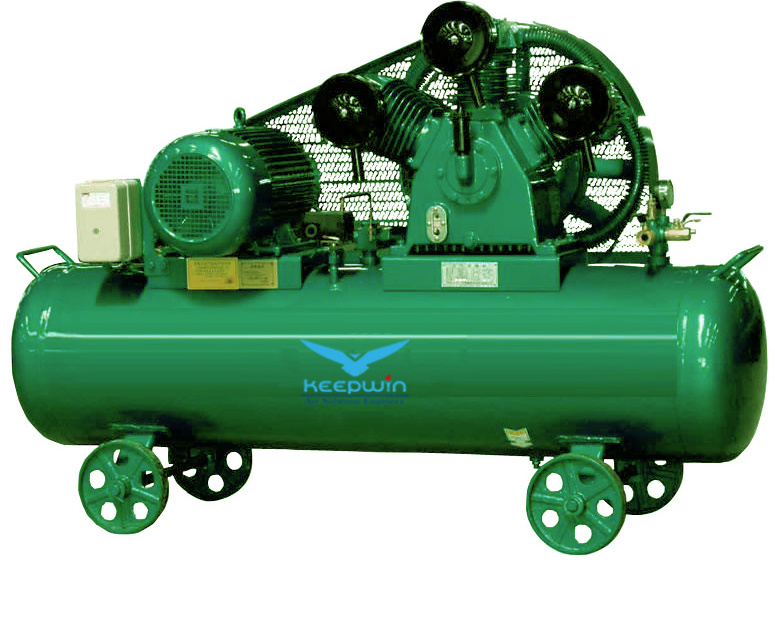

7.5KW 10HP 8bar movable tank wheel 100L 120L 200L 250L 300L Pressure tank belt driven piston type small air compressor
Product Description
Portable industrial silent piston air compressor for sale
Technical Parameter for W-1.0/8 7.5KW 10HP Oil-injection Lubrication Piston Air Compressor
| No. | Item | Specification |
| 1 | Model | W-1.0/8 |
| 2 | Medium | Air Gas |
| 3 | Structure | W type, Air Cooled, Piston Air Compressor |
| 4 | F.A.D air delivery | 1.0m3/min |
| 5 | Working pressure | 8bar |
| 6 | Tank volume | 160L tank |
| 7 | Ambient temperature | ≤-10~+40℃ |
| 8 | Discharge temperature | ≤ambient temp + 15℃ |
| 9 | Motor Power | 7.5KW, asynchronous motor |
| 10 | Lubricate method | oil-injection lubrication |
| 11 | Driven Method | Belt driven with belt guard |
| 12 | Voltage | 380V/50Hz/3ph (other voltage can be customized) |
| 13 | Noise | 75dB (A) |
| 15 | Dimension | about 1220×580×980mm (L*W*H) |
| 16 | Weight | about 280KG |
| Model | Generator | Cylinder | F.A.D | Pressure |
Tank volume (L) |
|
|---|---|---|---|---|---|---|
| m3/min | bar | |||||
| W-0.6/12.5 | 4 | 5.5 | 80×2/65×1 | 0.6 | 12.5 | 80 |
| Z-0.42/12.5 | 4 | 5.5 | 105×1/55×1 | 0.42 | 12.5 | 80 |
| W-0.8/14.5 | 7.5 | 10 | 90×2/65×1 | 0.8 | 14.5 | 120 |
| W-0.9/12.5 | 7.5 | 10 | 90×2/65×1 | 0.9 | 12.5 | 120 |
| V-1.05/10 | 7.5 | 10 | 105×2/55×2 | 1.05 | 10 | 160 |
| V-0.8/12.5 | 7.5 | 10 | 105×2/55×2 | 0.8 | 12.5 | 120 |
| V-1.05/10 | 7.5 | 10 | 105×2/55×2 | 1.05 | 10 | 160 |
| V-0.8/12.5 | 7.5 | 10 | 105×2/55×2 | 0.8 | 12.5 | 160 |
| V-1.05/10 | 7.5 | 10 | 105×2/55×2 | 1.05 | 10 | 500 |
| V-1.2/10-K | 7.5 | 10 | 120×2/63.5×2 | 1.2 | 10 | 300 |
| V-1.05/12.5-K | 7.5 | 10 | 120×2/63.5×2 | 1.05 | 12.5 | 330 |
| Z-1.6/10 | 11 | 15 | 155×1/85×1 | 1.6 | 10 | 330 |
| W-1.6/12.5 | 11 | 15 | 105×2/75×1 | 1.6 | 12.5 | 330 |
| W-2.0/10 | 15 | 20 | 120×2/82×1 | 2 | 10 | 330 |
| W-2.4/14.5 | 18.2 | 25 | 140×2/90×1 | 2.4 | 14.5 | 330 |
1. Professional exporting wooden packing.
>>>Description of air compressor
1) The air compressor carefully designed and manufactured for filling 20MPa-30MPa pressure air cylinders.
2) This is a kind of high-pressure air inflatable equipment available for breathing air. The device has a small size, lightweight, easy maintenance, and friendly at moving and operation.
3) Output air non-toxic, odorless. Suitable for filling high-pressure air displacement and small and medium-sized gas station
Technical Parameter for PET Middle high pressure Oil-free Piston Air Compressor
|
Model |
Air Delivery |
Working Pressure |
Compressed Stages |
Motor power |
Speed |
Dimension (L*W*H) |
Weight |
|
unit |
m3/min |
bar |
kw |
rpm |
mm |
Kg |
|
|
VW-2.0/30 |
2.0 |
3.0 |
3 |
22 |
620 |
2178*1060*1060 |
690 |
|
WW-4.0/30 |
4.0 |
2*22 |
3718*1108*1208 |
1380 |
|||
|
WW-6.0/30 |
6.0 |
2*22 |
2168*1058*2008 |
1380 |
|||
|
WW-8.0/30 |
8.0 |
3*22 |
5608*1108*1208 |
2070 |
|||
|
VW-2.0/40 |
2.0 |
4.0 |
22 |
2178*1060*1060 |
690 |
||
|
WW-4.0/40 |
4.0 |
2*22 |
3718*1108*1208 |
1380 |
|||
|
WW-6.0/40 |
6.0 |
2*22 |
2168*1058*2008 |
1380 |
|||
|
WW-8.0/40 |
6.0 |
3*22 |
5608*1108*1208 |
2070 |
*Structure by into trachea-shaped valve and exhaust valve combinations, the main features below: air through the intake manifold valve cavity, along the tangent of the valve flow, the impact of approximate straight lines, air valves and flow resistance greatly reduces, so it could provide low noise, long service life.
*Because of the inlet valve inside the vertical spatial distribution, inlet of the valve flow area increased, the valve flow rate and lower drag coefficient, inspiratory volume increase volume efficiency, reduced energy consumption.
*Intake and exhaust valves are the reed valve and strip-type valves fixed unlimited free elastic beam opening and closing movements, without friction and clearance volume small so kotech combined air valve has excellent dynamic performance and reliability.
Especially suitable for: water and electricity, PET bottle blowing, leak detection, military and other fields
1. Valve materials are made of Sweden stainless steel band.
2. In order to ensure that air compressors highly reliable, using redundant design principles, setting multiple protection measures: unloading, down the drain, exhaust, ensure that the zero-pressure start.
3. Timed drain valve: Drainage and drainage at a time interval can be adjusted. Ensure that the captain of an air compressor runs continuously between regular drainage, effectively preventing water from too much liquid strike accidents.
4. Low exhaust temperature(10.0Mpa exhaust pressure, exhaust air temperature ≤170 degrees, the temperature of exhaust air is above the ambient temperature of 15-20 ℃ from aftercooler )
5. Fuel consumption per hour less than 0.143/kw.
6. High reliability and long maintenance period, very low fuel, low energy consumption and so on, greatly reducing the overall general operating costs.
