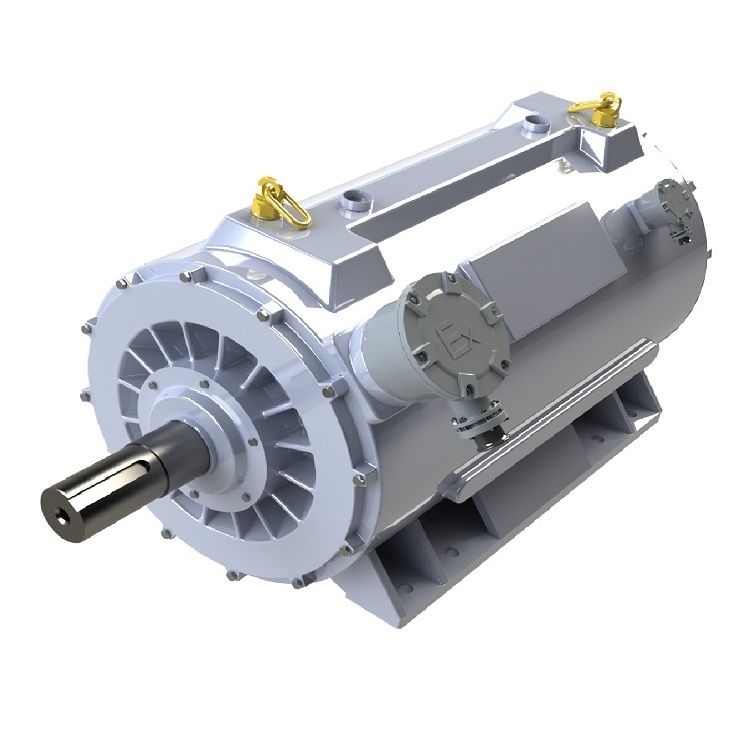

More energy saved by combined operation
By combining the synchronous motor with an independent frequency converter for energy-saving control, the power loss can be reduced and further high efficiency operation can be realized.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ENN
-
Model Number:
-
TYP
-
Frequency:
-
50-150HZ
-
Item:
-
Permanent Magnet Synchronous Motor
-
Material:
-
Rare earth
-
Class of Insulation:
-
F(H)
-
Cooling type:
-
IC411 or IC416
-
Protection grade:
-
IP54(IP23 Customizable)
-
Housing:
-
cast iron,aluminum case
-
Control method:
-
Variable frequency vector control
-
Number of Poles:
-
4,6,8,10,20,32,48,64,100
-
Wire Type:
-
Junction box
-
Sample:
-
Available
Quick Details
-
AC Voltage:
-
380v,690v,1140v,6kv,10kv
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENN
-
Model Number:
-
TYP
-
Frequency:
-
50-150HZ
-
Item:
-
Permanent Magnet Synchronous Motor
-
Material:
-
Rare earth
-
Class of Insulation:
-
F(H)
-
Cooling type:
-
IC411 or IC416
-
Protection grade:
-
IP54(IP23 Customizable)
-
Housing:
-
cast iron,aluminum case
-
Control method:
-
Variable frequency vector control
-
Number of Poles:
-
4,6,8,10,20,32,48,64,100
-
Wire Type:
-
Junction box
-
Sample:
-
Available
Products Description
The speed of the TYP series high-efficiency permanent magnet variable frequency synchronous motor is synchronized with the stator rotating magnetic field, there is no slip, and the slip power is saved, so that the TYP series of high-efficiency permanent magnet variable frequency synchronous motor has high efficiency and energy saving effect in the full speed range obvious.
Our company is equipped with a dedicated control cabinet for this series of products, which can be customized according to user requirements.
TYP series high-efficiency permanent magnet frequency conversion synchronous motors are widely used in injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food machinery, cement pipe making machines, plastic extruders, wire drawing machines and pharmaceutical equipment.
Our company is equipped with a dedicated control cabinet for this series of products, which can be customized according to user requirements.
|
Energy Efficiency Standards
|
comply with GB30253-1 grade
|
Work Mode
|
S1
|
||
|
Altitude
|
below 1000m
|
Environmental Temperature
|
-15～+40℃
|
||
|
Installation Dimensions
|
comply with IEC standard
|
Control Mode
|
variable frequency vector control
|
||
|
Power Range
|
3 〜315kW
|
Install Type
|
IMB3 IMB5 IMB35
|
||
|
Cooling Way
|
IC411 or IC416
|
Rated Efficiency
|
50、75、125、150Hz(customized as per requirement)
|
||
|
Insulation Class
|
F（H）
|
Optional Parts
|
Encoder, spiral transformer, PTC, PT100
|
||
|
Protection Grade
|
IP54(IP23 customizable)
|
Wiring Type
|
junction box (aviation plug can be customized as per requirement)
|
||
|
Installation
|
IMB3 IMB5 IMB35
|
Rated Voltage
|
380V±10%,660V±10%
|
||
|
Required Environment |
below 1000m altitude
|
|
|
||
|
|
temperature -15〜45°C
|
|
|
||
|
|
relative humidity below 90%
|
|
|
||
|
Type
|
Power
(KW)
|
Speed
(r/min)
|
Torque
(N.M)
|
Efficiency
η(%)
|
Frequency
(Hz)
|
|
TYP132S-6
|
3
|
1000
|
28.7
|
85.6
|
50
|
|
TYP132M1-6
|
4
|
|
38.2
|
86.8
|
|
|
TYP132M2-6
|
5.5
|
|
52.5
|
88
|
|
|
TYP160M-6
|
7.5
|
|
71.6
|
89.1
|
|
|
TYP160L-6
|
11
|
|
105.1
|
90.3
|
|
|
TYP180L-6
|
15
|
|
143.3
|
91.2
|
|
|
TYP200L1-6
|
18.5
|
|
176.7
|
91.7
|
|
|
TYP200L2-6
|
22
|
|
210.1
|
92.2
|
|
|
TYP225M-6
|
30
|
|
286.5
|
92.9
|
|
|
TYP250M-6
|
37
|
|
353.4
|
93.3
|
|
|
TYP280S-6
|
45
|
|
429.8
|
93.7
|
|
|
TYP280M-6
|
55
|
|
525.3
|
94. 1
|
|
|
TYP315S-6
|
75
|
|
716.2
|
94.6
|
|
|
TYP315M-6
|
90
|
|
859.5
|
94.9
|
|
|
TYP315L1-6
|
110
|
|
1050.5
|
95. 1
|
|
|
TYP315L2-6
|
132
|
|
1260.6
|
95.4
|
|
|
TYP355M1-6
|
160
|
|
1528
|
95.6
|
|
|
TYP355M2-6
|
200
|
|
1910
|
95.8
|
|
|
TYP355L1-6
|
220
|
|
2101
|
95.8
|
|
|
TYP355L2-6
|
250
|
|
2387.5
|
95.8
|
|
|
TYP355L3-6
|
280
|
|
2674
|
95.8
|
|
|
TYP112M-6
|
4
|
1500
|
25. 5
|
88.6
|
75
|
|
TYP132S-6
|
5.5
|
|
35
|
89.6
|
|
|
TYP132M-6
|
7.5
|
|
47.8
|
90.4
|
|
|
TYP160M-6
|
11
|
|
70
|
91.4
|
|
|
TYP160L-6
|
15
|
|
95.5
|
92.1
|
|
|
TYP180M-6
|
18.5
|
|
117.8
|
92.6
|
|
|
TYP180L-6
|
22
|
|
140.1
|
93
|
|
|
TYP200L-6
|
30
|
|
191
|
93.6
|
|
|
TYP225S-6
|
37
|
|
235.6
|
93.9
|
|
|
TYP225M-6
|
45
|
|
286.5
|
94.2
|
|
|
TYP250M-6
|
55
|
|
350.2
|
94.6
|
|
|
TYP280S-6
|
75
|
|
477.5
|
95
|
|
|
TYP280M-6
|
90
|
|
573
|
95.2
|
|
|
TYP315S-6
|
110
|
|
700.3
|
95.2
|
|
|
TYP315M-6
|
132
|
|
840.4
|
95.6
|
|
|
TYP315L1-6
|
160
|
|
1018.7
|
95.8
|
|
|
TYP315L-6
|
185
|
|
1177.8
|
95.9
|
|
|
TYP315L2-6
|
200
|
|
1273.3
|
96
|
|
|
TYP355M1-6
|
220
|
|
1400.7
|
96
|
|
|
TYP355M2-6
|
250
|
|
1591.7
|
96
|
|
|
TYP355L1-6
|
280
|
|
1782.7
|
96
|
|
|
TYP355L2-6
|
315
|
|
2005.5
|
96
|
|
Details Images
Loss Analysis
Permanent magnet synchronous motor
can
reduce iron loss and primary copper
loss
with no secondary copper loss.
High efficiency NdFeB permanent magnet is adopted, with no excitation loss. Special rotor structure design has greatly reduced the iron loss and stray loss. The motor efficiency is above IE4 standard, Compared with three-phase asynchronous motor, the efficiency is improved by 5-10% and power factor is increased by 10-15%.
High efficiency and high power factor can be maintained in the load range of 20% to 120%. The power factor can be 1, while three-phase asynchronous motor can only reach 0.86,it effectively reduces the cabling loss, and improves the utilization rate of the power grid. Energy saving is more significant under light load.
Standard type motor efficiency is equivalent to IE3 (high efficiency:>GB2 grade)
General type motor efficiency is above IE4 (ultra high efficiency:>GB1 grade)
General type motor efficiency is above IE4 (ultra high efficiency:>GB1 grade)
Comparison of Motor Efficiency
1) The efficiency of the above asynchronous motor is JISC 4210.
2) The efficiency of the above standard type synchronous motor is the value of IE3 specified in IEC 60034-30.
3) The above general type synchronous motor efficiency is the value of IE4 specified in IEC 60034-30.
2) The efficiency of the above standard type synchronous motor is the value of IE3 specified in IEC 60034-30.
3) The above general type synchronous motor efficiency is the value of IE4 specified in IEC 60034-30.
Main Features
1.Easy to change
The same installation size with asynchronous motor.Due to the same motor seat No. Design with asynchronous motor(output<315kW), it can be easily changed.
2. High Power Factor
Reduce the capacity of power receiving equipment.There is no doubt of high efficiency. Compared with asynchronous motor and standard type synchronous motor, it can reduce the current volume of equipment due to high power factor.
3.Speed control corresponding to height
It is PG vector control.Suitable for printer, punch compactor.
4. High Efficiency•Energy Saving
Motor efficiency is equal to IE4 (Ultra high efficiency: above GB1 grade)
Note: IE4 is a efficiency grade specified in IEC 60034-30.
Factory Show
FAQ
1.What is the heat resistance rating of permanent magnets? What will cause demagnetization?
The permanent magnets commonly used in our company are neodymium-boron-iron materials, and their maximum operating temperature is different depending on the grades used. For example, N38EH, the maximum working temperature of its material can reach 200℃, but we redesign it according to 180℃ as the limit.
To put it simply, our products are designed with sufficient margin, and there will be no demagnetization due to high temperature during use. As long as there is no high current impact, the permanent magnets of the motor will not demagnetize, and the use of inverters can avoid the occurrence of high currents.
2. What is the usual noise of the motor running?
Motor noise varies greatly depending on the specifications of the motor. Permanent magnet motors running below 200 rpm usually have a noise below 80dab. The noise of permanent magnet motors with operating speeds above 750 rpm is generally around 85dab.
Meet the relevant regulations of GB100693.-2008 "Rotating Electric Machine Noise Measurement Method and Limits".
3.
What are the contents of operation and maintenance?
The motor basically has no operating costs and only requires routine maintenance. If the environment is poor, the motor with the external fan and the attachments of the external fan need to be cleaned regularly to avoid additional power loss.
