vertical Freezer Dryer Mini Vacuum Lyophilizer for Laboratory Freeze Dryer for Food

vertical Freezer Dryer Mini Vacuum Lyophilizer for Laboratory Freeze Dryer for Food

FOB Reference Price: Get Latest Price

≥1 Sets

US $6100

≥8 Sets

US $6000

≥80 Sets

US $5700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/50Hz,60Hz

Power:: 0.85kW

Dimension(L*W*H):: 480*610*1415

Weight (KG):: 110

Core Components:: Vacuum Chamber, Shelf with sensor, Stainless steel countertop, Touch Screen, Ice condenser chamber, Vacuum pump connection port

Evaporation Capacity(kg/h):: 0.25

Final condenser temp (℃):: -60 or -80

Vacuum Degree (Pa):: <10

Condenser volume (L):: 9.5

Freeze drying area (m2):: 0.12

Ice condenser capacity (Kg/24h):: 3

Qty of shelf:: 4

Material loading capacity/shelf (ml):: 300

Material loading capacity (ml):: 1200

Drying Chamber(standard):: Transparent acrylic

Quick Details

Type:: Dry Cabinet

Place of Origin:: Shandong, China

Brand Name:: INNOVA

Voltage:: 220V/50Hz,60Hz

Power:: 0.85kW

Dimension(L*W*H):: 480*610*1415

Weight (KG):: 110

Core Components:: Vacuum Chamber, Shelf with sensor, Stainless steel countertop, Touch Screen, Ice condenser chamber, Vacuum pump connection port

Evaporation Capacity(kg/h):: 0.25

Final condenser temp (℃):: -60 or -80

Vacuum Degree (Pa):: <10

Condenser volume (L):: 9.5

Freeze drying area (m2):: 0.12

Ice condenser capacity (Kg/24h):: 3

Qty of shelf:: 4

Material loading capacity/shelf (ml):: 300

Material loading capacity (ml):: 1200

Drying Chamber(standard):: Transparent acrylic

Product Overview

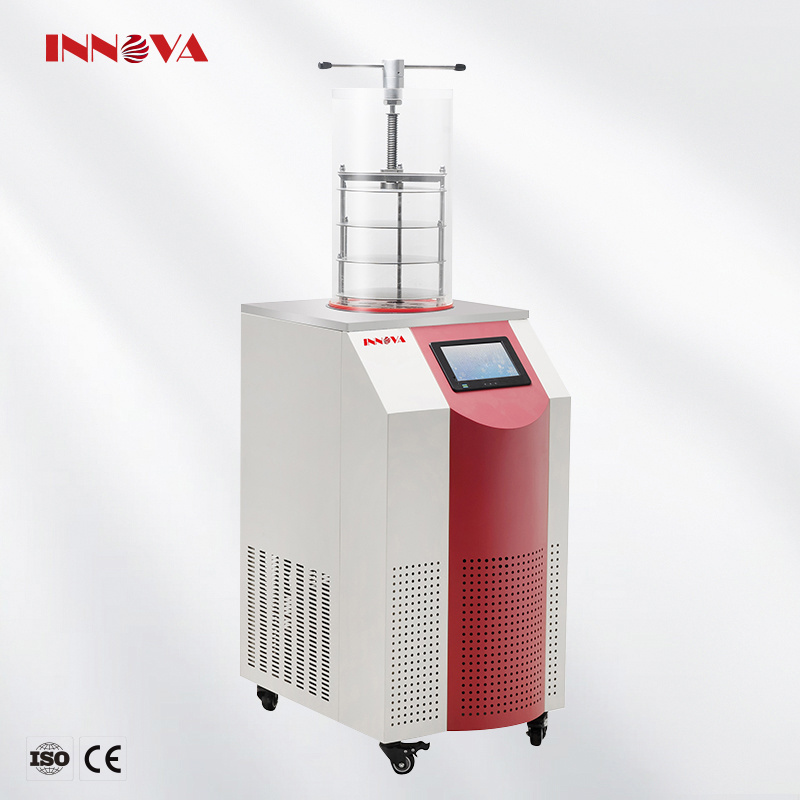

Innova Laboratory Series Freeze Dryer / Lyophilizer

The lab series freeze dryer is suitable for freeze-drying tests of laboratory biomedical samples. widely applied in pharmaceutical industry, biotechnology industry , biological science industry, materials science industry, chemical industry, food and agriculture industry etc. It is used to produce vaccines, drugs and permanently store biological tissues/organs.

Innova INOFD freeze dryer is specialized designed for small batch test in laboratory. The Bench Top and Console freeze dryers are with advanced design and occupies small area.

With Innova, Go get the better lyophilization solutions

Features Of Innova Laboratory Series Freeze Dryer / Lyophilizer

1. New upgraded programmable logic controller (PLC), allow users to independently compile and modify programs, and gradually
realize function iteration according to user needs
2. PLC has reliable quality, high stability, and has the functions of waterproof, anti-magnetic, anti-breakdown and
anti-electromagnetic interference.
3. HD 7“ colorful touch panel with higher resolution, better sensing accuracy and control accuracy.

4. The Pirani vacuum gauge can effectively improve the measurement accuracy, increase the measurement range, and greatly enhance
the stability and reliability of the vacuum gauge.
5. The vacuum sensing of the Pirani vacuum gauge is more accurate, and the sensing accuracy reaches 0.01Pa.
6. Vacuum degree alarm function, when the vacuum degree exceeds the set range, an alarm will be issued in time.

Optional:
Condenser temperature of -80℃ is optional （Except bentch top models）;
Shelf heating function is optional;
Accessories for different chamber and manifold are optional;
The vacuum pump is standard accessory, which is packed in a separate package, needs to be installed in user's site indepedently,

Application

Applications:

1.Pharmaceutical industry: p roteins, enzymes, hormones, vaccines and other

2.Biotechnology science research: s tabilisation and/or storage of biological materials for research and development.

3.Food processing: v egetables, meat, fish meals ,and fruits.

4. Nutraceuticals: Aloe Vera, Echinacea, Mussels, Shark Cartilage.

5. Taxidermy: a nimal preservation for deceased pets and hunting trophies.

Product Accessories

Products Technical Parameters

>>>Send inquiries for more information and quotes

Innova Lab Series Freeze Dryer

nnova INOFD freeze dryer is specialized designed for small batch test in lab. The Bench top and Console freeze dryers are with advanced design and occupies small area.The capacity is from 900ml to 2700ml.

Innova P ilot Series Freeze Dryer

Pilot production freeze dryer is a small in-situ freeze-drying equipment. It is applied not only in pharmaceutical pilot workshop but also in food or medicinal freeze-drying process.

Innova Pilot Series Freeze Dryer

Pilot production freeze dryer is a small in-situ freeze-drying equipment. It is applied not only in pharmaceutical pilot workshopbut also in food or medicinal freeze-drying process.

>>>Contact us to find out solutions we offer

Get To Know Innova

Innova Bio-Meditech is one of the professional global providers of laboratory and medical devices. Firmly committed to our mission of “sharing innovative bio-meditech solutions with the world”, we are dedicated to innovation in the fields of Biology Project, Life Science, Pharmacy Industry and Medical Treatment.Products like bioreactor, glassware washer, freeze dryer, shaking incubator, anaerobic incubator, climate chamber, lab freezer, pharmacy refrigerator, vacuum autoclave, laboratory water purification system, etc for the life science and medical healthcare. All of these Innova products meet CE or ETL quality. Innova Bio-Meditech possesses a sound distribution and service network with business partners in North America and Latin America, Europe, Africa and Asia-Pacific etc. We have built up a well established R&D, manufacture network with 3 centers in Beijing, Qingdao, and Shanghai.

Inspired by the needs of our customers, we adopt advanced technologies and transform them into accessible innovation. This means constant effort and research, in order to more fully understand the developments of the market, produce constantly upgraded product ranges by adding new products year after year.

>>>>Click here for quotes and catalogues

Recommend Related Products

FAQ

Questions	Answers
What kind of freeze dryer do we need for soil?	According to the amount you need to freeze-dry, the requirement for soil testing freeze-drying is that the vacuum degree is lower than 13pa, no higher standard is required, all our freeze-dryers meet this requirement, so you only need to consider your daily testing amount. .
What is the difference between a pilot freeze dryer and a laboratory freeze dryer	The laboratory freeze-drying machine has a relatively small amount of freeze-drying, and the main purpose is to prepare a small amount of freeze-dried samples. Sample freeze-drying requires operation and has relatively few functions. It only has the functions of refrigeration and vacuuming. Models 12 and 18 can be additionally equipped with electric heating functions. , control the heating, but not the refrigeration; the pilot-scale freeze-drying machine is in-situ freeze-drying, with a large amount of freeze-drying and more complete functions. It can customize the freeze-drying curve and control the temperature of the freeze-drying bin.
For Console series lyophilizers, what is the spacing between the partitions	6cm
Can the shelf of the freeze dryer be heated?	Shelf heating is optional
Can INNOVA freeze dyer to dry bacteria?	dried in ampoules bottle of about 5 ml,we have the accessory specially design to freeze dry ampoules bottle
Does INNOVA freeze dryer have heating defrost function with cold trap?	Yes, it is an optional function with additional cost, for detailes, please write to us
Do you have model with 15kg condensation capacity?	Yes,INOFD-100 series
Do you have model with 30kg condensation capacity?	Yes,INOFD-200 series
Does INNOVA freeze dryer have USB access port?	Yes, INNOVA freeze dryer has USB access port to datalogging
Options of power	INNOVA offers 220V/50Hz/60Hz, and 110~115V/50Hz/60Hz
How long does the freeze-drying process take?	Different materials require different freeze-drying times, please contact our technical staff for accurate information.
What are the accessories of the freeze dryer?	Standard configuration includes vacuum pump, material rack, vacuum hood, and can also be configured according to your requirements.
Can organics be freeze-dried?	Yes, there is a stainless steel drying cylinder. The lowest temperature can reach -80℃
What is the vacuum level of the freeze dryer?	less than 3pa
Can a freeze dryer freeze-dry protein?	YES
Can our alcohol solvent be freeze-dried?	YES
