Quick Details
-
Weight:
-
36000 KG
-
Drilling Diameter:
-
115-350mm
-
Drilling Depth:
-
Max.600m
-
Mobility:
-
Can move
-
Name:
-
water well drill machine
-
One-time push length:
-
1900mm borewell drilling machine
-
Max Drilling Depth:
-
300 Meter, 500 Meter, 600 Meter
-
Moving speed:
-
2.5km/h
-
Gradeability:
-
35
-
Drill rod length:
-
1.5m/piece
-
Lifting force:
-
8T
-
Rotate Torque:
-
1000 N.m
-
Rotate speed:
-
1100rpm
-
Drill rod diameter:
-
73mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orangemech
-
Dimension(L*W*H):
-
4000*1900*1800mm
-
Weight:
-
36000 KG
-
Drilling Diameter:
-
115-350mm
-
Drilling Depth:
-
Max.600m
-
Mobility:
-
Can move
-
Name:
-
water well drill machine
-
One-time push length:
-
1900mm borewell drilling machine
-
Max Drilling Depth:
-
300 Meter, 500 Meter, 600 Meter
-
Moving speed:
-
2.5km/h
-
Gradeability:
-
35
-
Drill rod length:
-
1.5m/piece
-
Lifting force:
-
8T
-
Rotate Torque:
-
1000 N.m
-
Rotate speed:
-
1100rpm
-
Drill rod diameter:
-
73mm

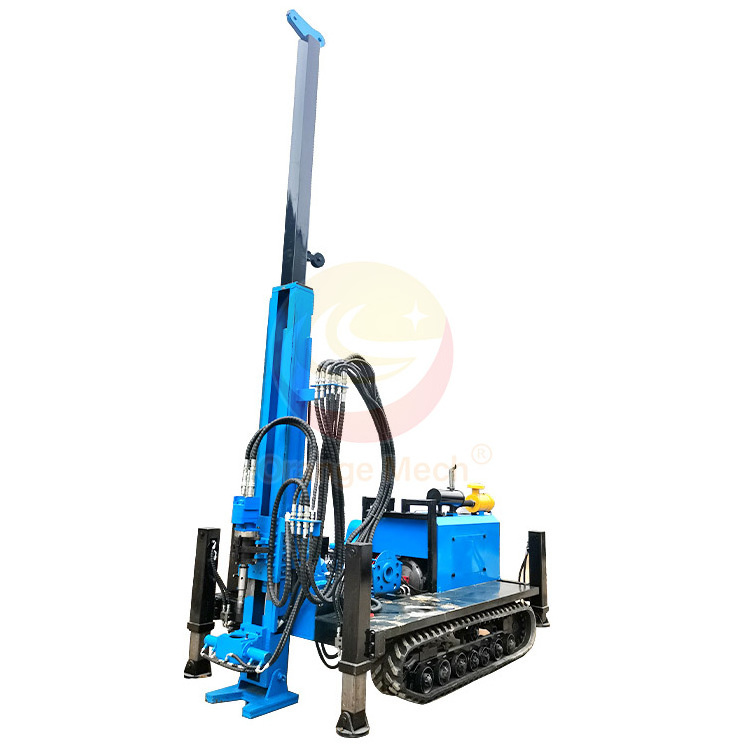

Portable Driller 600m Trailer Mounted Water Well Drill Rig Borehole 500 Meter Anchor Drill Machine for Sale
Product Description
Recommend Products
Product Parameters
OR-YDX-300XL
OR-YDX-500
OR-YDX-600
|
Model
|
OR-YDX-300XL
|
OR-YDX-500
|
OR-YDX-600
|
|
Max drilling depth
|
300m
|
500m
|
600m
|
|
One-time push length
|
1900mm
|
1900mm
|
1900mm
|
|
Moving speed
|
2.5km/h
|
2.5km/h
|
2.5km/h
|
|
Gradeability
|
35
|
35
|
35
|
|
Drill rod diameter
|
73mm
|
73mm
|
73mm
|
|
Drill rod length
|
1.5m
|
1.5m
|
1.5m
|
|
Power
|
76kw
|
91kw
|
132kw
|
|
Lifting force
|
8T
|
10T
|
10T
|
|
Torque
|
1000N.m
|
1000N.m
|
1000N.m
|
|
Rotating speed
|
1100rpm
|
1100rpm
|
1100rpm
|
|
Weight
|
3.6T
|
5T
|
5.5T
|
|
Dimension
|
4000*1900*1800mm
|
4000*2000*1800mm
|
4000*2000*1800mm
|
