- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
120 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Voltage:
-
380V 50HZ 3Phase
-
Dimension(L*W*H):
-
5500*2100*4200mm
-
Power (kW):
-
15
-
Weight:
-
2000 KG
-
Kind:
-
HDPE Nylon Extruder Machine,Film Blowing Machine
-
Blow Moulding Type:
-
extrusion blow moulding
-
Die head:
-
fixed/rotary
-
Air ring:
-
single mouth/double mouth
-
Screw:
-
single
-
Winder:
-
Single/Double
-
Single Sided Film Thickness:
-
0.01-0.1mm
-
Raw Material:
-
Plastic HDPE,LDPE,LLDPE granules
-
Corona Treatment Device:
-
Optional
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
55 mm
-
Screw Speed (rpm):
-
120 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Voltage:
-
380V 50HZ 3Phase
-
Dimension(L*W*H):
-
5500*2100*4200mm
-
Power (kW):
-
15
-
Weight:
-
2000 KG
-
Kind:
-
HDPE Nylon Extruder Machine,Film Blowing Machine
-
Blow Moulding Type:
-
extrusion blow moulding
-
Die head:
-
fixed/rotary
-
Air ring:
-
single mouth/double mouth
-
Screw:
-
single
-
Winder:
-
Single/Double
-
Single Sided Film Thickness:
-
0.01-0.1mm
-
Raw Material:
-
Plastic HDPE,LDPE,LLDPE granules
-
Corona Treatment Device:
-
Optional
Professional Manufacturer
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment

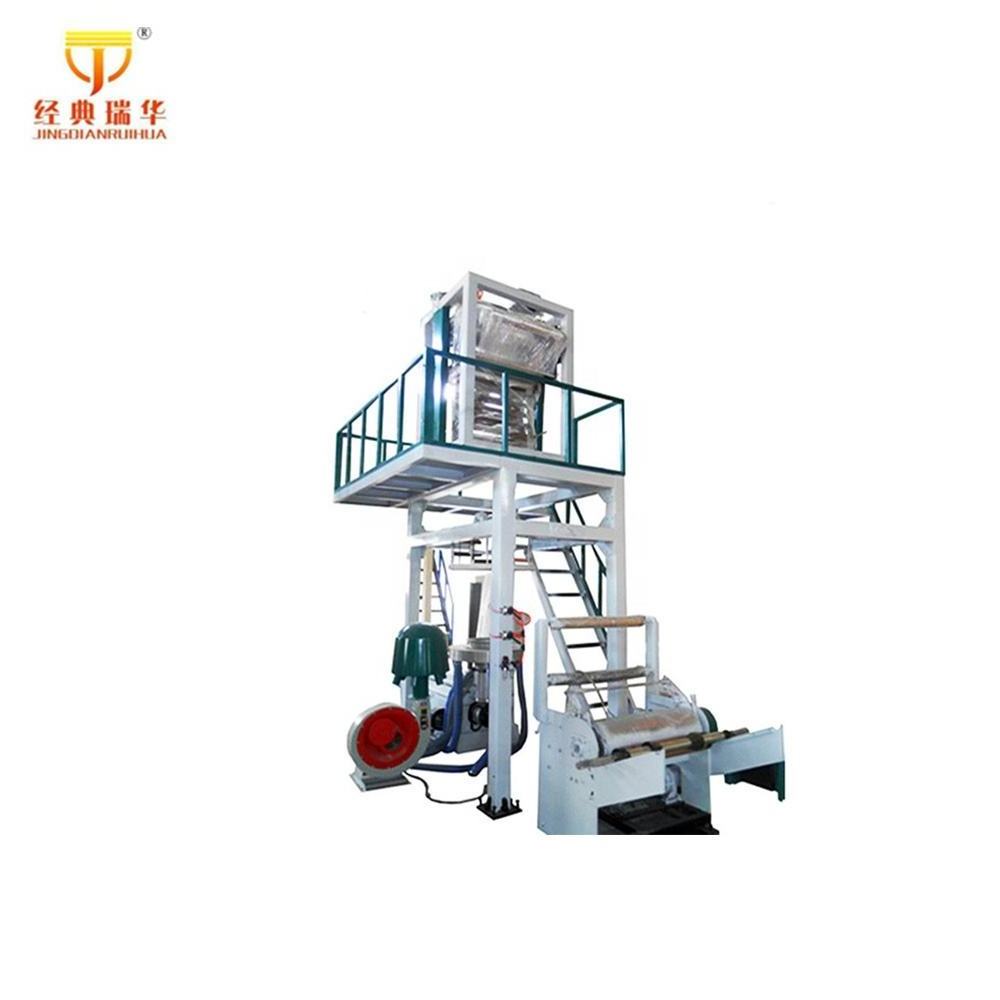

HDPE Nylon Extruder Machine,Film Blowing Machine is suitable for blowing various low density polyethylene and high density polyethlene color striped plastic film and LLDPE etc..
|
Model
|
SJ-A50
|
SJ-A55
|
SJ-A60
|
SJ-A65
|
|
Diameter of screw
|
φ50
|
φ55
|
φ60
|
φ65
|
|
Reduced diameter of film(mm)
|
100-600
|
200-800
|
300-1000
|
400-1200
|
|
Thickness of single face film(mm)
|
0.01-0.10
|
0.01-0.10
|
0.01-0.10
|
0.01-0.10
|
|
Max extrusion (kg)
|
35
|
50
|
65
|
80
|
|
L/D
|
28:1
|
28:1
|
28:1
|
28:1
|
|
Power of main motor(kw)
|
7.5
|
11
|
15
|
18.5
|
|
Power of traction motor(kw)
|
0.75
|
0.75
|
0.75
|
0.75
|
|
heating power(kw)
|
11
|
13
|
19
|
21
|
|
Dimension(L*W*H)(mm)
|
4800*1900*3500
|
5500*2100*3800
|
6500*2300*3800
|
6500*2500*4600
|
|
Weight(T)
|
1.5T
|
2T
|
2.3T
|
2.6T
|
About Us
Production Process
Sample Room
Certificate
Packaging & Shipping
FAQ
Q:
: Are you a factory or trading company?
A: We are manufacturer, have our
own factory with
over 18 years
experiences
.We not only sell machine for you, but offer the best solutions.
Q: Where is your factory located? How can l visit?
A: Our factory is located in Rui'an City, Zhejiang Province, China, About one hour by air from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
Q: What kind of quality certificate do you have?
A: We have CE certificate, SGS, ISO, etc.
Q: How does your factory do regarding quality control?
A:
Quality is the our focus
. From the begining till the end of machine manufacture, we will inspect every components before using. And machine will be tested after finished.
Q: What's the payment terms?
A: We usually do TT with 30% deposit, and 70% balance paid before machine delivery. Other ways like L/C, western union,etc are also acceptable.
Q: How about the delivery time?
A: Usually, our machines can be delivered within 30 working days.
