Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Minfeng
-
Model Number:
-
WDZBN-YJY
-
Size:
-
customizition
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Rated voltage:
-
0.6/1 KV
-
Insulation:
-
XLPE Insulation
-
MOQ:
-
500
Quick Details
-
Insulation Material:
-
PE
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Minfeng
-
Model Number:
-
WDZBN-YJY
-
Size:
-
customizition
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Rated voltage:
-
0.6/1 KV
-
Insulation:
-
XLPE Insulation
-
MOQ:
-
500
Product Description

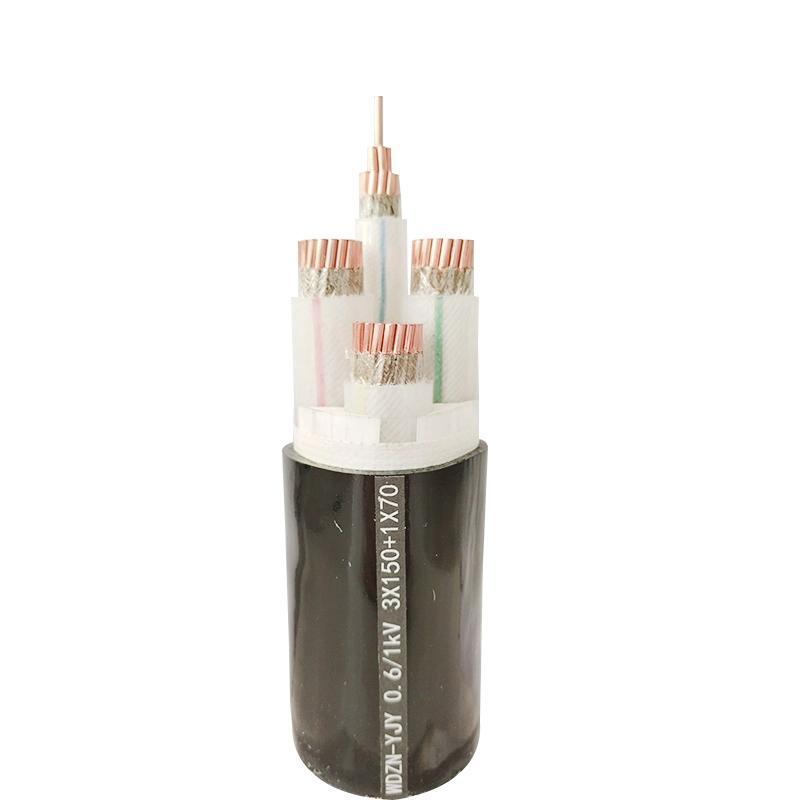

4 Core Halogen-free low smoke flame retardant Power Cable (WDZN-YJY):
Product Parameter
| Model | Specificaton | Conductor Weight | Main Conductor | ||||
|
Number
of core |
Copper wire
diameter |
Number of
copper wire |
Weight |
Outer
diameter |
|||
| WDZBN-YJY | 4*4 | 0.137644093 | 4 | 2.22 | 1 | 0.137644093 | 2.24 |
| WDZBN-YJY | 4*6 | 0.212750108 | 4 | 2.76 | 1 | 0.21275010 8 | 2.76 |
| WDZBN-YJY | 4*10 | 0.351042148 | 4 | 1.34 | 7 | 0.351042148 | 4.02 |
| WDZBN-YJY | 4*16 | 0.55178289 | 4 | 1.68 | 7 | 0.55178289 | 5.04 |
| WDZBN-YJY | 4*25 | 0.878661076 | 4 | 2.12 | 7 | 0.878661076 | 6.36 |
| WDZBN-YJY | 4*35 | 1.202411242 | 4 | 2.48 | 7 | 1.202411242 | 7.44 |
| WDZBN-YJY | 4*50 | 1.773587862 | 4 | 2.52 | 10 | 1.773587862 | 8.94 |
| WDZBN-YJY | 4*70 | 2.483023006 | 4 | 2.52 | 14 | 2.483023006 | 10.61 |
| WDZBN-YJY | 4*95 | 3.369816937 | 4 | 2.52 | 19 | 3.369816937 | 12 |
| WDZBN-YJY | 4*120 | 4.256610868 | 4 | 2.52 | 24 | 4.256610868 | 13.2 |
| WDZBN-YJY | 4*150 | 5.320763585 | 4 | 2.52 | 30 | 5.320763585 | 15.1 |
| WDZBN-YJY | 4*185 | 6.562275088 | 4 | 2.52 | 37 | 6.562275088 | 16.7 |
| WDZBN-YJY | 4*240 | 8.513221739 | 4 | 2.52 | 48 | 8.513221739 | 19.1 |
| WDZBN-YJY | 4*300 | 10.64152718 | 4 | 2.52 | 60 | 10.64152718 | 21.4 |
The low smoke low halogen and low smoke,halogen-free flame retardant polyolefin wire and cable has the same electrical performance as ordinary PVC wire and cable.Its flame retardant performance complies to the requirement of GB/T 19666-2005, identical to IEC 60332-3-25 bundle burning.Low-smoke and low-halogen bundled combustion meets Class C requirements,and low-smoke and halogen-free at least meets Class C bundle requirements.The PH and conductivity of the gas released by the combustion of the product meet the IEC 60754-2 standard.The structure of the low-smoke halogen-free wire and cable is the same as that of a normal PVC cable.Low-halogen cable insulation should be made of low-smoke and low-halogen polyolefin insulation.The insulation of halogen-free cables should be insulated with low-smoke, halogen-free polyolefin or polyethylene or XLPE.The inner and outer sheath of the low-smoke low-halogen cable is made of low-smoke and low-halogen polyolefin sheathing material.The inner and outer sheath of the low-smoke halogen-free cable is made of low-smoke low-halogen or low-smoke halogen-free polyolefin sheathing material, and the outer sheath is made of low-smoke halogen-free polyolefin sheathing material.
When the product requires anti-termites, the protective layer of sheathed wire and cable adopts corresponding anti-termite low-smoke low-halogen or low-smoke halogen-free sheathing material.
When the product requires anti-termites, the protective layer of sheathed wire and cable adopts corresponding anti-termite low-smoke low-halogen or low-smoke halogen-free sheathing material.
