Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TAIYI
-
Wavelength:
-
1070nm
-
Dimensions:
-
1200*600*1200mm
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
Laser Source
-
Product name:
-
Handheld Laser Welding Machine
-
Laser beam:
-
1064-1080nm
-
Positioning accuracy:
-
Red light position
-
Demand for electricity:
-
AC220v/50HZ/30A
-
Cooling:
-
Water cooling
-
Certification:
-
ce
-
Application:
-
Metal Welding Products
-
Laser Power:
-
1000W/1500W/2000W/3000W optional
-
Logo:
-
Can be customized
Quick Details
-
Max. Output Power:
-
1000W-3000W
-
Use:
-
Metal Welding
-
Laser Source Brand:
-
MAX RAYCUS IPG JPT optional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TAIYI
-
Wavelength:
-
1070nm
-
Dimensions:
-
1200*600*1200mm
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
Laser Source
-
Product name:
-
Handheld Laser Welding Machine
-
Laser beam:
-
1064-1080nm
-
Positioning accuracy:
-
Red light position
-
Demand for electricity:
-
AC220v/50HZ/30A
-
Cooling:
-
Water cooling
-
Certification:
-
ce
-
Application:
-
Metal Welding Products
-
Laser Power:
-
1000W/1500W/2000W/3000W optional
-
Logo:
-
Can be customized
1000W 1500W 2kw Hot Sale Laser Welding Machine SS Stainless Steel Aluminum Iron Galvanized Sheet Handheld Laser Welders

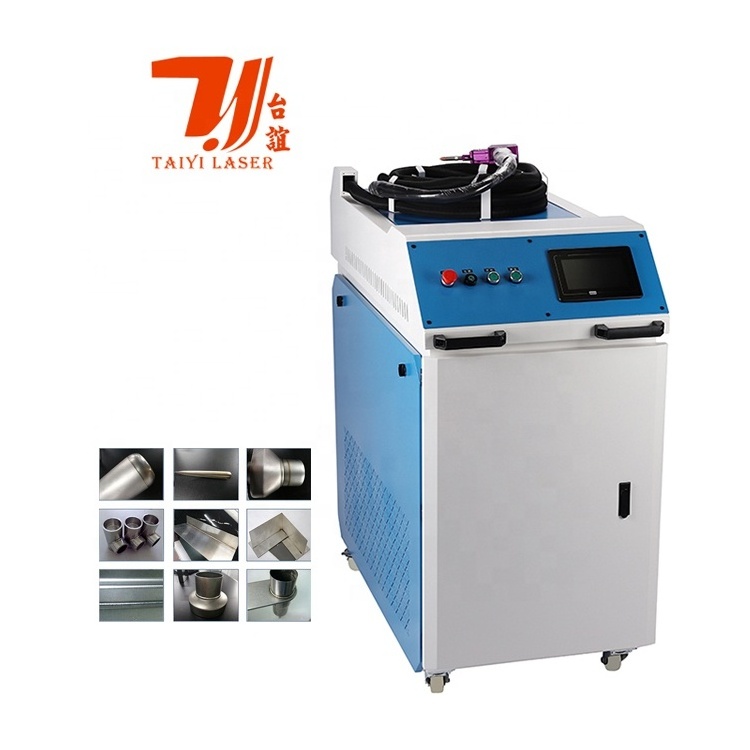

Handheld Laser Welding Machine
| Product Name | Handheld Laser Welding Machine | |||||
| Laser Power | 1000W 1500W 2000W optional | |||||
| Laser Source | Max JPT Raycus IPG optional | |||||
| Welding Head | Qilin Ospri optional | |||||
| Laser Wavelength | 1070nm | |||||
| Pulse Width | 0.5-15ms | |||||
| Pulse Frequency | ≤100Hz | |||||
| Spot adjusting range | 0.1-3mm | |||||
| Repeating precision | ±0.01mm | |||||
| Cabinet size | 600*1200*1200mm | |||||
| Cooling System | Water Cooling | |||||
| Voltage | 220V/3-Phase/50Hz | |||||
| Tig Welders | Laser Welders | |
| Heat input | Very high heat | Very low calories |
| Deformation | Easy to deform | No deformation |
| Welding spot | Large welding spot | Fine welding spot, adjustable spot |
| Exterior | Unsightly, need polishing | Smooth and beautiful, no need to sand |
| Perforation | Easy to pierce | Not easy to perforate, can be controlled |
| Protective gas | Need argon | Need argon |
| Precision | general | Precision |
| Processing time | Long time | Short time |
| Safety | Ultraviolet light, radiation | Radiation-free |
Contact me for more information
Handld Laser Welding Machine
1. Nozzle
Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of the focal position is ±15mm.
2. Wire Feeding Device:
Lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently.
3. Trachea Interface
Protective gas inlet.
4. Lead Signal Line
It is communicated with copper nozzles. When welding, contact with iron plate ground wire will produce a circuit, which plays a role of safety protection.
5. Protective Lens Mounting Port
The protective lens is equipped with water-cooled structure, so the protective lens can last longer. It is recommended to wipe the dust of protective lens once a day with alcohol-free cotton swab.
6. Circulating Water Channel
Cold water circulating structure is used to cool the reflector and gun body.
7. LCD
Used to show whether the parameters and signal state set by the system are normal.
8. Gun Handle
Aluminum a process, light and light grip comfortable.
After changing the structure of head and the position of the trigger button, it can be used for both left and right hands.
9. QBH Protective Cover
Connect with the laser end, pay attention to cleaning during installation to avoid dust entering the gun body.
Application Industries:
Handhel aer Welding Machine
Contact me for more information
1.After Sales
We provide 1-3 year’s guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.
2.Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasingand production procedure.
All finished machine we delivered are 100% strictly tested by our QC departmentand engineering department.
We will provide detailed Machine pictures and Test videos to customers before delivery.
3.OEM Service
Customized and OEM orders are welcome due to our aboundant experiences.All the OEM services are free, customer only need to provide us with your logodrawing. function requirements, colors etc.
No MOQ required.
4.Privacy
None of your personally identifiable information ( such as your name, address, emailaddress, bank info, etc ) will be disclosedor shared with any third partes.
Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to call us if you have any emergency questions.
5.Payment terms
Alibaba Trade Assurance ( New,safe and popular payment terms)
30% T/T paid in advance as deposit, the balance paid before shipment.
lrevocable LC at sight.
Other payment terms: Paypal,Western Union and so on.
6.Documents Support
All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.
