Automatic Poultry Chicken Feeder Pan for Broiler House Floor Raising Equipment for Animal Feeders Line

Automatic Poultry Chicken Feeder Pan for Broiler House Floor Raising Equipment for Animal Feeders Line

FOB Reference Price: Get Latest Price

≥1 Sets

US $40

≥5 Sets

US $39

≥10 Sets

US $38

≥15 Sets

US $37

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Poultry Farm Chicken Feeding

Product name:: Automatic Poultry Farm Equipments Chicken Feeder

Usage:: Feeding Poultry

Material:: PP Plastic

Color:: Customized Color

Type:: Livestock Equipemnt

Feature:: Save Breeding Cost

Capacity:: Customized Size Based

Operation:: Auto Feeding Line System

Advantage:: Modern Environment Controlled Chicken Farm

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Muhe

Weight:: 12.6 KG

Application:: Poultry Farm Chicken Feeding

Product name:: Automatic Poultry Farm Equipments Chicken Feeder

Usage:: Feeding Poultry

Material:: PP Plastic

Color:: Customized Color

Type:: Livestock Equipemnt

Feature:: Save Breeding Cost

Capacity:: Customized Size Based

Operation:: Auto Feeding Line System

Advantage:: Modern Environment Controlled Chicken Farm

Products Description

SHANDONG MUHE

Automatic Pan Feeding Line System

For Chicken Farm

Introduce

Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device,an anti-perching device and a feed sensor. The main function of the system is to tans port the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the order to motor to make it working or stop.

Main Feature

1, Rills feed pan with special designed, can save feed;

2, No need to open the pan. Feed downfalls to the side of the shallow plate to make sure that even the birds stand outside

of the pans, they can also east feed conveniently;

3, Colorful, so that birds can easily see the feed pan and eat the feed;

4, PP( Polypropylene ) material, firm and durable, corrosion resistance, long time use;

5, Convenient to dismantle and easy to clean;

Product Paramenters

1, Silo type and ground hopper type;
2, Galvanized steel or fiberglass silo;
3, The conveying system is running smoothly. It can be quickly delivered to each feed trays and ensure adequate feed;
4, Silos volume can be specifically designed based on the number of chickens ( feed weight 0.65 T/CBM) ;
5, Automatic control box is equipped with imported material level sensor, greatly improving the conveying accuracy;
6, The height of trays could be adjusted according to chicken age, easy to remove and clean.

Details Images

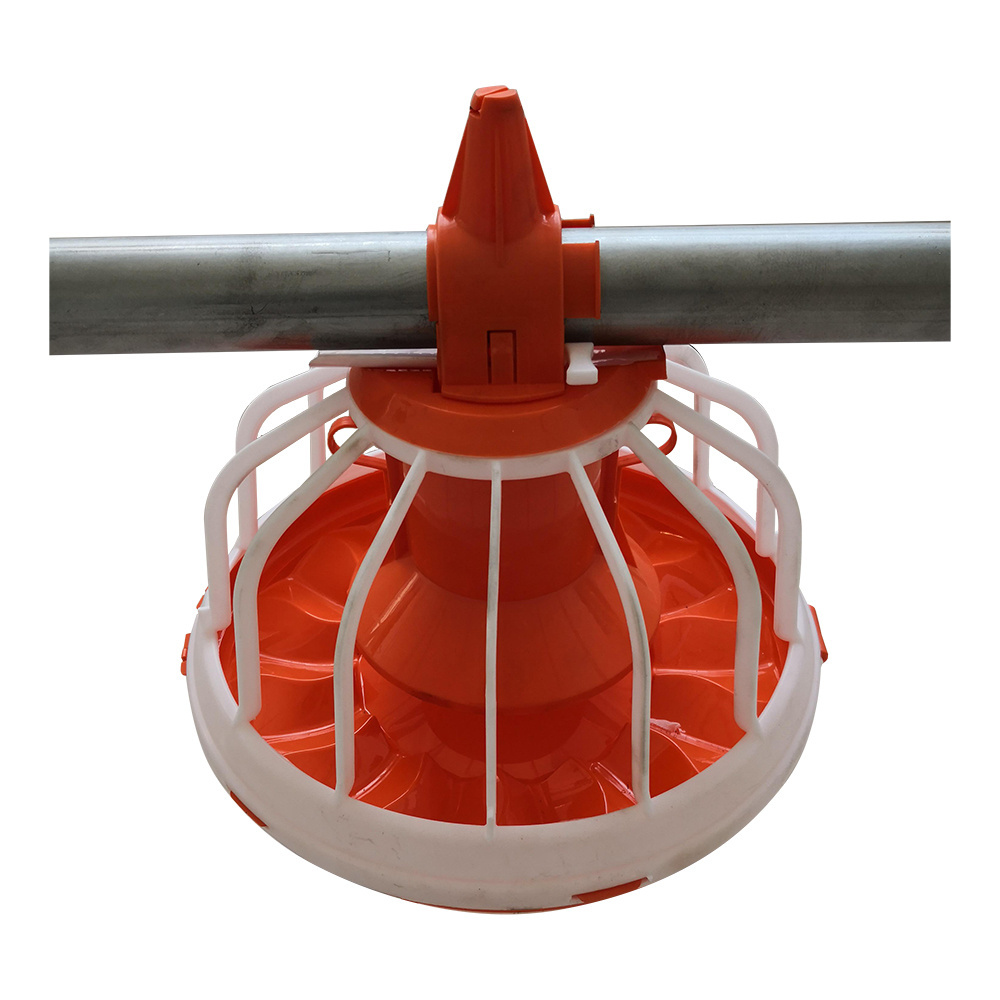

Feed Pan

Feed Pan can rotate in horizontal 360 degree. Easy and convenient feed level adjustment;

Top support has the shut off slid which can meet the customer's brooding and group expansion requirement in diff areas. Pan Bottom and Grill are locked together by the hinge, special designed feed cone flange can avoid the feed waste.

14 Grid & 16 Grid Can be Choose.

Grill No.	Feed Birds No./Pan	Grill Distance	Bird Density	Max feed for one bird/Day/Pan	Dimention
14	40-45	70mm	10-12/m 2	180g/bird	330-330mm
16	45-50	70mm	10-12/m 2	180g/bird	360-360mm
