High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal Application:
Point-to-point
Wireless bridging,client termination antenna
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Color:
-
silver
-
Mounting type:
-
pole mounting
-
Application:
-
Outdoor
-
Cable type:
-
Yagi antenna
-
Connector:
-
SMA etc
-
Name:
-

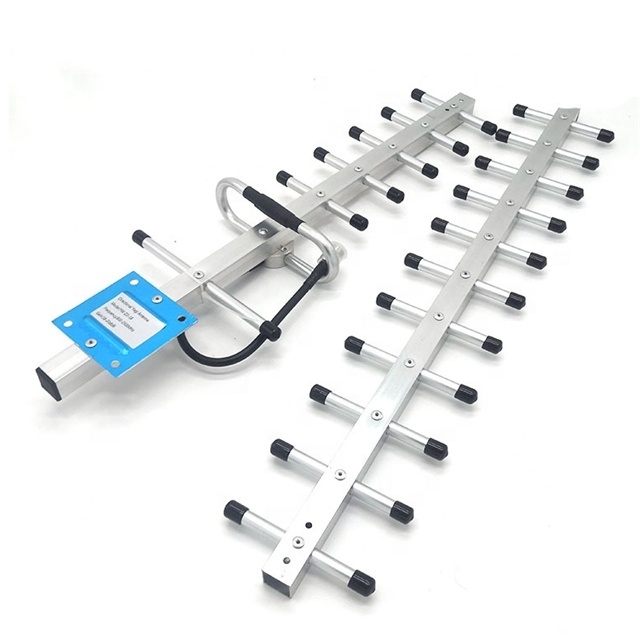

4G yagi antenna
-
Certification:
-
CE,ROHS
-
VSWR:
-
1.5
-
Gain:
-
28DBi
Quick Details
-
Type:
-
2.4GHz & 5GHz Antenna
-
Brand Name:
-
RY
-
Model Number:
-
RY-YG-20210810
-
Place of Origin:
-
Jiangsu, China
-
Color:
-
silver
-
Mounting type:
-
pole mounting
-
Application:
-
Outdoor
-
Cable type:
-
Yagi antenna
-
Connector:
-
SMA etc
-
Name:
-
4G yagi antenna
-
Certification:
-
CE,ROHS
-
VSWR:
-
1.5
-
Gain:
-
28DBi
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
|
Electrical Specifications
|
|
|
|
|||
|
Frequency range(MHz)
|
|
600-2700
|
|
|||
|
Bandwidth(MHz)
|
|
28
|
|
|||
|
Gain(dBi)
|
|
28
|
|
|||
|
Half-power beam width(°)
|
|
H:70 V:55
|
|
|||
|
VSWR
|
|
≤1.5
|
|
|||
|
Input Impedance(Ω)
|
|
50
|
|
|||
|
Polarization
|
|
Horizontal and Vertical
|
|
|||
|
Maximum input power(W)
|
|
50
|
|
|||
|
Lightning protection
|
|
DC Ground
|
|
|||
|
Input connector type
|
|
RP-SMA-J-custom connector
|
|
|||
|
Mechanical Specifications
|
|
|
|
|||
|
Dimensions-mm (Length)
|
|
630
|
|
|||
|
Antenna weight(kg)
|
|
0.3
|
|
|||
|
Operating temperature(°c)
|
|
-40~+60
|
|
|||
|
Rated Wind Velocity(m/s)
|
|
60
|
|
|||
|
Waterproof Standard
|
|
IP54/ IP65/ IP67
|
|
|||
|
Mounting way
|
|
Wall-mounted/ Pole-holding
|
|
|||
|
Mounting hardware(mm)
|
|
40-50
|
|
|||
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal Application:
Point-to-point
Wireless bridging,client termination antenna
Our Company
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
• Q: What’s your payment term?
A: We usually accept PAYPAL,T/T as the main payment term, and other payments can also be negotiated.
• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .
• Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now !!! Free sample and best answers are waiting for you.
