Quick Details
-
Material:
-
Irradiated cross-linked flexible polyolefins
-
Tensile Strength:
-
10.4
-
Color:
-
BK,RE,BL,YE,GR,BR,WH
-
Environmental Standard:
-
RoHS,Halogen Free
-
Certification:
-
REACH,IATF16949,RoHS
-
Shrink Ratio:
-
2:1
-
Working temperature(℃):
-
From -55 to 150
-
Feature:
-
Flexible
-
Minimum full recovery temperature(℃):
-
120
-
Flammability:
-
VW-1.
-
Advantage:
-
High temperature resistance high flame retardancy
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM/TUOYAN
-
Model Number:
-
TY-S150-2X
-
Material:
-
Irradiated cross-linked flexible polyolefins
-
Tensile Strength:
-
10.4
-
Color:
-
BK,RE,BL,YE,GR,BR,WH
-
Environmental Standard:
-
RoHS,Halogen Free
-
Certification:
-
REACH,IATF16949,RoHS
-
Shrink Ratio:
-
2:1
-
Working temperature(℃):
-
From -55 to 150
-
Feature:
-
Flexible
-
Minimum full recovery temperature(℃):
-
120
-
Flammability:
-
VW-1.
-
Advantage:
-
High temperature resistance high flame retardancy
|
Product Name
|
|
|

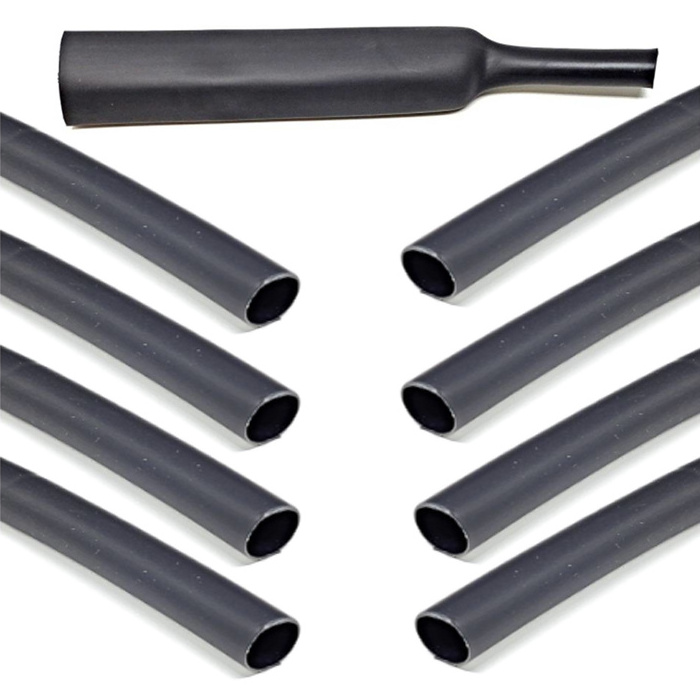

Heat Shrinkable Tube
|
|
|
|
|||||
|
Place of Origin
|
|
|
Suzhou, China
|
|
|
|
|||||
|
Model Number
|
|
|
TY-S150-2X
|
|
|
|
|||||
|
Material
|
|
|
Polyolefins
|
|
|
|
|||||
|
Application
|
|
|
Low Voltage
|
|
|
|
|||||
|
Rated Voltage:
|
|
|
600V
|
|
|
|
|||||
|
Type
|
|
|
Single Wall
|
|
|
|
|||||
|
Shrink Ratio
|
|
|
2:1
|
|
|
|
|||||
|
Radiol shrinkage
|
|
|
50%
|
|
|
|
|||||
|
Axial shrinkage
|
|
|
Φ0.6-Φ28≤±5%,Φ30-Φ50≤±10%
|
|
|
|
|||||
|
With heart rate(%)
|
|
|
≥65%
|
|
|
|
|||||
|
Certification
|
|
|
REACH,IATF16949,RoHS
|
|
|
|
|||||
|
Halogen Content
|
|
|
Halogen Free
|
|
|
|
|||||
|
Package
|
|
|
Reel,Stick,Bag,Box
|
|
|
|
|||||
|
Brand Name
|
|
|
TUOYAN,OEM
|
|
|
|
|||||
|
Flammability
|
|
|
VW-1.
|
|
|
|
|||||
|
Operating Temperature Range (℃ )
|
|
|
From -55 to 150
|
|
|
|
|||||
|
Minimum shrink temperature (℃ )
|
|
|
84
|
|
|
|
|||||
|
Minimum full recovery temperature (℃ )
|
|
|
120
|
|
|
|
|||||
|
Color
|
|
|
BK,RE,BL,YE,GR,BR,WH
|
|
|
|
|||||
|
Feature
|
|
|
Flexible
|
|
|
|
|||||
|
Usage
|
|
|
Insulating and protecting for components of high and low valtage of New energy vehicle battery's bus bar.
|
|
|
|
|||||
|
Area
|
|
|
New energy vehicle battery's bus bar pack.
|
|
|
|
|||||
|
Benefits
|
|
|
Excellent in insulation,High flame retardant with orange
|
|
|
|
|||||
|
Special Character
|
|
|
Special for New energy vehicle battery's bus bar pack.
|
|
|
|
|||||
