Quick Details
-
Model Number:
-
sx
-
Product name:
-
copper clad aluminum busbar
-
Material:
-
copper, aluminum
-
Process:
-
Rolling
-
Usage:
-
electrical transition
-
Feature:
-
Anti-electrochemical corrosion,electrical and thermal conductivity
-
Size:
-
Customized
-
Thickness:
-
Customized
-
Copper volume ratio:
-
Customized
-
OEM/ODM:
-
Accepted
-
Color:
-
natural
Quick Details
-
Voltage:
-
low voltage, MediumVoltage, high Voltage
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sanxie
-
Model Number:
-
sx
-
Product name:
-
copper clad aluminum busbar
-
Material:
-
copper, aluminum
-
Process:
-
Rolling
-
Usage:
-
electrical transition
-
Feature:
-
Anti-electrochemical corrosion,electrical and thermal conductivity
-
Size:
-
Customized
-
Thickness:
-
Customized
-
Copper volume ratio:
-
Customized
-
OEM/ODM:
-
Accepted
-
Color:
-
natural
Specification
Products Description

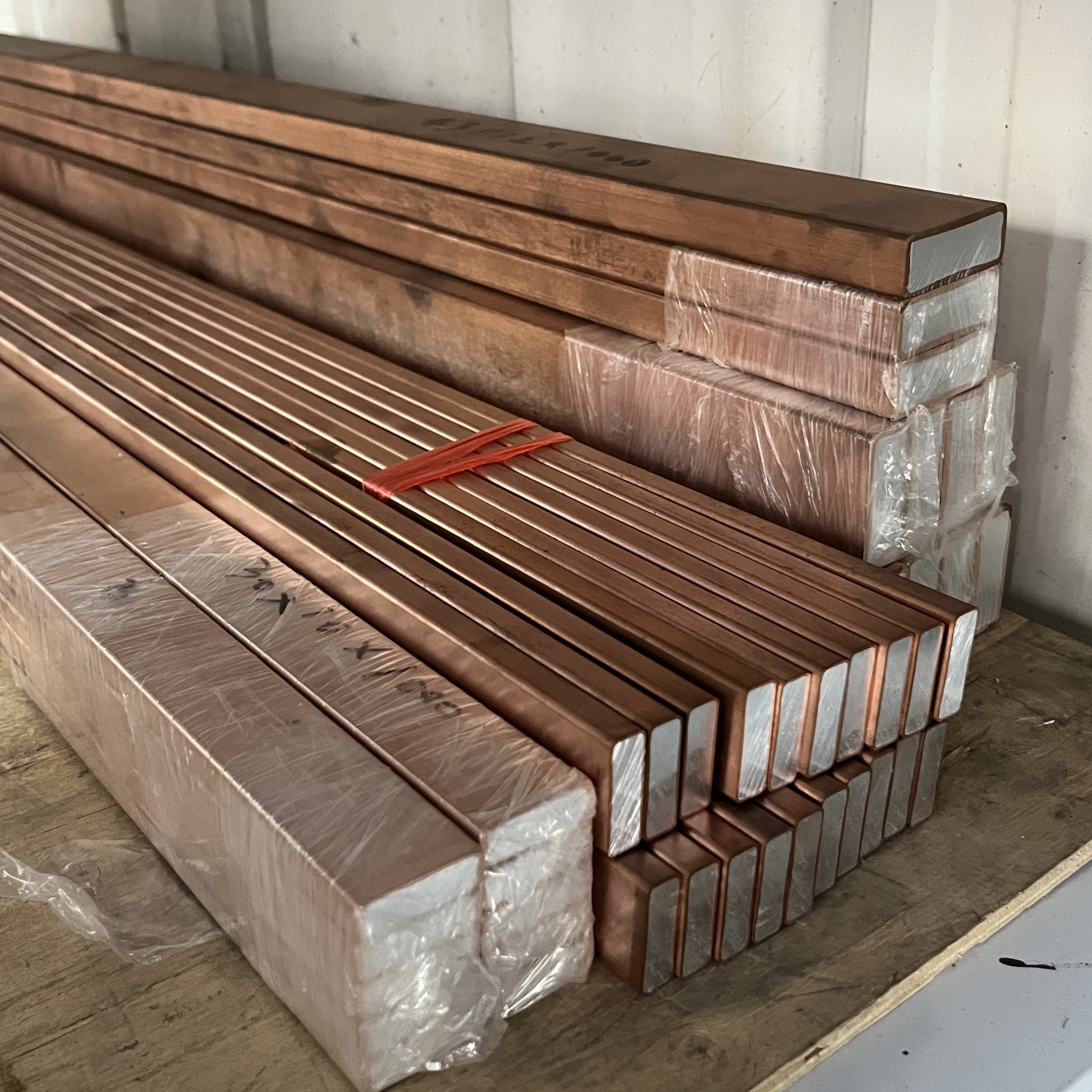

Copper clad aluminum
material
——
great alternative to pure copper
Copper clad aluminum delivers cost and weight saving advantages over solid copper, yet retains the surface properties of a copper busbar. It is often possible to substitute a copper bar with a copper-clad aluminum bar of equal dimensions, which yields the maximum cost saving.
1.Process:
Rolling process allows them to be permanently and firmly bonded in an oxygen free environment, ensuring 100% metallurgical bonding.
CCA is made by bonding a layer of pure copper onto an aluminum core.
2.
All the Advantages of Copper for Less
（1）
Good conductivity
While drawn our CCA obviously contains less copper than pure copper , it delivers virtually the same conductivity . It has to do with an electrical phenomenon known as “skin effect.”Because of it,a less expensive metal for the core with copper on the outer layer can achieve the virtually the same conductivity.
（2）Cost Savings
Copper-clad aluminum typically costs less than solid copper. copper is consistently more expensive than aluminum. Copper-clad aluminumonly has a small amount of copper for the cladding.
（3）Lightweight
Not only does it cost less than solid copper, but copper-clad aluminum is also lighter as well. Copper weighs roughly 70 percent more than aluminum, in fact. Copper-clad aluminum consists mostly of aluminum. The lightweight properties of copper-clad aluminum make it easy to install.
（4）High bonding strength
High bonding strength allows copper-clad aluminum busbars to be Deep-processed,such as bending, drilling and stamping,with reliable service life.
3.Benefits in brief:
60% lower weight compared to copper conductors Up to 40% cost reduction compared to copper conductors 60% lower surface contact resistance compared to aluminium conductors Reduced freight costs compared to copper conductors Reduced susceptibility to raw material price fluctuations Simplified electrical connections between aluminium and copper components
60% lower weight compared to copper conductors Up to 40% cost reduction compared to copper conductors 60% lower surface contact resistance compared to aluminium conductors Reduced freight costs compared to copper conductors Reduced susceptibility to raw material price fluctuations Simplified electrical connections between aluminium and copper components
4.
customization:
In addition to the above structure, there are other different copper clad aluminum structures
.
We not only provide materials directly, but also support various processing customization
|
customize
|
material
|
Copper:Purple Copper T2 (C1100) /Brass H62 / H65
Aluminum: 1060 / 1070/ 8010 / 1100 / 3003 /5052
Others:Steels/Nickel/Zinc......
|
|
|
shape
|
Sheet / Plates / Strip / terminal lug / boss / foil / Washers / PG clamp / earthing block / Customized Design
|
|
|
Thickness
|
0.07mm/ 0.1mm/14.5mm/according to your needs.
|
|
|
Width
|
according to your needs.
|
|
|
Length
|
according to your needs.
|
|
|
Ratio
|
according to your needs.
|
|
|
Configuration
|
Whether it is Inlay clad, Overlay clad, or welded clad, the specific configuration can be customized
|
