Quick Details
-
Weight:
-
5kg/15kg/20kg/spool
-
Flux Content:
-
0.03%
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Ocean Bridge
-
Model Number:
-
AWS ER70S-6
-
Application:
-
low carbon steel and low alloy steel structures
-
welding wire mode:
-
AWS er70s-6
-
application:
-
CO2 shield welding
-
Suitable welding location:
-
all position welding
-
material:
-
mild steel wire
-
effect:
-
beautiful seam
-
melting speed:
-
high melting speed
-
fusion:
-
high fusion effiency
-
suitable for:
-
100%CO2 welding work
-
good for:
-
co2 and Argon mixed protective welding
-
surface:
-
copper coated
Quick Details
-
Material:
-
Carbon steel wire and copper coated welding wire
-
Diameter:
-
0.8/0.9/1.0/1.2/1.6mm
-
Melting Point:
-
2700
-
Weight:
-
5kg/15kg/20kg/spool
-
Flux Content:
-
0.03%
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Ocean Bridge
-
Model Number:
-
AWS ER70S-6
-
Application:
-
low carbon steel and low alloy steel structures
-
welding wire mode:
-
AWS er70s-6
-
application:
-
CO2 shield welding
-
Suitable welding location:
-
all position welding
-
material:
-
mild steel wire
-
effect:
-
beautiful seam
-
melting speed:
-
high melting speed
-
fusion:
-
high fusion effiency
-
suitable for:
-
100%CO2 welding work
-
good for:
-
co2 and Argon mixed protective welding
-
surface:
-
copper coated

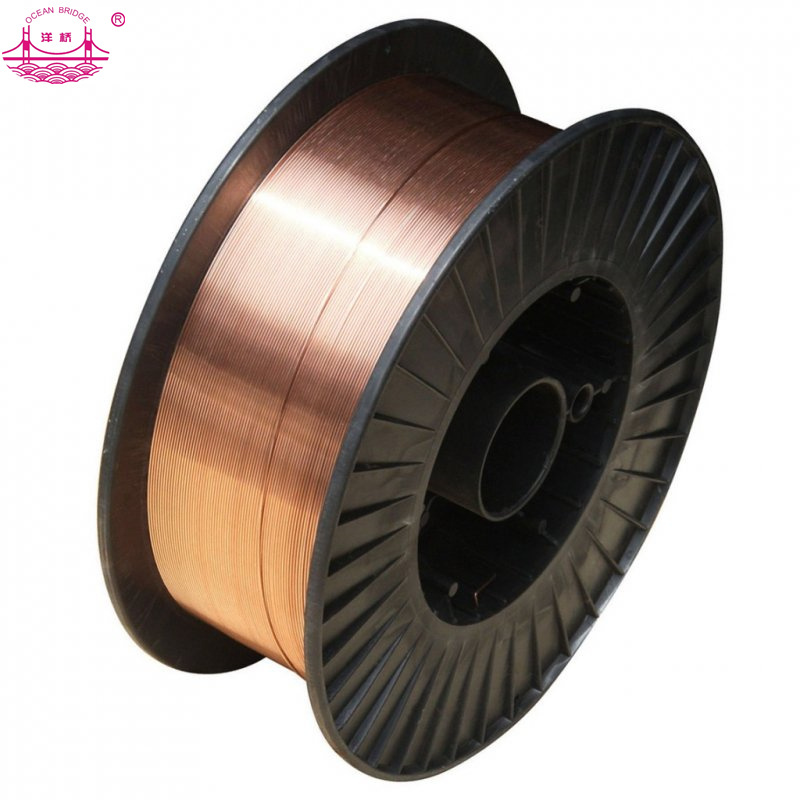

Good quality copper coated MS welding wire aws a5.18 ER70S-6
1. American standard : AWS ER70S-6 Chinese standard:GB ER50-6
2. Wire diameter: 0.8/0.9/1.0/1.2/1.6mm
3. Chemical composition:C,Mn, Si,S,P, Cu
4.Welding wire er70s-6 has smooth surface and without burr, scratch, rust sacale or other defects.
5.Welding wire er70s-6 is copper coated welding wire .
6.When it is worked in the welding machine the feeding wire is very smoothly .
7.the welding wire is suitable for single welding seam welding and mult-welding seam welding ,especially for that has a beautifu smooth seam request welding work. it is also suitable for hot rolled oxide coating steel plate, and suitalbe for all position welding work.
8.Stable electric arc with high melting speed, high fusion effiency, less welding spatter all excellet welding work.
9.Application filed:
Suitable for structure steel weldnig as ship manufacturing, bridge building , vehicles producing ,containers welding, pressure vessel welding , railway construction and mechanical parts producing . Especially for thin steel plates welding , mild steel , and low alloy structure steel welding .
10.This welding wire is suitable for 100% CO2 , argon and CO2 mixed , argon and O2 gas protective welding.
11.Wire Chemical Property :
|
C |
Mn |
Si |
S |
P |
Cu |
|
0.06~0.15 |
1.40~1.85 |
0.80~1.15 |
≤ 0.035 |
≤ 0.025 |
≤ 0.02 |
12.Mechanical Property
|
Tensile strength |
Yield strength |
Elongation |
V-type charpy impact value (ambient temp) J |
|
≥ 500 |
≥ 420 |
≥ 22 |
≥ 27(-29) |
13.Application current and voltage:
|
Diameter |
0.6mm |
0.8mm |
0.9mm |
1.0mm |
1.2mm |
1.6mm |
|
Application Current(A) |
25~110 |
40~140 |
50~200 |
70~250 |
80~350 |
170~450 |
|
Voltage(V) |
12~19 |
16~21 |
17~25 |
17~27 |
18~30 |
23~43 |
|
Weight /spool(kg) |
1/5/10 |
5/15/20 |
5/15/20 |
5/15/20 |
5/15/20 |
15/20 |
Work in welding machine with uninterrupted wire feeding:
Produce processing:
We have 25 producing history ,and 10years international business experience:
Products information:
Packing : plastic reel, wrap around with paper ,plastic outside, carton.
15kg/carton X72 on a pallet
5kg/carton X200 on a pallet
