Quick Details
-
Brand Name:
-
YEZHEN
-
Model Number:
-
YZAL-PS5
-
Width:
-
1.22M, 0.2m-1.5m
-
Length:
-
2.44M, 1.0m-6.0m
-
Material:
-
Stainless Steel plate, galvanized steel plate, aluminum plate
-
Surface:
-
Natural, powder coated, polishing
-
Thickness:
-
0.3mm-120mm
-
Perforation mode:
-
Perforation mode: Straight, 45°, 60°staggered pattern
-
Hole type:
-
Round hole, square hole, hexagonal hole, diamond hole, decorative hole
-
Certificate:
-
ISO9001:2008, CE
-
MOQ:
-
50Pieces
-
Packing:
-
Pallet or wooden case
Quick Details
-
Grade:
-
Stainless steel, galvanized steel, aluminum
-
Tolerance:
-
±3%
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YEZHEN
-
Model Number:
-
YZAL-PS5
-
Width:
-
1.22M, 0.2m-1.5m
-
Length:
-
2.44M, 1.0m-6.0m
-
Material:
-
Stainless Steel plate, galvanized steel plate, aluminum plate
-
Surface:
-
Natural, powder coated, polishing
-
Thickness:
-
0.3mm-120mm
-
Perforation mode:
-
Perforation mode: Straight, 45°, 60°staggered pattern
-
Hole type:
-
Round hole, square hole, hexagonal hole, diamond hole, decorative hole
-
Certificate:
-
ISO9001:2008, CE
-
MOQ:
-
50Pieces
-
Packing:
-
Pallet or wooden case

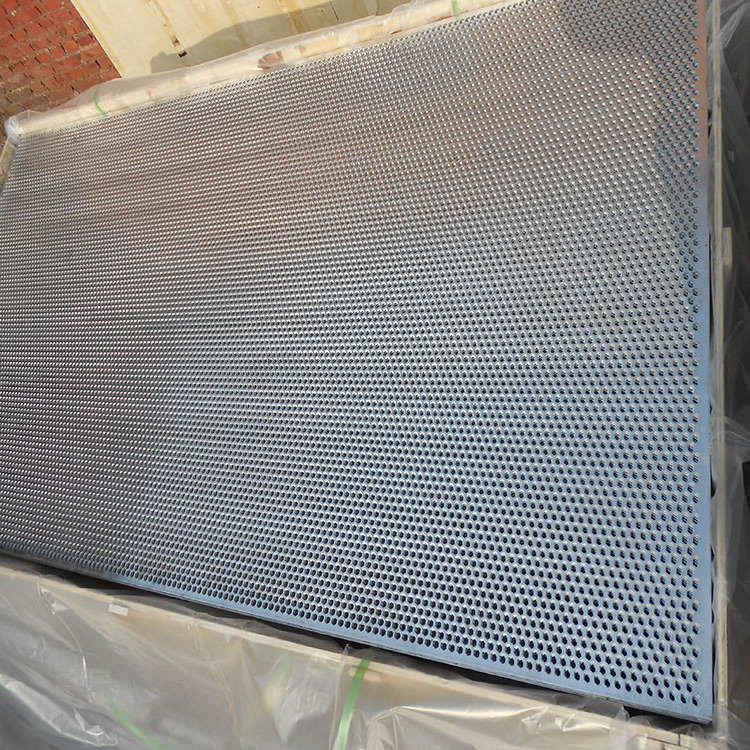

Perforated metal is one of the most versatile and popular metal products on the market today. Perforated sheet can range from light to heavy gauge thickness and any type of material can be perforated, such as perforated carbon steel. Perforated metal is versatile, in the way that it can have either small or large aesthetically appealing openings. This makes perforated sheet metal ideal for many architectural metal and decorative metal uses. Perforated metal is also an economical choice for your project. Our perforated metal filters out solids, diffuses light, air, and sound. It also has a high strength-to-weight ratio.
Specification of perforated metal sheets:
Material: Carbon steel plate, Galvanized steel plate, Stainless steel plate, Aluminum plate, Aluminum zinc steel plate.
Width: under 1.8m.
Length: under 6.0m.
Perforation mode: Straight, 45°, 60°staggered pattern.
Surface Finish: Natural, galvanized, powder coated, painted, polishing.
|
Plain Steel Perforated Metal |
|||||
|
Hole Diameter |
Staggered Centers |
Sheet Thickness |
Area |
Perforated Area Percent |
|
|
0.045" |
1.14mm |
0.066’’ |
0.033-0.039" |
0.84-0.99mm |
37.00% |
|
1/16" |
1.59mm |
3/32" |
0.027-0.033" |
0.68-0.84mm |
41.00% |
|
1/16" |
1.59mm |
1/8" |
0.027-0.066" |
0.68-1.68mm |
23.00% |
|
5/64" |
1.98mm |
1/8" |
0.027-0.053" |
0.68-1.35mm |
35.00% |
|
0.081" |
2.06mm |
1/8" |
0.053-0.066" |
1.35-1.68mm |
38.00% |
|
3/32" |
2.38mm |
5/32" |
0.053-0.066" |
1.35-1.68mm |
33.00% |
|
1/8" |
3.17mm |
3/16" |
0.027-0.127" |
0.68-3.23mm |
40.00% |
|
5/32" |
3.97mm |
3/16" |
0.027-0.066" |
0.68-1.68mm |
63.00% |
|
3/16" |
4.76mm |
1/4" |
0.027-0.127" |
0.68-3.23mm |
50.00% |
|
1/4" |
6.35mm |
3/8" |
0.033-0.111", 0.25" |
0.84-2.82mm, 6.35mm |
40.00% |
|
3/8" |
9.52mm |
1/2" |
0.053-0.082", 3/16" |
1.35-2.08mm, 4.76mm |
51.00% |
|
3/8" |
9.52mm |
9/16" |
0.059", 0.119" |
1.50mm, 3.02mm |
40.00% |
|
1/2" |
12.70mm |
11/16" |
0.033-0.127", 3/16" |
0.84-3.23mm, 4.76mm |
48.00% |
|
1/4" Hex |
6.35mm Hex |
0.285 |
0.027-0.033 |
0.68-0.84mm |
76.00% |
The hole type you can choose:
Normal Application of 4'x8' Perforated steel sheet:
Packing & Loading:
FAQ
1. Are you a trading company or manufacturer?
-We are manufacturer with more than10 years production experience, and have our own factory in Anping, Hebei.
2 . Can you send me a sample? Is it free?
- Yes, the samples is free, but the courier charge should be on your side.
3
. The price that you offer me, Could be more discount?
- It will depend on order quantity.
4
. Is there any warranty, can exchange it?
- Normally our warranty period is six months. If it is quality problem, we support a replacement, refund.
5 . How about the Delivery time?
- Normally within 10 days after receiving the advance payment. Samples will be prepared within 1-3 Days.
What we offer:
- FREE samples will be provided within 1-2 days. All freight charges are shouldered by clients.
- Products of fine quality, favorable price and satisfactory post-sale service.
- Convenience to buy container loads of mixed products.
- Speedy delivery and standardized transportation service.
- Diversified trade terms such as Agency, International bidding, Counter trade, OEM, Assembling or Processing on supplied materials or designs.
