Quick Details
-
Warranty:
-
Full 12 months warranty
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JLT (OEM accept)
-
Model Number:
-
JD6000SE
-
Speed:
-
3000RPM
-
Weight:
-
165kgs
-
Product Name:
-

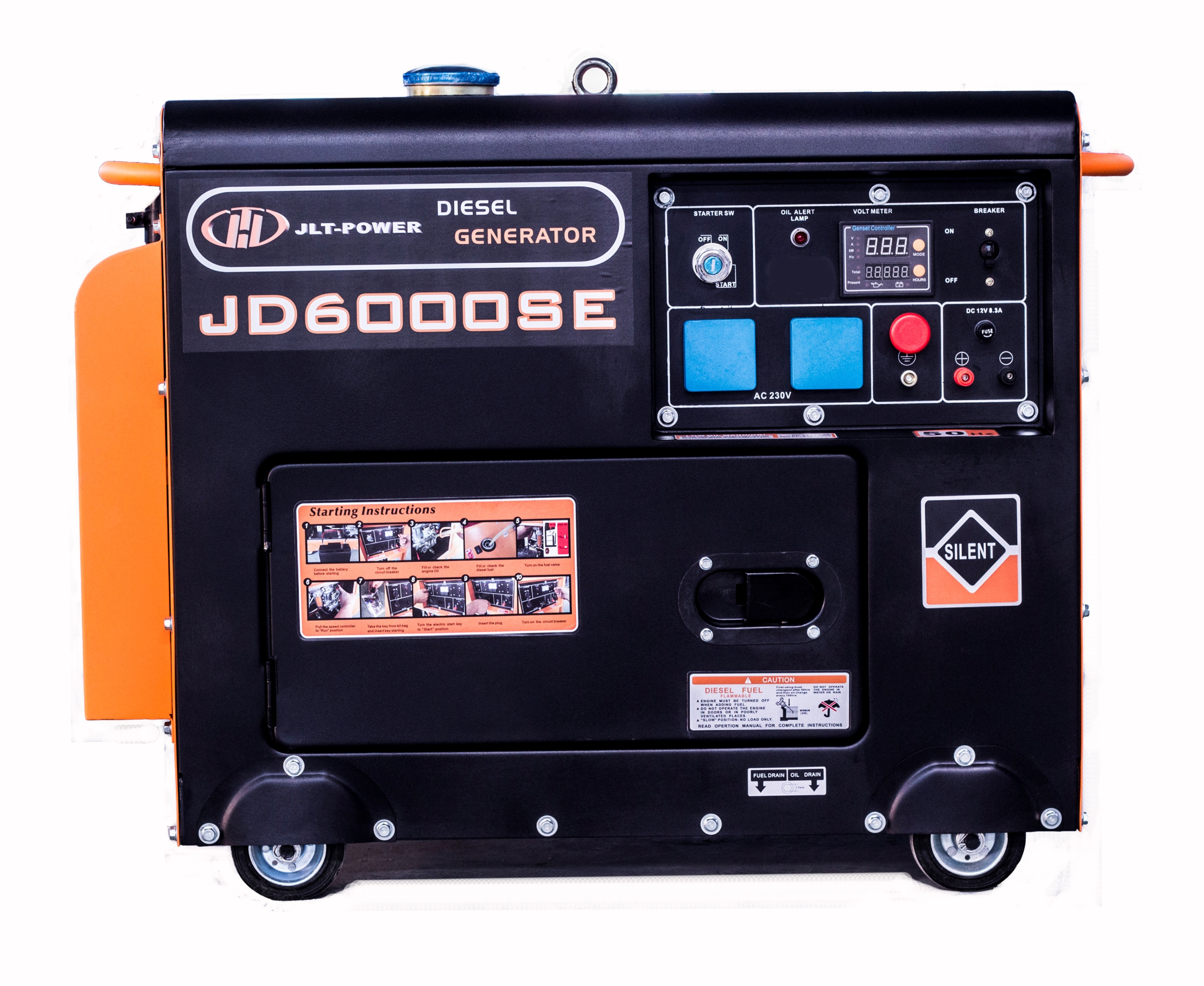

4.5kw Portable Silent Diesel Generator
-
Engine model:
-
JD186
-
Engine type:
-
single cylinder, 4-stroke, air-cooled DIESEL engine
-
Phase:
-
Single Phase
-
Continuous work(h):
-
6.5
-
Alternator site:
-
2 pole, with AVR
-
Starting System:
-
Electric start
-
Color:
-
Customer Required
-
QC control:
-
3 Times Testing before Packing
-
Function:
-
Small Generator Provide Electric Power
-
Certification:
-
ISO, CE, EMC, GS
Quick Details
-
Rated Voltage:
-
110V/220V/230V/240V/380V
-
Rated Current:
-
Depend on Frequency, Voltage
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
Full 12 months warranty
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JLT (OEM accept)
-
Model Number:
-
JD6000SE
-
Speed:
-
3000RPM
-
Weight:
-
165kgs
-
Product Name:
-
4.5kw Portable Silent Diesel Generator
-
Engine model:
-
JD186
-
Engine type:
-
single cylinder, 4-stroke, air-cooled DIESEL engine
-
Phase:
-
Single Phase
-
Continuous work(h):
-
6.5
-
Alternator site:
-
2 pole, with AVR
-
Starting System:
-
Electric start
-
Color:
-
Customer Required
-
QC control:
-
3 Times Testing before Packing
-
Function:
-
Small Generator Provide Electric Power
-
Certification:
-
ISO, CE, EMC, GS
Products Description
|
Specifications
|
|
|
Diesel Powered
|
|
|||
|
|
|
|
JD6000SE-3
|
|
|||
|
GENERATOR
|
Type
|
|
three phase generator
|
|
|||
|
|
Voltage Regulate
|
|
AVR
|
|
|||
|
|
AC Frequency (Hz)
|
|
50
|
60
|
|||
|
|
AC Output Voltage (V)
|
|
220;230;240
|
110/220;120/240
|
|||
|
|
Cont. AC Output (KW)
|
|
4.5
|
5.0
|
|||
|
|
Max. AC Output (KW)
|
|
5.0
|
5.5
|
|||
|
|
DC Output (V/A)
|
|
12/8.3
|
|
|||
|
ENGINE
|
Model
|
|
JD186
|
|
|||
|
|
Type
|
|
4-stroke, single cylinder with Air-cooled
|
|
|||
|
|
Bore x Stroke (mm)
|
|
86×72
|
|
|||
|
|
Displacement (ml)
|
|
418
|
|
|||
|
|
Max. output (HP/rpm)
|
|
10/3600
|
|
|||
|
|
Fuel
|
|
Diesel
|
|
|||
|
|
Fuel consumption(g/kw.h)
|
|
<282
|
|
|||
|
|
Lubrication oil
|
|
SAE10W/30
|
|
|||
|
|
Starting System
|
|
Electric
|
|
|||
|
|
Operating NoiseLevel (7m)dB(A)
|
|
72
|
|
|||
|
UNIT
|
Fuel Tank Capacity (L)
|
|
15
|
|
|||
|
|
Lubrication oil capacity(L)
|
|
1.65
|
|
|||
|
|
Dimensions L×W×H (mm)
|
|
935 × 552 × 700
|
|
|||
|
|
Net Weight (kg)
|
|
160
|
|
|||
|
|
Gross Weight (kg)
|
|
165
|
|
|||
|
|
20/40FT pcs
|
|
72/144
|
|
|||
Details Images
Certifications
Company Introduction
Packing&Shipping
After Sales Service
(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
