Quick Details
-
Output Speed:
-
3.8 ~ 1,600 rpm
-
Warranty:
-
others
-
Weight (KG):
-
0.1 KG
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Sha Yang Ye
-
Product Name:
-

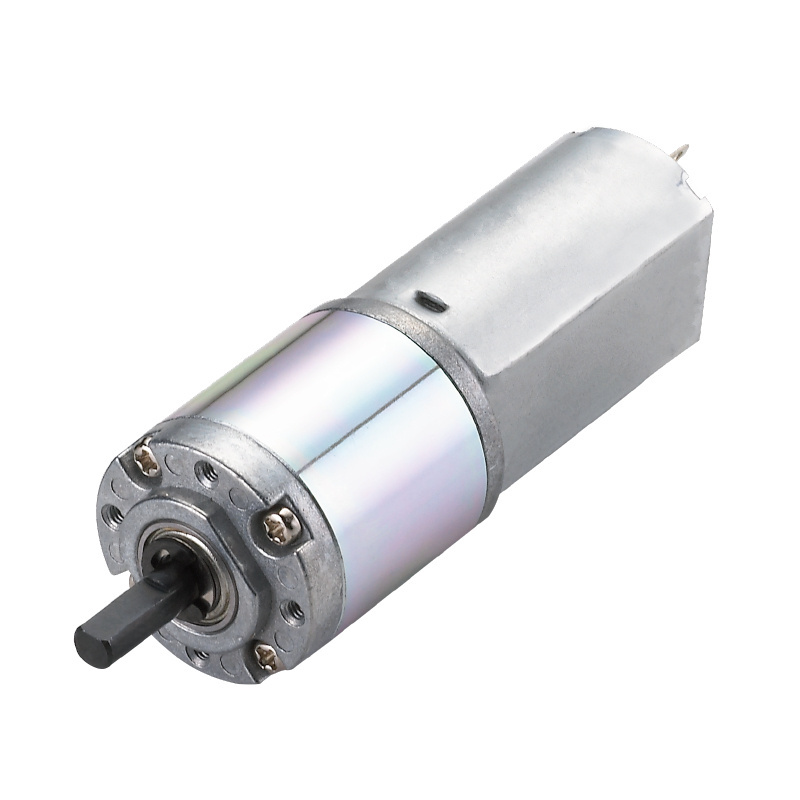

22mm Planetary Gear Motor
-
Rated Voltage:
-
12V/24V
-
Diameter of Gear Motor:
-
22 mm
-
Optional Motor Type:
-
PMDC Motor
-
Typical Applications:
-
Home Appliance, Consumer Products
-
Sample Service:
-
Yes
-
Gear Type (First Stage from motor):
-
Plastic, Metal
-
Optional Bearing Type:
-
Sleeve Bearing, Ball Bearings
-
Gear Ratio:
-
1/4~1/1996
-
Encoder:
-
Magnetic or Optical
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
77 ~ 3000 gf-cm
-
Input Speed:
-
8000 ~ 9000 rpm
-
Output Speed:
-
3.8 ~ 1,600 rpm
-
Warranty:
-
others
-
Weight (KG):
-
0.1 KG
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Sha Yang Ye
-
Product Name:
-
22mm Planetary Gear Motor
-
Rated Voltage:
-
12V/24V
-
Diameter of Gear Motor:
-
22 mm
-
Optional Motor Type:
-
PMDC Motor
-
Typical Applications:
-
Home Appliance, Consumer Products
-
Sample Service:
-
Yes
-
Gear Type (First Stage from motor):
-
Plastic, Metal
-
Optional Bearing Type:
-
Sleeve Bearing, Ball Bearings
-
Gear Ratio:
-
1/4~1/1996
-
Encoder:
-
Magnetic or Optical
Product Description
Specification
|
Place of Origin
|
Taiwan
|
|
Brand Name
|
Sha Yang Ye
|
|
Product Name
|
22mm Planetary Gear Motor
|
|
Gearing Arrangement
|
Planetary
|
|
Model Number
|
IG22XXXX-XXXXR
|
|
Diameter of Gear Motor
|
22mm
|
|
Rated Voltage
|
12V/24V
|
|
Gear Ratio
|
1/4~1/1996
|
|
Weight (KG)
|
0.06~0.1
|
|
No Load Speed
|
8000 ~ 9000 rpm
|
|
Rated Torque
|
77 ~ 3000 gf-cm
|
|
Rated Speed
|
3.8 ~ 1600 rpm
|
|
No Load Current
|
≤ 70, ≤ 40 mA
|
|
Rated Output
|
1.5 W/1.7 W
|
|
Customized Support
|
OEM, ODM, OBM
|
|
Optional Motor Type
|
PMDC Motor
|
|
Sample Service
|
Yes
|
|
Gear Type (First Stage from motor)
|
Plastic, Metal
|
|
Optional Bearing Type
|
Sleeve Bearing, Ball Bearings
|
|
Applicable Industries
|
Boat, Car, Electric Bicycle, Home Appliance, Smart Home, Cosmetic Instrument
|
