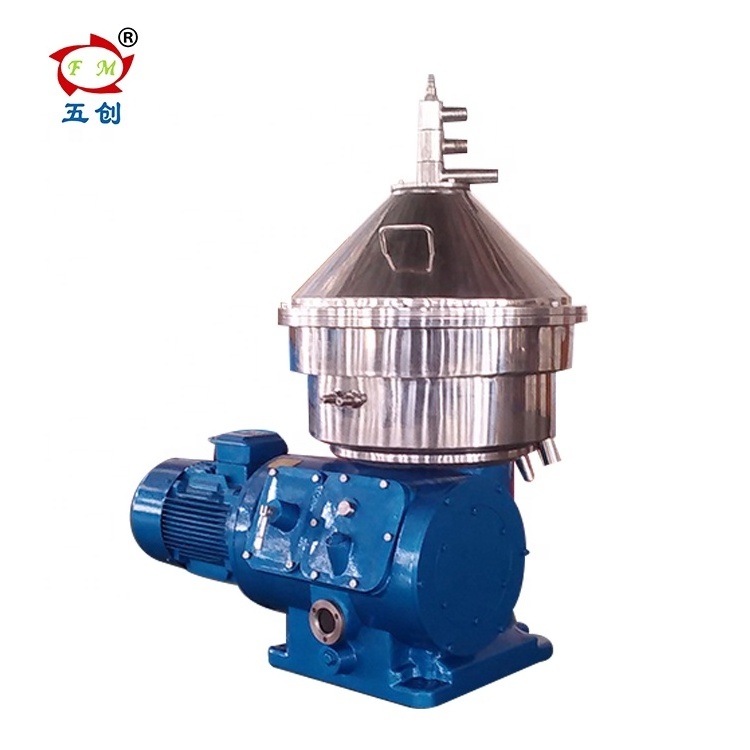

ZYDH series disc centrifuge continuous flow centrifuge for coconut oil separator

Product Description

Appication

Two phase of high speed continuous flow centrifuge:

Disc separator can complete two operations: liquid-solid s eparation (low concentration slurry separation),

said clarifying operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said

separating operation. Disc separator with its compact, small footprint, high production capacity and other

characteristics, It is widely used in blood separation,chemical, pharmaceutical, light industry, food,

biological engineering, and transportation.

Three phase of plant oil centrifuge:

Plant oil separator is the main equipment for a vegetable oil continuous refining system,

can be used for plant oil refining, continuous degreasing, dephosphorization, de-soap,

dehydration and other procedures.

Reducing the harmful ingredients in vegetable oil, to meet national standards.

For the coconut oil/ soybean oil / palm oil, we have exported to many countries.

Features

1. High Speed and high separation factor(7200 r/min )

2. running balance

3. simple operation

4.low oil consumption.

5. Automatically discharging

6. continuous operation.

7. All the key parts of the machine bearing all use imported bearing((brand SKF)

8. Drum adopts 0Cr13Ni4Mo material that is steel high purity, good performance.

9. In order to meet different requirements of production scale, the machine adopt bottom washing. Facilitate liquid seal and exclusive soap, the heart pump discharge the material, reducing system

operating pressure. Regulate different specific gravity ring, can be suitable for all kinds of oil, so that

better separation.

Process of vco production

Technical parameters

Technical parameters

Model	Capacity (L/h)	Basket Diameter (mm)	Rotation Rate of Drum (r/m)	Separation factor	Power (KW)	Slag discharge way	Weight (kg)	Dimension (mm*mm*mm)
ZYDH270	2000	270	7200	6950	4	automatic	550	865*645*1100
ZYDH315	3000	315	6500	7000	5.5	automatic	650	900*600*1150
ZYDH385	4000	385	6500	7500	7.5	automatic	750	1100*1050*1250
ZYDH430	5000	430	6000	8050	11	automatic	900	1200*950*1400
ZYDH470	8000	470	5800	8500	18.5	automatic	1100	1250*1000*1550

Main parts

Main Parts

The control box need to customize, if you need the control box, pls inform us.

Packaging & Shipping

Our Services

Services

Pre-Sales Service	After-Sales Service
* Inquiry and consulting support. * Sample testing support. * View our Factory.	* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.

1. 12 months guarantee period from machine arrive date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4.7* 24 hours technical consultation.

5.Your workers could get trained both in our factory and yours.

6.Routine tracing till the machine work properly will be done timely.

7.We will remind you to do the normal maintenance.

8.Your suggestions or any comments & reflection would be treated in priority.

9.Marketing team will visit you during our visit to your country if your require.
