Quick Details
-
Warranty:
-
5years
-
Brand Name:
-
NamKoo
-
Model Number:
-
435W-455W
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2096*1039*30mm
-
Project Type:
-
Design, Supply And Installation.
-
Application:
-
Solar Power System
-
Technical Support:
-
Yes, Can Be Customized.
-
Solar cell:
-
Mono 166*166 Cell
-
Mounting Type:
-
Flat Roof / Sloping / Ground.
-
Inverter:
-
Pure Sine Wave.
-
Installation Manual:
-
Yes.
-
Load Power (W):
-
Design And Build.
-
Serve Life:
-
30 Years.
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass
-
Panel Efficiency:
-
420W~460W
-
Warranty:
-
5years
-
Brand Name:
-
NamKoo
-
Model Number:
-
435W-455W
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2096*1039*30mm
-
Project Type:
-
Design, Supply And Installation.
-
Application:
-
Solar Power System
-
Technical Support:
-
Yes, Can Be Customized.
-
Solar cell:
-
Mono 166*166 Cell
-
Mounting Type:
-
Flat Roof / Sloping / Ground.
-
Inverter:
-
Pure Sine Wave.
-
Installation Manual:
-
Yes.
-
Load Power (W):
-
Design And Build.
-
Serve Life:
-
30 Years.
Product Description

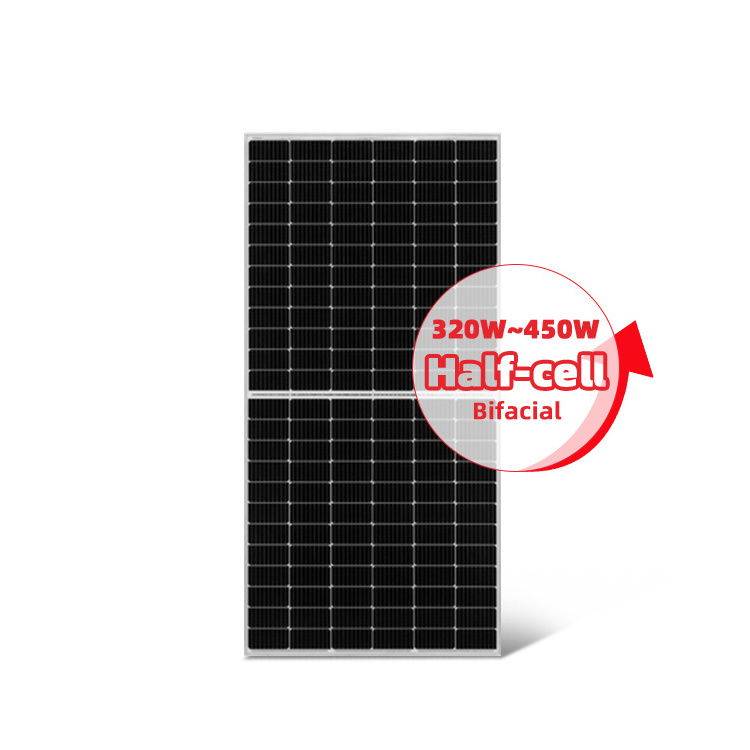

Specification
|
Module Type
|
AS-6M 144-BHC-435W~455W
|
|
|
|
|
|||||
|
Maximum Power(Pmax)
|
435W
|
440W
|
445W
|
450W
|
455W
|
|||||
|
Open Circuit Voltage(Voc)
|
49.6V
|
49.8V
|
50.0V
|
50.2V
|
50.4V
|
|||||
|
Short Circuit Current(Is c)
|
11.10A
|
11.16A
|
11.22A
|
11.28A
|
11.34A
|
|||||
|
Voltage at Maximum Power(Vmp)
|
41.2V
|
41.4V
|
41.6V
|
41.8V
|
42.0V
|
|||||
|
Current at Maximum Power(Imp)
|
10.56A
|
10.63A
|
10.70A
|
10.77A
|
10.84A
|
|||||
|
Module Eff ciency(%)
|
20.0
|
20.2
|
20.4
|
20.7
|
20.9
|
|||||
|
Operating Temperature
|
-40°C to+85℃
|
|
|
|
|
|||||
|
Maximum System Voltage
|
1500V(IEC)
|
|
|
|
|
|||||
|
Fire Resistance Rating
|
Class C
|
|
|
|
|
|||||
|
Maximum Series Fuse Rating
|
20A
|
|
|
|
|
|||||
|
*STC
|
Irradiance1000W/m², Cell temperature 25C, AM 1.5; Tolerance of Pmax:±3%; Measurement Tolerance:±3%
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||
Details Images
Our Project
Packing & Delivery
(1) Standard Export Packing.
(2) Accept ODM And OEM Customized Packing.
