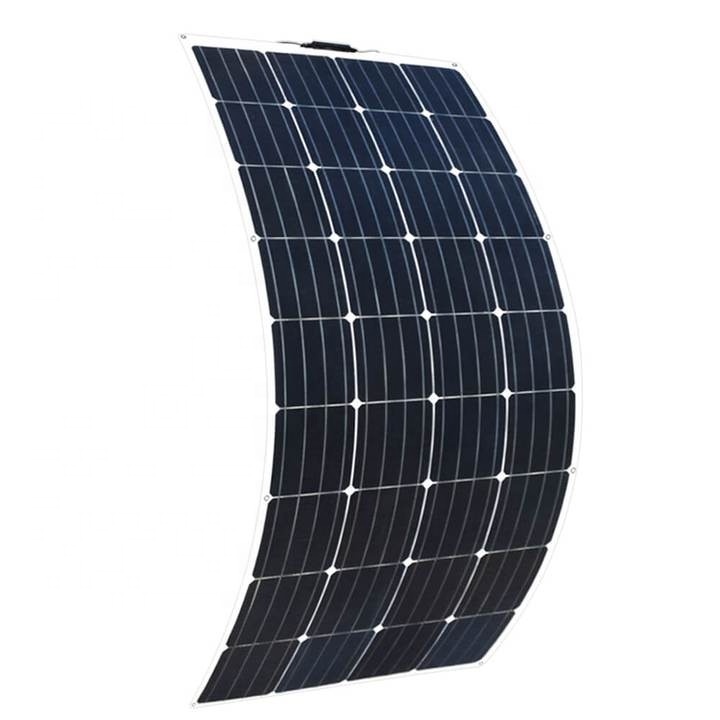

Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1650*990mm
-
Panel Efficiency:
-
19.1%
-
Max. Power:
-
200w
-
Solar cell:
-
Sunpower
-
Junction Box:
-
IP67 Rated
-
Frame:
-
non
-
Application:
-
Solar System(Semi flexible)
-
Warranty:
-
25 Years Output Power Guarantee
-
Certificate:
-
TUV/ISO/CE
-
OEM:
-
Customers' Lable
-
Type:
-
Flexible
-
Size:
-
1650*990*3mm
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Brand Name:
-
Shinefar
-
Model Number:
-
SFM6-72-200
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1650*990mm
-
Panel Efficiency:
-
19.1%
-
Max. Power:
-
200w
-
Solar cell:
-
Sunpower
-
Junction Box:
-
IP67 Rated
-
Frame:
-
non
-
Application:
-
Solar System(Semi flexible)
-
Warranty:
-
25 Years Output Power Guarantee
-
Certificate:
-
TUV/ISO/CE
-
OEM:
-
Customers' Lable
-
Type:
-
Flexible
-
Size:
-
1650*990*3mm
Product Description
| Model | SF-S32100 | SF-S36110 | SF-S48150 | SF-S54160 | SF-S60190 | SF-S72220 |
| Maximum power at STC(Pmax) | 100w | 110w | 150w | 160w | 190w | 220w |
| Optimum operating voltage(Vmp) | 17.6v | 18.5v | 26.4v | 29.7v | 33.0v | 39.6V |
| Optimum operation current(Imp) | 5.83A | 5.94A | 5.65A | 5.38A | 5.75A | 5.55A |
| Open-Circuit Voltage(Voc) | 21.1V | 22.8V | 31.65V | 29.7V | 39.4v | 47.52V |
| Short-Circuit current(Isc) | 6.11A | 6.11A | 5.76A | 33.41A | 5.76A | 5.76A |
| Cell Efficiency | 22.0% | 22.0% | 22.0% | 22.0% | 22.0% | 22.0% |
| Operating Module Temperature | -20℃ to +65℃ | |||||
| Maximum system Voltage | 1000VDC(IEC)/600VDC(UL) | |||||
| Maximum series fuse rating | 20A | |||||
| Power Tolerance | ±5% | |||||
| Solar cell | Sunpower | |||||
| No. of cells | 32(4*8) | 48(12*4) | 54(6*9) | 60(6*10) | 72(6*12) | |
| Dimensions(mm) | 1060*530*2.8 | 1200*530*2.8 | 1600*600*3 | 1200*810*3 | 1330*810*3 | 1580*810*3 |
| Weight | 1.8kgs | 2kgs | 3.2kgs | 3.8kgs | 4.9kgs | 5.9kgs |
| Front Glass | PET | |||||
| Frame | N/A | |||||
| Junction Box | IP67 rated | |||||
| Output cables | Optional 4.0mm2,symmetical lengths(-)1000mm and (+)1000mm | |||||
| Nominal operating cell temperature(NOCT) | 25±2℃ | |||||
| Temperature coefificient of Pmax | -0.44%/℃ | |||||
| Temperature coefificient of Voc | -0.33%/℃ | |||||
| Temperature coefificient of Isc | 0.055%/℃ | |||||
Product Details
More Products
Product Description
Packaging & Shipping
Special Packaging: Individual packing or 2 pcs per carton or other special packing is acceptable.
We also have stock in Rotterdam, Germany, we have our own forwarder help clients delivery panels to their address.
