Quick Details
-
Brand Name:
-
ZODE
-
Weight:
-
8000kg
-
Dimension(L*W*H):
-
L8500mm*W4500mm*H1800mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Usage:
-
F-T8 toilet paper wrapping machine
-
Packing speed:
-
60 bags/min
-
The range of packing sizes:
-
Max: L600mm*W480mm*H300mm
-
Configuration:
-
Toilet tissue roll: 2-48 rolls; Kitchen towel :2-16 rolls
-
Mini air pressure requirment:
-
0.5Mpa
-
Packing film:
-
PE,PP,PPE,OPP,CPP,PT Plastic film
-
Surface:
-
Carbon Steel
-
Machine name:
-
F-T8 toilet paper and kitchen towel packing machine
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Turkey, United Kingdom, United States, Brazil, Saudi Arabia, Mexico, Malaysia, Argentina, South Korea, Chile, Algeria, South Africa
-
Certification:
-
ISO9001
Quick Details
-
Voltage:
-
380V/50Hz
-
Power:
-
25KW
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
ZODE
-
Weight:
-
8000kg
-
Dimension(L*W*H):
-
L8500mm*W4500mm*H1800mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Usage:
-
F-T8 toilet paper wrapping machine
-
Packing speed:
-
60 bags/min
-
The range of packing sizes:
-
Max: L600mm*W480mm*H300mm
-
Configuration:
-
Toilet tissue roll: 2-48 rolls; Kitchen towel :2-16 rolls
-
Mini air pressure requirment:
-
0.5Mpa
-
Packing film:
-
PE,PP,PPE,OPP,CPP,PT Plastic film
-
Surface:
-
Carbon Steel
-
Machine name:
-
F-T8 toilet paper and kitchen towel packing machine
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Turkey, United Kingdom, United States, Brazil, Saudi Arabia, Mexico, Malaysia, Argentina, South Korea, Chile, Algeria, South Africa
-
Certification:
-
ISO9001
F-T8 toilet paper wrapping machine
F-T8 toilet paper and kitchen towel packing machine
F-T8 toilet paper wrapping machine

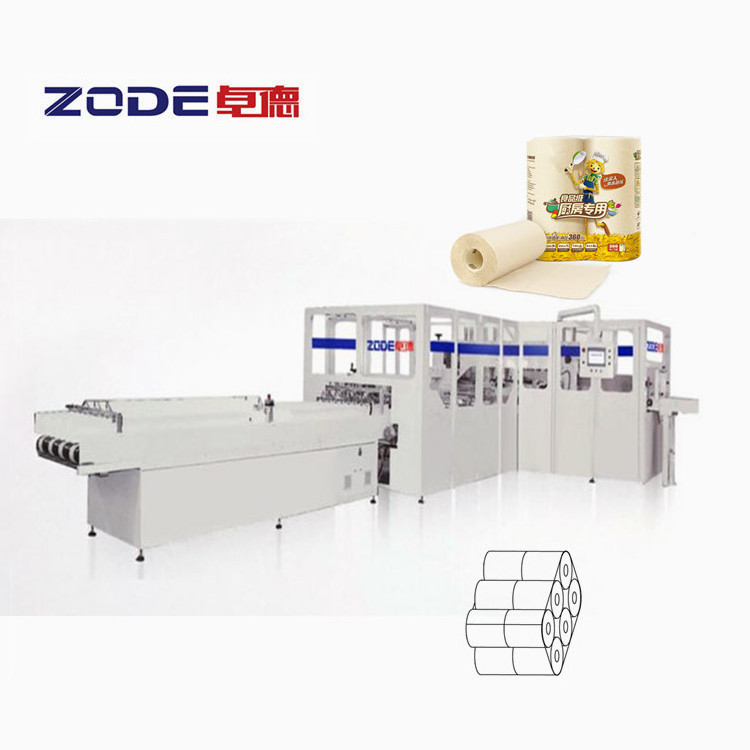

1. Machine Outlook
2. Main Features and Advantages
F-T8 rolls wrapper is our latest design and most advanced machine . It is a new generation wrapper with high production speed.
1) It adopts full servo technology, touch screen and SIEMENS SIMOTION control system. Parameters can be set conveniently and quickly . Machine Automatically completes whole process from the automatic feeding, arranging, w r apping and sealing. Running in a high speed and no pollution.
2) This machine is designed to have various specifications format changeover between toilet roll and kitchen towel with advanced double layer s arrangement system.
3) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
4) The machine is designed to have quick and flexible format changeover. The changing time less than 30 minutes.
5) This machine is used plastic film roll to pack, it save s the cost.
6) Five-channels motorized belt feeding conveyor with high technology controlled by SIEMENS SIMOTION control system.
3. Main technical parameters
|
Name |
Technical Parameters |
|
Output |
40-200 packs/min |
|
Size range bag |
Max : L72 0*W600*H27 0 (mm) |
|
Configuration |
T oilet tissue roll: 2-50 rolls Kitchen towel :2-30rolls |
|
Power supply |
380V/50HZ |
|
Mini air pressure requirement |
0.5Mpa |
|
Wrapping Material |
PE, PP, PPE, OPP, CPP, PT Plastic film |
|
PE thickness,LDPE |
25-50 microns |
|
Surface |
carbon steel |
|
Power consumption |
18 KW |
|
Machine size |
L 85 00mm*W 45 00mm*H 18 00mm |
|
Machine weight |
80 00kg |
|
Color |
white or custom |
4. Configuration
5. Finished products
