Quick Details
-
Brand Name:
-
Linshang
-
Model Number:
-
LS125
-
Product name:
-
LS125 ultraviolet radiation meter
-
Host Weight:
-
About 194g
-
Dimension:
-
148mm*76mm*26mm (L*W*H)
-
Display:
-
240*160 dot matrix LCD
-
Power supply:
-
4 AAA alkaline batteries
-
Probe connection:
-
Push pull (Snap-in style),Aviation socket
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Linshang
-
Model Number:
-
LS125
-
Product name:
-
LS125 ultraviolet radiation meter
-
Host Weight:
-
About 194g
-
Dimension:
-
148mm*76mm*26mm (L*W*H)
-
Display:
-
240*160 dot matrix LCD
-
Power supply:
-
4 AAA alkaline batteries
-
Probe connection:
-
Push pull (Snap-in style),Aviation socket
Related Products
|
Model
|
LS125
|
LS126A
|
LS126C
|
LS127C
|
LS129
|
|
Spectral response
|
230-280nm
230-315nm
280-315nm
315-400nm
340-420nm
|
340-420nm
|
230-280nm
|
230-280nm
|
230-280nm
315-400nm 340-420nm |
|
Application
|
ALL
|
UV LED area light source; Small probe or narrow space
|
Medical 254nm UV sterilized mercury lamp
|
Medical 254nm UV sterilized mercury lamp
|
High pressure mercury lamps; UV LED are light source;254nm UVC germicidal mercury lamp
|
|
Probe type
|
UVC-X0; UVCWP-X1; UVCLED-X0; UVB-X0; UVA-X0; UVA-X1; UVALED-X0; UVALED-X1; UVALED-X3
|
UVALED
|
UVC
|
UVC
|
UVA
UVALED
UVC
|
Product Description
LS125 Multi Probe Digital UV UVA UVB Light Radiometer UVC Tester Meter Ultraviolet Radiation Radiometer UV Light Meter
LS125 UV light meter can be freely combined with 9 different types of probes. The
radiometer
can be used for UVA, UVB, UVC band UV intensity and energy testing. The probes are digital, not easily disturbed during the test. After the host connects the probe, the
uva uvb light meter
can intelligently recognize the model of the probe and adaptively display the interface. The
uvc meter
has a statistical function, can simultaneously measure maximum value, minimum value and average value. The
uva uvb light meter
is highly accurate and can pass the test of authoritative metrology institute.
Features：
1. The
uvc tester meter
host connects to probes via aviation plugs and can pair with 9 UV probes for versatile testing.
2. Matching probes for UVA (315nm-420nm), UVB(280nm-315nm), UVC(200nm-280nm) UV intensity and energy detection.
3. Using advanced digital probe technology, the probe is not easy to be disturbed.
4. Intelligent recognition of the probe type and adaptive display interface.
5. Power real-time, maximum, minimum, average, energy value, and measurement duration can be displayed at the same time.
6. It can save 9 sets of data, which is retained even when the power is off.
7. The uvb meter is highly accurate and can pass the test of authoritative metrology institute.
2. Matching probes for UVA (315nm-420nm), UVB(280nm-315nm), UVC(200nm-280nm) UV intensity and energy detection.
3. Using advanced digital probe technology, the probe is not easy to be disturbed.
4. Intelligent recognition of the probe type and adaptive display interface.
5. Power real-time, maximum, minimum, average, energy value, and measurement duration can be displayed at the same time.
6. It can save 9 sets of data, which is retained even when the power is off.
7. The uvb meter is highly accurate and can pass the test of authoritative metrology institute.
Probe Selection:
Select according to the spectral response range and application of the light source
Probe type: UVC-X0
Spectral response range: 230-280nm
Power range: 0 - 200000 μW/cm²
Test aperture: ￠10mm
Application: 254nm UV sterilization mercury lamp
Spectral response range: 230-280nm
Power range: 0 - 200000 μW/cm²
Test aperture: ￠10mm
Application: 254nm UV sterilization mercury lamp
Probe type: UVCWP-X1
Spectral response range: 230-280nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: 254nm UV sterilization mercury lamp, waterproof
Spectral response range: 230-280nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: 254nm UV sterilization mercury lamp, waterproof
Probe type: UVCLED-X0
Spectral response range: 240-320nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: 260nm-285nm UV LED germicidal lamp
Spectral response range: 240-320nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: 260nm-285nm UV LED germicidal lamp
Probe type: UVB-X0
Spectral response range: 280-315nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: General UVB intensity and energy measurement
Spectral response range: 280-315nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: General UVB intensity and energy measurement
Probe type: UVA-X0
Spectral response range: 315-400nm
Power range: 0 - 2000 mW/cm²
Test aperture:￠10mm
Application: High pressure mercury lamp in UV curing industry
Spectral response range: 315-400nm
Power range: 0 - 2000 mW/cm²
Test aperture:￠10mm
Application: High pressure mercury lamp in UV curing industry
Probe type: UVA-X1
Spectral response range: 315-400nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: General UVA intensity and energy measurement
Spectral response range: 315-400nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: General UVA intensity and energy measurement
Probe type: UVALED-X0
Spectral response range: 340-420nm
Power range: 0 - 20000 mW/cm²
Test aperture:￠10mm
Application: Area light source of UV LED in UV curing industry
Spectral response range: 340-420nm
Power range: 0 - 20000 mW/cm²
Test aperture:￠10mm
Application: Area light source of UV LED in UV curing industry
Probe type: UVALED-X1
Spectral response range: 340-420nm
Power range: 0 - 20000 mW/cm²
Test aperture:￠1mm
Application: Point light source of UV LED in UV curing industry
Spectral response range: 340-420nm
Power range: 0 - 20000 mW/cm²
Test aperture:￠1mm
Application: Point light source of UV LED in UV curing industry
Probe type: UVALED-X3
Spectral response range: 340-420nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: General UVA+UVV LED, low power measuring range
Spectral response range: 340-420nm
Power range: 0 - 200000 μW/cm²
Test aperture:￠10mm
Application: General UVA+UVV LED, low power measuring range
Specifications
|
Probetype
|
Spectral response range
|
Power range
|
Test aperture
|
Application
|
|
UVC-X0
|
230-280nm
|
0 - 200000 μW/cm²
|
Φ10mm
|
254nm UV sterilization mercury lamp
|
|
UVCWP-X1
|
230-280nm
|
0 - 200000 μW/cm²
|
Φ10mm
|
254nm UV sterilization mercury lamp,waterproof
|
|
UVCLED-X0
|
240-320nm
|
0 - 200000 μW/cm²
|
Φ10mm
|
260nm-285nm UV LED germicidal lamp
|
|
UVB-X0
|
280-315nm
|
0 - 200000 μW/cm²
|
Φ10mm
|
General UVB intensity and energy measurement
|
|
UVA-X0
|
315-400nm
|
0 - 2000 mW/cm²
|
Φ10mm
|
High pressure mercury lamp in UV curing industry
|
|
UVA-X1
|
315-400nm
|
0 - 200000 μW/cm²
|
Φ10mm
|
General UVA intensity and energy measurement
|
|
UVALED-X0
|
340-420nm
|
0 - 20000 mW/cm²
|
Φ10mm
|
Area light source of UV LED in UV curing industry
|
|
UVALED-X1
|
340-420nm
|
0 - 20000 mW/cm²
|
Φ1mm
|
Point light source of UV LED in UV curing industry
|
|
UVALED-X3
|
340-420nm
|
0 - 200000 μW/cm²
|
Φ10mm
|
General UVA+UVV LED, low power measuring range
|
Structure & Packing
|
No.
|
Description
|
Quantity
|
Unit
|
|
1
|
LS125 UV light meter
|
1
|
Set
|
|
2
|
User manual
|
1
|
Pcs
|
|
3
|
Certificate/Warranty card
|
1
|
Pcs
|
|
4
|
Plastic box
|
1
|
Pcs
|
|
5
|
Packing box dimension
|
1
|
Pcs
|
Free to match 9 types of probes
The
ultraviolet radiation meter
host connects to probes via aviation plugs and can pair with 9 UV probes for versatile testing.
Suggestion of Probes for Classic Industry Application

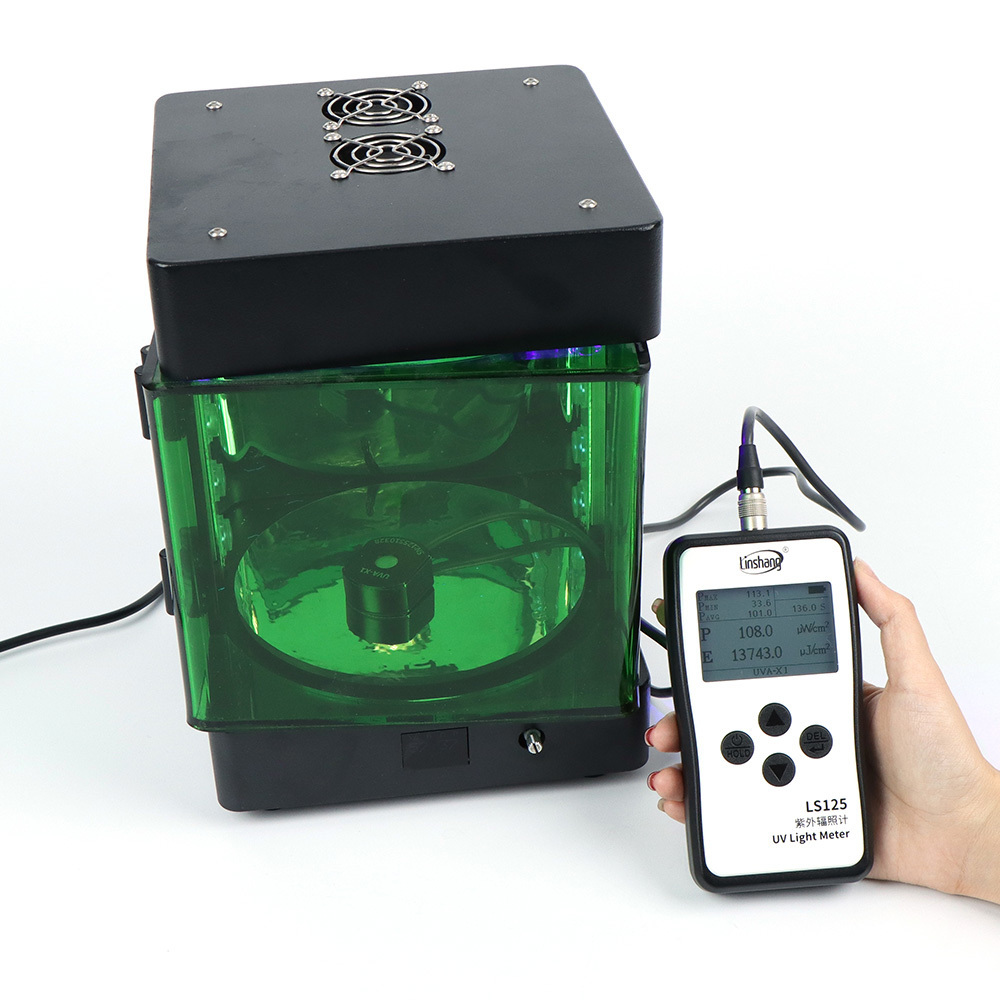

Detect UV aging box: UVA-X1, UVB-X0
Detect ambient light and sunlight: UVA-X1, UVB-X0
Detect welding arc: UVA-X1, UVB-X0, UVC-X0
Detect UV light of non-destructive testing: UVA-X0
Detect UV nail lamp: UVALED-X3
Detect plant growth lamp or reptile lamp: UVB-X0
Detect ambient light and sunlight: UVA-X1, UVB-X0
Detect welding arc: UVA-X1, UVB-X0, UVC-X0
Detect UV light of non-destructive testing: UVA-X0
Detect UV nail lamp: UVALED-X3
Detect plant growth lamp or reptile lamp: UVB-X0
Simultaneous measurement of power and energy values
The
uv light meter
can simultaneously measure UV power and energy values.
Digital probe technology
Using advanced digital probe technology, the probe is not easy to be disturbed.
Waterproof probe optional
The
radiometer
can be matched with UVCWP-X1 waterproof probe, which is waterproof up to 1 meter, suitable for underwater germicidal lamp detection.
Intelligent recognition of the probe type
The
uva uvb light meter
can intelligent recognition of the probe type and adaptive display interface.
Data statistics function
Power real-time, maximum, minimum, average, energy value, and measurement duration can be displayed at the same time.
Data storage function
The
uvc tester meter
can save 9 sets of data, which is retained even when the power is off.
Pass authoritative metrology institute testing
The
uva uvb meter
is highly accurate and can pass the test of authoritative metrology institute.
Transaction & Client
Delivery
|
Packing
|
Air Carton / Express Packaging / Shrink Package
|
|
Delivery Terms
|
EXW, DAP, Express Delivery
|
|
Delivery Time
|
5-10 days in stock
|
|
Port
|
Shenzhen
|
FAQ
1. Can the test data of LS125 UV light meter be exported to a computer or can it connected to a mobile APP?
2. Can I get a 1-meter test hook if I buy a LS125 UV light meter?
No, the test data of LS125 UV light meter can only be read on the display screen of the host. If you need to export the data, you can learn about our UV energy meter (measuring UVA band) and UV light meter LS126C (measuring 254nm UVC germicidal lamp).
2. Can I get a 1-meter test hook if I buy a LS125 UV light meter?
The 1-meter hook is not a standard accessory for LS125 UV light meter, but you can purchase this accessory seperately.
3. Do you offer OEM and ODM service?
Yes. We can supply OEM and make customized design for any specific application.
4. Who are we?
5. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
6. What can you buy from us?
Colorimeter,Gloss meter,Coating thickness meter,window tint meter,UV meter, Leeb hardness tester, Ultrasonic thickness gauge.
7. Why should you buy from us not from other suppliers?
Shenzhen Linshang Technology Co., Ltd. was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments.
8. What services can we provide?
Accepted Delivery Terms: EXW,DAP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, Korean, Italian.
9. Does the instrument have a warranty?
Guarantee period is 12 months, after the warranty, we also provide life-long paid or service.
10 Do you offer samples to buy?
Yes, you are welcome to order samples to experience our excellent quality and service.
11. Can you offer quality certification?
Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection
Organizations with extra charge, please contact us for confirmation.
12. Do you have after-sales service?
Yes, our instrument have professional After-sales Dept. lf you have any technical problem or question with our goods welcome to contact us.
Yes. We can supply OEM and make customized design for any specific application.
4. Who are we?
We are based in Guangdong, China, start from 2008,sell to Domestic Market(60.00%), Eastern Europe(6.00%), Eastern Asia(6.00%), South Asia(5.00%), Mid East(4.00%), Southern Europe(3.00%), North America(3.00%), Western Europe(3.00%), South America(2.00%), Northern Europe(2.00%), Central America(2.00%), Southeast Asia(2.00%), Africa(1.00%), Oceania(1.00%). There are total about 51-100 people in our office.
5. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
6. What can you buy from us?
Colorimeter,Gloss meter,Coating thickness meter,window tint meter,UV meter, Leeb hardness tester, Ultrasonic thickness gauge.
7. Why should you buy from us not from other suppliers?
Shenzhen Linshang Technology Co., Ltd. was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments.
8. What services can we provide?
Accepted Delivery Terms: EXW,DAP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, Korean, Italian.
9. Does the instrument have a warranty?
Guarantee period is 12 months, after the warranty, we also provide life-long paid or service.
10 Do you offer samples to buy?
Yes, you are welcome to order samples to experience our excellent quality and service.
11. Can you offer quality certification?
Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection
Organizations with extra charge, please contact us for confirmation.
12. Do you have after-sales service?
Yes, our instrument have professional After-sales Dept. lf you have any technical problem or question with our goods welcome to contact us.
Hot Searches
