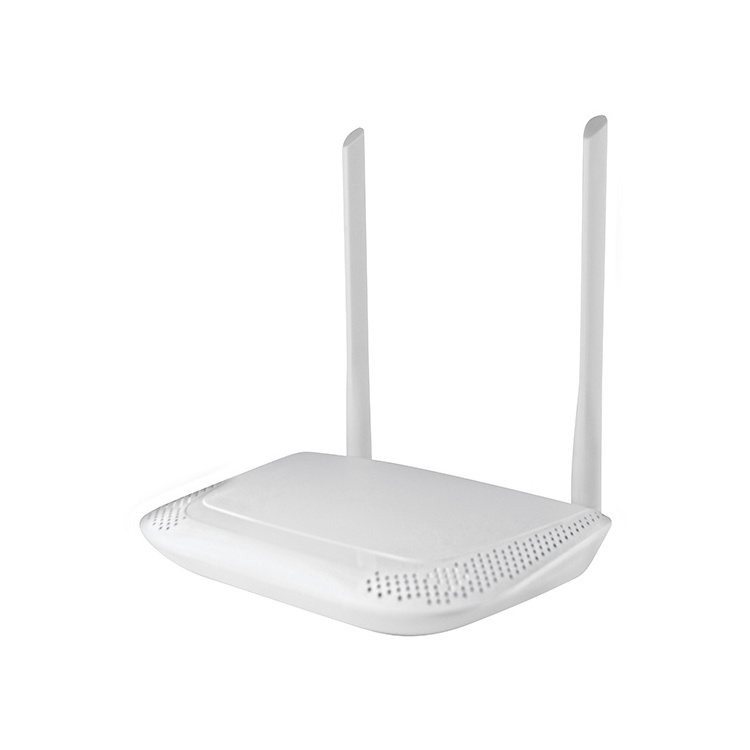

OFSX622-CVW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability,easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OPTFOCUS
-
Product name:
-
Dual mode XPON ONU
-
Application:
-
FTTH FTTB FTTX Network
-
Wavelength:
-
Tx 1310nm Rx 1490nm
-
Connector:
-
SC UPC
-
Dimensions:
-
167*119*32mm
-
Power supply:
-
input DC+12V 1A
-
Power:
-
≤8W
-
Compatible:
-
Compatitive With Most Brand
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
ONU
-
Model Number:
-
OFSX622-CVW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OPTFOCUS
-
Product name:
-
Dual mode XPON ONU
-
Application:
-
FTTH FTTB FTTX Network
-
Wavelength:
-
Tx 1310nm Rx 1490nm
-
Connector:
-
SC UPC
-
Dimensions:
-
167*119*32mm
-
Power supply:
-
input DC+12V 1A
-
Power:
-
≤8W
-
Compatible:
-
Compatitive With Most Brand
-
Warranty:
-
1 Year
Products Description
Realtek Chipset 9602C EPON GPON XPON ONU 1GE + CATV Fiber Optic onu gpon modemfor Zte Huawei Olt
Product Paramenters
Basic Characteristics
|
Tech parameters
|
Description
|
|
Up-link interface
|
1 XPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type：SC/UPC Optical power：0~4 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism |
|
Wavelength(nm)
|
TX 1310nm，RX 1490nm
|
|
Fiber connector
|
SC/UPC connector
|
|
Down-link data interface
|
1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
|
|
Indicator LED
|
8
|
|
DC supply interface
|
input＋12V 1A
|
|
Power
|
≤8W
|
|
Operating temperature
|
-5～+55℃
|
|
Humidity
|
10～85%(non-condensation)
|
|
Storage temperature
|
-30～+70℃
|
|
Dimension(MM)
|
167*119*32mm(mainframe)
|
|
Weight
|
0.6Kg(mainframe)
|
VOIP Technical feature
|
Tech features
|
description
|
|
Voltage and Current Monitoring
|
The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC
|
|
Power Monitoring and Power Fault Detection
|
The XPON ONU monitoring functions are used to continuously protect against excessive power
conditions |
|
Thermal Overload Shutdown
|
If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down
|
CATV Technical features
|
Tech features
|
description
|
|
Optical wavelength
|
1540~1560nm
|
|
Optical input range
|
0~-15 DBm
|
|
Optical return loss
|
≥45 DB
|
|
Bandwidth
|
45~1000 MHz
|
|
Flatness
|
士 1 DB
|
|
RF output level
|
≥72 dBuv
|
|
AGC control range
|
0~-14 DBm
|
|
RF Output return loss
|
≥14 DB
|
|
Output impedance
|
75Ω
|
|
CNR
|
≥50 DB
|
|
CTB
|
≥60 DB
|
|
CSO
|
≥60 DB
|
Definition of indicator LED
|
symbol
|
color
|
meaning
|
|
PWR
|
green
|
ON:successfully connect with power OFF:fail to connect with power
|
|
PON
|
green
|
ON:ONU port Link link correctly Flicker: PON registering
OFF:ONU ports link link faulty |
|
LAN
|
green
|
ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
|
|
POTS
|
green
|
ON: Register success
OFF:Register fail |
|
WIFI
|
green
|
ON: WIFI is running OFF:WIFI startup fail
|
|
LOS
|
Red
|
Flicker: fail to connect with PON port
OFF: detected fiber to input |
|
CATV
|
green
|
Input optical power：0~ -15DBm
|
|
|
Red
|
Input optical power：≥0DBm，or -15DBm≥
|
|
WAN
|
green
|
ON: link to Internet success OFF: link to Internet fail
|
Details Images
Features:
* Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
* Completely compatible with GPONinternational standard IEEE802.3ah/802.3-2005
* Support China Telecom GPON1 standard and expand OAM
* Support triple churning encryption request
* Support DBA reporting mechanism request
* Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
* Support the remote upgrade and download
* Support status detection and fault report
* Support to save configured parameters if power down
* Support to configure the work mode at the user port
* Support MDI-MDIX automatic-detection at the user port.
* Completely compatible with GPONinternational standard IEEE802.3ah/802.3-2005
* Support China Telecom GPON1 standard and expand OAM
* Support triple churning encryption request
* Support DBA reporting mechanism request
* Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
* Support the remote upgrade and download
* Support status detection and fault report
* Support to save configured parameters if power down
* Support to configure the work mode at the user port
* Support MDI-MDIX automatic-detection at the user port.
* Support data encryption and decryption
* Support access authentication based on serial number
* Support access authentication based on MAC address
* Support 802.1Q VLAN
* Support rich QinQ VLAN functions and IGMP Snooping
* Support traffic rule to modify the related priority.
* Support IEEE802.11n 2T2R WiFi function
* Support to restore the factory settings
* Support the remote reset and reboot
* Support dying gasp outage alarm
* Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
* Support access authentication based on serial number
* Support access authentication based on MAC address
* Support 802.1Q VLAN
* Support rich QinQ VLAN functions and IGMP Snooping
* Support traffic rule to modify the related priority.
* Support IEEE802.11n 2T2R WiFi function
* Support to restore the factory settings
* Support the remote reset and reboot
* Support dying gasp outage alarm
* Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
