Quick Details
-
Rear Wheel Type:
-
11.2-24
-
PTO:
-
540/760 or 540/1000
-
Options:
-
Cabin,Air brake,Paddy tires,Creeper-gear,Hydraulic valve,
Quick Details
-
Place of Origin:
-
China
-
LxWxH:
-
3250x1600x1980mm
-
Front Wheel Type:
-
6.5-16
-
Rear Wheel Type:
-
11.2-24
-
PTO:
-
540/760 or 540/1000
-
Options:
-
Cabin,Air brake,Paddy tires,Creeper-gear,Hydraulic valve,
weifang china tractor 554 agriculture machine accessories
Specifications
55hp farm tractor of agriculture machinery
1.it is with 2WD or 4WD;
2,Xinchai engine 55hp
3,PTO 540/760;
4,Transmission
Type: 8F+2R
110hp farm tractor of agriculture machinery
| CP554 Tractor Specifications | |||
| Model | CP554 | ||
| Type | 4*4 | ||
| (mm)Dimensions of tractor | Length | 3250 | |
| Width | 1600 | ||
| Height | 1980 | ||
| Tread | Front Wheel | 1300 | |
| Rear Wheel | 1300 | ||
| WheelBase | 1760 | ||
| Min.GroundClearance | 360 | ||
| (kg)Dry Mass | 1550 | ||
| Engine | Model | XC4105 | |
| Type | Vertical Water Cooledand 4-stroke | ||
| (kw)Rated Power | 40.4 | ||
| (r/min)Rated Rev. | 2400 | ||
| Fuel | Diesel Oil | ||
| Tire | FrontWheel | 6.50-16 | |
| Rear Wheel | 9.50-24/11.2-24 | ||
| Clutch | Dry-friction,single stage or Dry-friction,Two Stage | ||
| Steering | Mechanical Type or Hydraulic Type | ||
| Transmission Box | (4+1)x 2 | ||
| Suspension Type | Rear three-point suspension Class I | ||
| PTO shaft | (r/min)Type and Rev | 540/760 | |
| SplineSize | I38 Rectangle Spline With 8 teeth (8×28.91×38×8.69) | ||
| Structure and specification are subject to change without notice. | |||

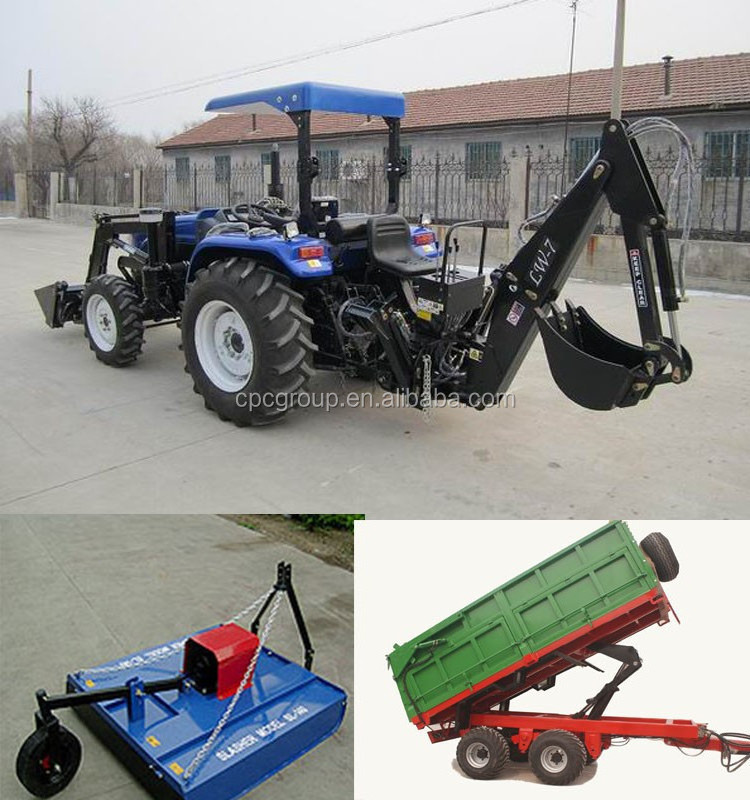

Pictures:
features
Packaging: 8 units inside1x20fcl;16 units inside 1x40'fcl
Delivery time:15days.
1,12 months warranty,
2, 100% manufacturer, advanced equipments, strong production ability, fast delivery;
3, Experienced service, mature management;
4)High quality and competitive price,
5) We can communicate with the customers anytime and solve the problems of customers as soon as possible.
