Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Upon your request
-
PTO Speed:
-
540r/min
-
Power Required:
-
90-120HP
-
Working width:
-
2600 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic
-
After Warranty Service:
-
Video technical support,Online support
-
Certification:
-
9001;CE
Quick Details
-
Weight (KG):
-
853
-
Type:
-
Flail mower
-
Use:
-
mowing weeds
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Upon your request
-
PTO Speed:
-
540r/min
-
Power Required:
-
90-120HP
-
Working width:
-
2600 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic
-
After Warranty Service:
-
Video technical support,Online support
-
Certification:
-
9001;CE

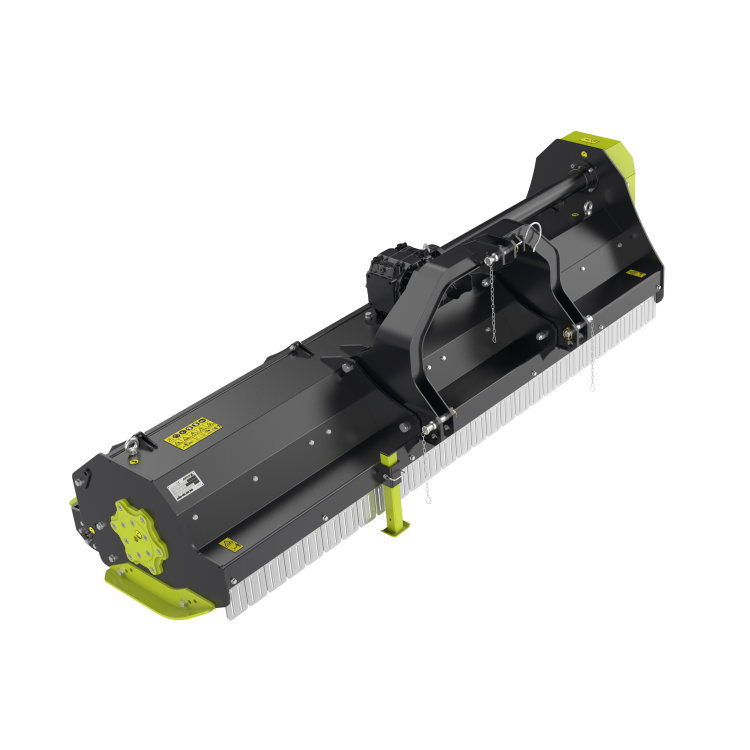

Awon Standard Flail Mower
FM series are rear mounted,PTO driven flail mowers for tractors. 14 models in total,working width varies from 1,000 to 3,000mm,power demand 25-120HP.FM series are designed for general maintenance of lawn,park,orchard,meadow and weed cut for undeveloped areas. The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
Standard Equipment
Shaft with double flail spiral• Overrunning clutch integrated with gearbox• Mechanical safety breakaway device • Mowing height adjustment with ground following bar • Wide-angle PTO
Advantage
* Mounting on 3-point hitch at the rear of the tractor linkage Cat.1,2
* Lightweight, compact design and at the same time high efficiency ensure economical use.
* Gearbox with a freewheel and input to 540 rpm for safety and easy use of the machine.
* The belt drive ensures quiet operation of the machine.
* The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
* The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Balanced weight and precise helical arrangement of flail knives provide effective operation in difficult conditions
* Easy, on-site, flail knife replacement
* Low noise operation
* Perfect ground following and even cutting height
* Metal plate guards at the front and at the back provide effective protection against stones
* Bearing protection and lubrication system
* PTO shaft as standard
* Housing can be hydraulic lifted to leave the shredded materials back to the field
* Lightweight, compact design and at the same time high efficiency ensure economical use.
* Gearbox with a freewheel and input to 540 rpm for safety and easy use of the machine.
* The belt drive ensures quiet operation of the machine.
* The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
* The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Balanced weight and precise helical arrangement of flail knives provide effective operation in difficult conditions
* Easy, on-site, flail knife replacement
* Low noise operation
* Perfect ground following and even cutting height
* Metal plate guards at the front and at the back provide effective protection against stones
* Bearing protection and lubrication system
* PTO shaft as standard
* Housing can be hydraulic lifted to leave the shredded materials back to the field
Automatically Belt-tension
Heavy-duty forged blade
Balanced weight and precise helical arrangement
|
Model
|
FM260
|
FM280
|
FM`300
|
|
Dimension(mm)
|
2850*1180*1040
|
3050*1180*1040
|
3250*1180*1040
|
|
Weight(Kg)
|
853
|
868
|
1022
|
|
Cutting Width(mm)
|
2600
|
2800
|
3000
|
|
PTO Input Speed
|
540
|
540
|
540
|
|
Number of blades
|
20
|
22
|
24
|
|
Power required(HP)
|
90-120
|
90-120
|
90-120
|
AWON Group was founded in 2006 with its headquarter in the Netherlands, is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. for some years now AWON Machinery has designed and manufactured a wide range of machinery including:mower, mulcher,wood shredder, cotton baler etc. Mulching is an important part of modern agriculture and helps providing a better growing
environment
. Uniform application of the mulch prevents soil erosion and pesticides, helps the decomposition of crop resides and fast absorption of the nutrient value, and ultimately increases soil fertility.
AWON Group attached special importance to China market, AWON factory founded in Nantong in 2012 to support the domestic market of China and put into production in the same year. And a professional design team dedicated to design products based on the characteristic of China’ s agricultural development was built in 2015,more and more advanced products are introduced and produced into the localization process and devoted ourselves for the efforts of speeding up the agricultural mechanization of China. The sales-network of our company all over China would offer you our best service.
AWON Group attached special importance to China market, AWON factory founded in Nantong in 2012 to support the domestic market of China and put into production in the same year. And a professional design team dedicated to design products based on the characteristic of China’ s agricultural development was built in 2015,more and more advanced products are introduced and produced into the localization process and devoted ourselves for the efforts of speeding up the agricultural mechanization of China. The sales-network of our company all over China would offer you our best service.
