Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-BS005
-
Output:
-
12-24V
-
Product name:
-
Battery Disconnect Switch
-
Operation:
-
ON and OFF
-
Continuous Current:
-
275Amps DC
-
Intermittent current:
-
455Amps DC
-
Voltage:
-
6V-48V DC
-
Material:
-
ABS plastic housing, durable made.
Quick Details
-
Number of Pole:
-
2
-
Rated Current:
-
275A
-
Rated Voltage:
-
48
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUJIE
-
Model Number:
-
YJ-BS005
-
Output:
-
12-24V
-
Product name:
-
Battery Disconnect Switch
-
Operation:
-
ON and OFF
-
Continuous Current:
-
275Amps DC
-
Intermittent current:
-
455Amps DC
-
Voltage:
-
6V-48V DC
-
Material:
-
ABS plastic housing, durable made.

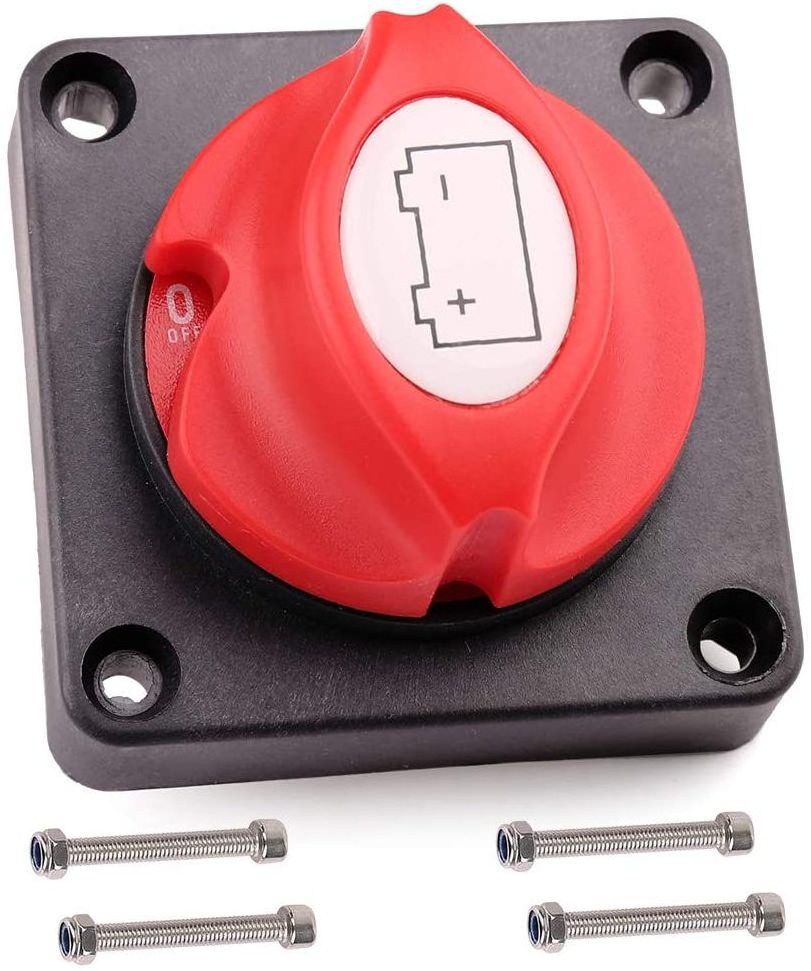

Waterproof Heavy Duty Battery Isolator Switch Battery Disconnect Switch On Off
12V 24V 48V Master Cut Shut Off Switch
Specification
|
Operation
|
ON and OFF
|
|
Continuous Current
|
275Amps DC
|
|
Intermittent current
|
455Amps DC
|
|
Voltage
|
6V-48V DC
|
|
Stud Size
|
2x3/8" (10mm)
|
|
Starting current
|
1250Amps DC
|
|
Product installation range
|
cars,off-road vehicles,buses,RVs,yachts,boats,etc.
|
Note:
If voltage is 24V, the Amp will reduce 50%. It will be 137.5A DC Continuous (1hr).
If voltage is 48V, the Amp will reduce 25%. It will be 68.75A DC Continuous (1hr).
1, ABS plastic housing, durable made for safety use.
2, Rear cover insulates terminals against any short of circuits.
3, On/Off 2 positions.
4, Copper terminal studs with nuts and washers.
5, 4 mounting screw holes.
6, 275 A continuous at DC 12V, 455 A Intermittent at DC 12V, 1250 A
momentary at DC 12V.
7, Used for DC 12 - 48V systems to isolate and secure the electrical system.
8, Can stand alone or be locked together with other switch.
9, Eliminate any power draw from the battery when vehicle or boat is not in
use.
10, Disconnects the battery safely.
11, Universal used for Car, Vehicle, RV and Boat
If voltage is 24V, the Amp will reduce 50%. It will be 137.5A DC Continuous (1hr).
If voltage is 48V, the Amp will reduce 25%. It will be 68.75A DC Continuous (1hr).
1, ABS plastic housing, durable made for safety use.
2, Rear cover insulates terminals against any short of circuits.
3, On/Off 2 positions.
4, Copper terminal studs with nuts and washers.
5, 4 mounting screw holes.
6, 275 A continuous at DC 12V, 455 A Intermittent at DC 12V, 1250 A
momentary at DC 12V.
7, Used for DC 12 - 48V systems to isolate and secure the electrical system.
8, Can stand alone or be locked together with other switch.
9, Eliminate any power draw from the battery when vehicle or boat is not in
use.
10, Disconnects the battery safely.
11, Universal used for Car, Vehicle, RV and Boat
Package Included:
1* Battery Switch
4* Mounting Bolts
Note: No Backing Pad & Side Pads; For Panel Mount Applications
1* Battery Switch
4* Mounting Bolts
Note: No Backing Pad & Side Pads; For Panel Mount Applications
All YUJIE product With 12 months warranty.
Free parts will be sent during guarantee period!
Free parts will be sent during guarantee period!
Details Images
FREE
Sample are available
Contact us for more details now.
If you need any parts, please kindly send us your drawings or sample for quotation.
Any questions about more items, please feel free to contact us.
Contact information:
Bonnie Huang
TradeManager: cn1001167855 Skype: live:yjbonnie_2 E-mail: sales1@dgyujie.com.cn
Tel: 0769-85472786 WhatsApp : +86 13826950303 Mobile: +86 13826950303
TradeManager: cn1001167855 Skype: live:yjbonnie_2 E-mail: sales1@dgyujie.com.cn
Tel: 0769-85472786 WhatsApp : +86 13826950303 Mobile: +86 13826950303
Recommand product
Why Choose Us
We are a manufacturing and trading combo for Auto Parts in Dongguan China, with more than
20 years
of the full experience and a professional sales team, and
ISO 9001/ BSCI / IATF 16949 Certificates
, 5 Floor. around 3000sqm, over 200 staff with all necessary departments.
1. What Kind of Products Can YUJIE Offer?
1. What Kind of Products Can YUJIE Offer?
All kinds of automotive accessories, such as USB charger/Switch/Fuse block/battery boxes, etc.
2. How about the Quality from YUJIE ?
ISO 9001/ BSCI / IATF 16949 Certificates
with 12 months warranty.
3. How about the After sales service ?
Automotive accessories from YUJIE with
12 months warranty
. Free parts will be sent during guarantee period!
4. How about the Payment methods ?
TT /Paypal/Alibaba
Trade Assurance
Payment methods are available in YUJIE!
5. How about Custom service? OEM/ODM?
YUJIE can customize function with your design as your requirement/Color package with your company Logo.
