Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V 50Hz 1P
-
Dimension(L*W*H):
-
1500*3000*200mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1500*3000*200mm
-
Spindle:
-
9kw ATC air cooling spindle, ISO30, ER32
-
Control system:
-
Taiwan SYNTEC /LNC controller
-
Motor and driver:
-
1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets.
-
Working Table:
-
Aluminum T-slot & vacuum work table
-
Structure:
-
Heavy duty thicker structure
-
Lubrication system:
-
1.5L automatic lubrication system
-
Limit switch:
-
Japan Omron limit switch
Quick Details
-
Working Table Size(mm):
-
1500x3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V 50Hz 1P
-
Dimension(L*W*H):
-
1500*3000*200mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1000
-
Product name:
-
CNC Wood Working Machine
-
Application:
-
Kitchen Cabinet Doors Furnitures Making
-
Working area:
-
1500*3000*200mm
-
Spindle:
-
9kw ATC air cooling spindle, ISO30, ER32
-
Control system:
-
Taiwan SYNTEC /LNC controller
-
Motor and driver:
-
1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets.
-
Working Table:
-
Aluminum T-slot & vacuum work table
-
Structure:
-
Heavy duty thicker structure
-
Lubrication system:
-
1.5L automatic lubrication system
-
Limit switch:
-
Japan Omron limit switch
Products Description

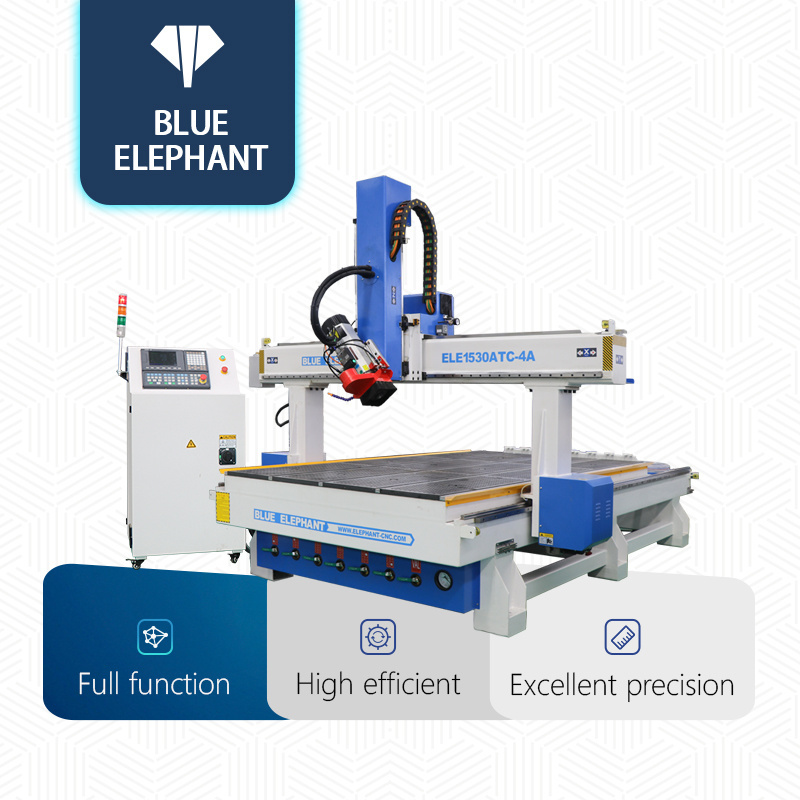

Blue Elephant CNC Wood 1530 ATC CMC 5x10ft 4 Axis Carving Sculpture Making Machine For Wood
ELECNC-1530 4 Axis ATC CNC Router Machine for sale at affordable price, it is the best heavy duty CNC wood design machine for wood work shop to deal with wood carving, engraving, panel cutting operations of furniture cabinet door making. It has an ATC system for quick tool changing and management, and the rotating spindle is good at engraving and carving 3D wood sculpture. It adopts global famous CNC router kits and is mainly used for wood carving, cabinet making, doors making and other complex woodworking.
1. With a linear type tool changer, this cnc wood design machine can change more than 8 tools automatically in the cnc wood carving engraving process.
2. The cnc spindle can swing up to 180 degrees which enables the machine to process 3D molds, statues and other objects.
3. With a heavy-duty frame and gantry, the machine has a stronger structure, ensuring stable and safe operation. 4. All the specifications can be customized according to your own actual processing needs.
Product Paramenters
|
Model
|
ELECNC1530ATC-4
|
|
X,Y axis travel
|
1500x3000mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc.
|
|
Z axis travel
|
200mm, option: 300mm, 400mm, 500mm, 600mm,etc.
|
|
Spindle type
|
9kw ATC air cooling spindle, ISO30, ER32
|
|
Drilling bank
|
Optional
|
|
Tool magazine
|
Linear type auto tool changer Option: Carousel type auto tool changer
|
|
Tool holder with collet
|
ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
|
|
Control system
|
Taiwan SYNTEC /LNC controller
|
|
Driving system
|
1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
|
|
Reducer
|
Japan SHIMPO reducer
|
|
Machine structure
|
Heavy duty body with quenching treatment
|
|
Work table
|
Aluminum T-slot & vacuum work table
|
|
Positioning cylinder
|
Optional: 5 pieces (X2,Y3)
|
|
Linear guide
|
Taiwan Linear guide with dust proof
|
|
Transmission
|
X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
|
|
Lubrication system
|
1.5L automatic lubrication system
|
|
Tool calibration
|
Automatic tool sensor calibration
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
Compatible software
|
Artcam, Alphcam,Type 3,Ucancam, Aspire, etc.
|
|
Command language
|
G Code & M Code
|
|
Traveling speed
|
80m/min
|
|
Working speed
|
0-25m/min
|
|
Re-positioning accuracy
|
±0.03mm
|
|
System resolution
|
±0.0025mm
|
|
Working accuracy
|
±0.03mm
|
|
Working air pressure
|
0.6MPa
|
Recommend Products
Product Detalis
Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.
CNC Head
ATC CNC router selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
Control system
The control system of CNC router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis,4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the itelligence of the device.
Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise.
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Safety system
ATC CNC router has the unique safety protection system and provides external
emergency stop function for equipment
users. This function can effectively pro-
tect the personal safety of the equip-
ment users, meet the European safetyCE
standards, and is very popular among
users.
Sample & Application
