Quick Details
-
Application:
-
Chillers, Air compressor etc
-
Function:
-
vibration reduction
-
Color:
-
red, black, white etc
-
Certification:
-
ISO9001:2008
-
Corrosion:
-
anti-corrosion
-
Elasticity:
-
great
-
Damping:
-
C/Cc>0.07
-
Type:
-
HVAC Systems
Quick Details
-
Place of Origin:
-
China
-
Material:
-
Galvanized Steel
-
Product name:
-
Spring Vibration Isolator
-
Application:
-
Chillers, Air compressor etc
-
Function:
-
vibration reduction
-
Color:
-
red, black, white etc
-
Certification:
-
ISO9001:2008
-
Corrosion:
-
anti-corrosion
-
Elasticity:
-
great
-
Damping:
-
C/Cc>0.07
-
Type:
-
HVAC Systems
| Product Name |

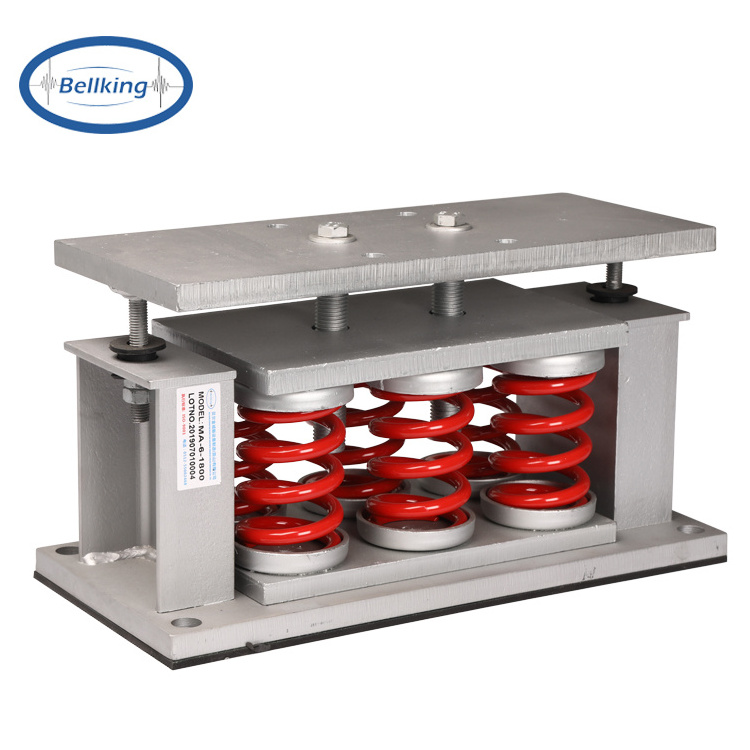

spring mount vibration isolator - type MA |
| Characteristics |
. The spring is designed with low natural frequency and surface treatment by ED and stoving varnish. . Spring has very long service life which is processed by heat treatment and stress removal . . The ontology is treated with longzine . . The bottom is anti - skid and stopper bolt design, which is very safety . . Simple installation and height adjustable according to actual need. . Good vibration attenuation and can increase the service life of equipment. . Deflection is 25mm under nominal load. |
| Application |
. Heavy machinery. . Chillers , water cooling tower. . Firing pump, Exhaust fan. . Generator, Air compressor |
| Spec | Size (mm) | Bolt | |||||||
| L | W | L1 | W1 | A | B | H |
BD |
||
|
MA-1 |
260 |
100 |
210 |
100 |
230 |
0 |
200 |
16 | M12 |
|
MA-2 |
235 |
220 |
235 |
120 |
195 |
180 |
200 |
16 | |
|
MA-4 |
320 |
165 |
320 |
165 |
290 |
135 |
220 | 14 | |
|
MA-6 |
400 |
170 |
400 |
170 |
370 |
140 |
220 | 18 | |
|
MA-9 |
420 |
250 |
420 |
250 |
384 |
214 |
220 | 18 | |
|
Type |
Rated Capacity Kg |
Spring Rate Kg/mm |
Rated Deflection mm |
|
MA-1-100 |
90-110 | 4.2 | 25 |
|
MA-1-200 |
160-210 | 7.1 | 25 |
| MA-1-300 | 220-320 | 10.8 | 25 |
|
MA-1-400 |
360-430 |
14.2 |
25 |
|
MA-1-500 |
470-530 |
19.2 |
25 |
|
MA-1-600 |
530-650 |
22.6 |
25 |
|
MA-1-700 |
650-700 |
26.0 |
25 |
|
MA-1-850 |
700-850 | 33.6 | 25 |
| MA-1-1000 | 850-1000 | 46.0 | 25 |
| MA-2-800 | 700-850 | 28.4 | 25 |
| MA-2-1000 | 950-1050 | 38.3 | 25 |
|
MA-2-1200 |
1050-1250 |
45.2 |
25 |
|
MA-2-1400 |
1250-1400 |
52.0 |
25 |
|
MA-2-1700 |
1400-1700 |
68.0 |
25 |
|
MA-2-2000 |
1850-2150 |
92.1 |
25 |
|
MA-4-1200 |
880-1300 |
43.2 |
25 |
|
MA-4-1600 |
1450-1700 | 56.8 | 25 |
| MA-4-2000 | 1800-2000 | 76.6 | 25 |
| MA-4-2400 | 2000-2400 | 90.3 | 25 |
| MA-4-2800 | 2400-2800 | 103.2 | 25 |
| MA-4-3400 | 2800-3400 | 136.0 | 25 |
|
MA-4-4000 |
3200-4000 |
184.1 |
25 |
|
MA-6-3600 |
3000-3600 |
135.5 |
25 |
|
MA-6-4200 |
3600-4200 |
155.9 |
25 |
|
MA-6-5100 |
4200-5100 |
204.0 |
25 |
|
MA-6-6000 |
4600-6100 |
276.0 |
25 |
|
MA-9-5400 |
4700-5800 |
216.0 |
25 |
|
MA-9-6300 |
5800-6400 |
252.0 |
25 |
|
MA-9-7500 |
6500-7500 | 305.0 | 25 |
| MA-9-9000 | 7600-9000 | 359.0 | 25 |
- Packaging Details:Carton Box with Pallet or Wooden Case
- Delivery Time:20 Working Days
