Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HT
-
Model Number:
-
HT-1000w
-
Input Voltage:
-
12~48VDC(V)
-
Output Voltage:
-
220V(V)
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
470*335*210mm
-
Certificate:
-
CE Rosh, FCC
-
Warranty:
-
2 yaers
-
Weight:
-
12-33kg
-
Product name:
-
Solar inverter
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Off-grid Power Inverter
-
Rated power:
-
300-10000w
-
Battery type:
-
Lithium/VRLA/GEL/GEL DEEP CYCLE
-
Display:
-
LCD
-
Protection:
-
Overload
-
Waveform:
-
Pure Sin Wave
-
Feature:
-
Energy Saving Solar Inverter
-
Efficiency:
-
98% Max
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/DC Converters, DC/AC Inverters, AC to AC
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HT
-
Model Number:
-
HT-1000w
-
Input Voltage:
-
12~48VDC(V)
-
Output Voltage:
-
220V(V)
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
470*335*210mm
-
Certificate:
-
CE Rosh, FCC
-
Warranty:
-
2 yaers
-
Weight:
-
12-33kg
-
Product name:
-
Solar inverter
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Off-grid Power Inverter
-
Rated power:
-
300-10000w
-
Battery type:
-
Lithium/VRLA/GEL/GEL DEEP CYCLE
-
Display:
-
LCD
-
Protection:
-
Overload
-
Waveform:
-
Pure Sin Wave
-
Feature:
-
Energy Saving Solar Inverter
-
Efficiency:
-
98% Max
Products Description
Solar Inverter wholesale

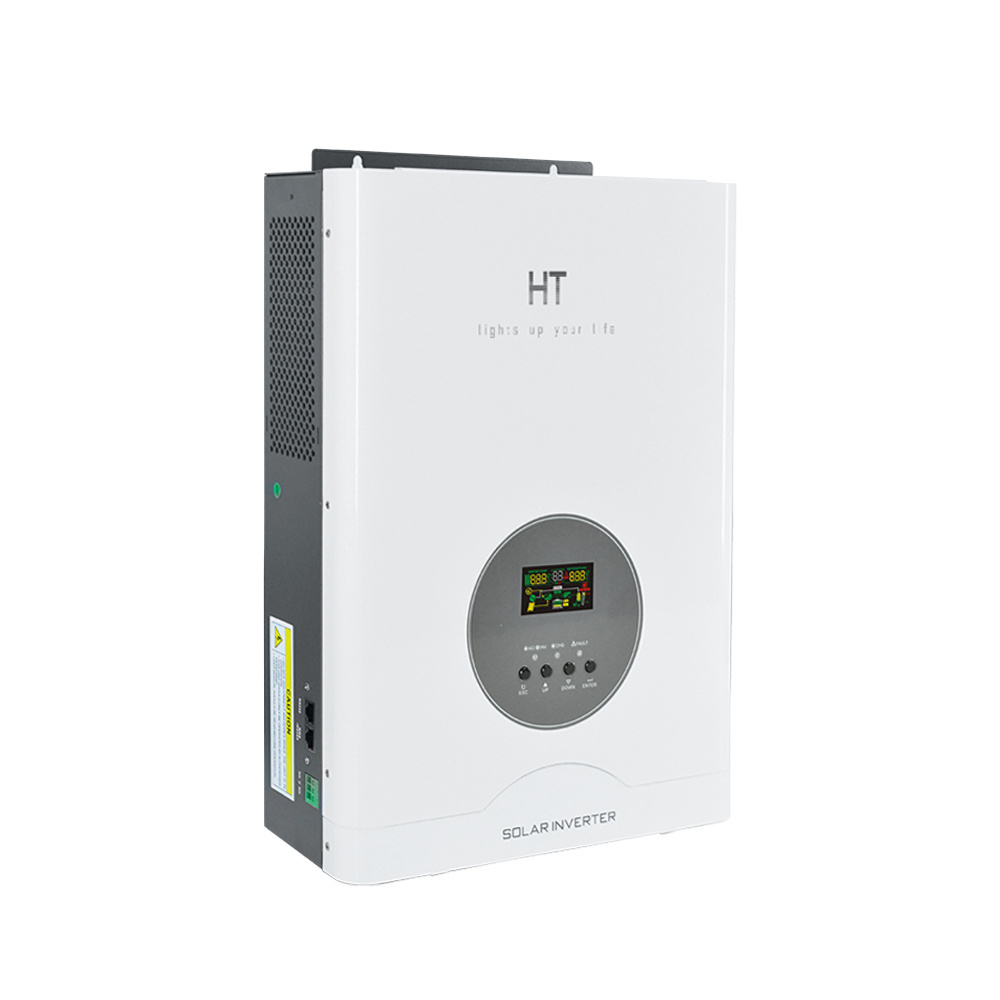

HT Renewable Energy Solar inverters 6KW8KW 10KW Off Grid Solar Power Inverter MPPT Smart WiFi 220V Pure Sine Wave Solar Inverter
Application
Specification
|
MODEL
|
HT-800W
|
HT-1200W
|
HT-1600W
|
HT-2400W
|
HT-3200W
|
HT-4000W
|
HT-4800W
|
HT-6400W
|
HT-8000W
|
|||||||||
|
Battery voltage
|
12V
|
|
24/48V
|
|
|
|
48V
|
|
|
|||||||||
|
Battery type
|
Lithium/VRLA/GEL/GEL DEEP CYCLE
|
|
|
|
|
|
|
|
|
|||||||||
|
INVERTER OUTPUT
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Rated power
|
1000VA/800w
|
1500VA/1200W
|
2000VA/1600W
|
2400VA/2400W
|
3200VA/3200W
|
5000VA/4000W
|
6000VA/4800W
|
8000VA/6400W
|
10000VA/8000W
|
|||||||||
|
Efficiency(peak)
|
98%
|
|
|
|
|
|
|
|
|
|||||||||
|
Waveform
|
Pure sine wave
|
|
|
|
|
|
|
|
|
|||||||||
|
Transfer time
|
10ms typical,20ms max
|
|
|
|
|
|
|
|
|
|||||||||
|
SOLAR CHARGER
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Maximum pv array power
|
720W
|
|
1400W-2800W
|
|
|
3400W
|
|
|
|
|||||||||
|
MPPT range
|
18V-150V
|
|
34V-150V/68-150V
|
60V-150V
|
|
|
|
|
|
|||||||||
|
PWM Maximum PV displayopen circuit voltage
|
38V
|
|
75V
|
|
|
|
|
|
|
|||||||||
|
Maximum pV arrayopen circuit voltage
|
150VCD
|
|
|
|
|
|
|
|
|
|||||||||
|
Maximum solar charge current
|
60A
|
60A/100A/120A
|
|
|
|
|
|
|
|
|||||||||
|
AC CHARGER
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Charge Current
|
20A
|
30A
|
20A/15A
|
30A/15A
|
40A/20A
|
55A/28A
|
30A
|
45A
|
55A
|
|||||||||
|
Low Level disconnect (Selectable)
|
10V-11V
|
|
40V-44V
|
|
|
|
40V-42V
|
|
|
|||||||||
|
Frequency
|
50/60HZ
|
|
|
|
|
|
|
|
|
|||||||||
|
PHYSICAL
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Protection Degree
|
IP20
|
|
|
|
|
|
|
|
|
|||||||||
|
Size L*W*H (mm)
|
470mm*335mm*210mm
|
720*335*210mm
|
|
|
|
|
|
|
|
|||||||||
|
Net Weight (kgs)
|
12
|
18.5
|
18.5
|
20
|
22
|
22
|
23
|
30
|
33
|
|||||||||
|
OPERATING ENVIRONMENT
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Humidity
|
-10℃~90℃ Non condensing
|
|
|
|
|
|
|
|
|
|||||||||
|
Temperature
|
0°C - 60°C
|
|
|
|
|
|
|
|
|
|||||||||
|
Accoustic Noise (db)
|
>55dB
|
|
|
|
|
|
|
|
|
|||||||||
|
Altitude
|
<2000m
|
|
|
|
|
|
|
|
|
|||||||||
