epoxi clear fiberglass rod

Product Description

Friend! If you need square or hexagonal fiberglass rod , please click here and tell me specification. I will give you the lowest price separately!

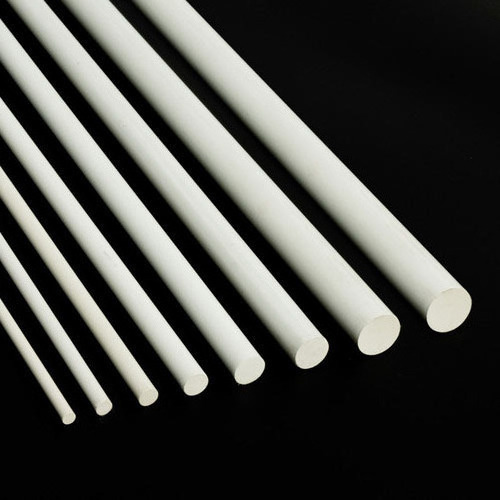

Fiberglass  round  Rod * E-class ( Fiberglass)+ Epoxy resin (Iso 9001-2008 Compliant)* *the below sheet is our stock size ,custom size,custom shape and custom color can be accpted *
Diameter (mm)	Diameter (inch)		Diameter (mm)	Diameter (inch)
0.6	0.024		9	0.354
0.8	0.031		9.525	3/8
1	0.039		10	0.394
1.5	0.059		10.5	0.413
2	0.079		11	0.433
2.5	0.098		12	0.4724
3	0.118		12.7	1/2
3.175	1/8		13	0.512
3.5	0.138		15.875	5/8
4	0.157		16	0.630
4.7625	3/16		19.05	3/4
5	0.197		20	0.787
5.5	0.216		25.4	1
6	0.236		28	1.1
6.35	1/4		30	1.1811
7	0.275		50.8	2
8	5/16		76.2	3
			130	5.118

------------------------------------------- Application of the Fiberglass Rod ------------------------------------------------

Fiberglass rod is made of glass fiber, resin and additives as raw materials, through pultrusion process, with corrosion resistance, high strength, electrical insulation characteristics of high-performance composite materials.Widely used in production: tent pole, plant support pole, snow markers, flag pole, umbrella frame, arrow pole, ball pole, horsewhip, garden tool handle,electrical insulation products.

1,Plant support rod:High strength\no rust\no fading\Oxidation resistance\long life

2,Safety Markers: 360° reflector\snow markers\driveway markers

3,tent pole :Light weight, strong toughness, anti-oxidation,no rust,no fading

4,other Application:

What do you do with it, I will give you the best advice.please tell me here:

Certificate &Feature

Light Weight High Strength	Low Density: about 1.8, 1/4 of steel, Specific strength:Same strength as steel
Non-Conductive Thermally And Electrically	Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
High Corrosion Resistance	No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
Anti-aging	Have more than 20 years effective service life under normal outdoor working condition.

physical properties			mechanical property
Density	g/cm3	1.7~2.0	Barcol hardness		≥55
Fiberglass content	%	50~65	Tensile Strengh(lengthways)	Mpa	≥550
Water Absorption	%	≤0.2	Tensile Strengh(crosswise)	Mpa	≥65
electrical property			Flexural Strengh(lengthways)	Mpa	≥600
breakdown voltage	kv/mm	≥10	Flexural Strengh(crosswise)	Mpa	≥70
Arc Resistance	S	≥180	Hole crushing strength(lengthways)	Mpa	≥90
Comparative tracking index	V	≥600	Hole crushing strength(crosswise)	Mpa	≥50
			shear strength	Mpa	≥15

Friend, if you still worried about the product quality, please tell me here without hesitation , let's start from the sample list . I have absolute confidence in the quality of my products

Conpany Profile

We have 10 pultrusion production lines and ten sets of hydropress,the company is devoted into the design and production of molded profiles,pultruded profiles and hand-made products of fiber reinforced plastic.Main products include FRP Pultrusion profiles(Rod, tube, plate, strip,rebar),FRP grating,FRP cable trays,FRP support beams,hand lay-up FRP products and others.and we accept customized products,We provide customers with bonding accessories, drilling, sharpening, chamfering, taper grinding and other machining services to save your time.The products have been exported to North America, Western Europe, Japan, Southeast Asia and other countries.

--------------------------------------------FAQ------------------------------------------------
Q:Can you provide sample?
A:Yes,sample is free,but you need to pay for shipmennt.
Q:What's the terms of delivery?
A:EXW,FOB,CIF
Q:How long is your delivery time?
A:Generally it will take 3 to 15days after receiving the deposit.The specific delivery time depends on the items and the order quantity.

Q:Can your factory customize the products according to usage?
A:Yes,we supply customized products and provide designing method.

If you have other requirements, or want to know the price of our products , please click here email to me!
