Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOKE
-
Model Number:
-
AK-RK02S-12+AK-SF02
-
Operating Temperature:
-
-40'C~+80'C, -40'C~+80'C
-
Coding type:
-
Learning code
-
working frequency:
-
315mhz/433mhz
-
Receiving Sensitivity:
-
-105dB
-
Transmitting Distance:
-
20-100M
-
PCB size:
-
72mm*52mm*20mm
-
Quiescent Current::
-
0MA
-
Output Mode:
-
Contact output(AC and DC)
Quick Details
-
Max. Current:
-
10A, 10A
-
Max. Voltage:
-
12V, 12V
-
Network:
-
RF
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOKE
-
Model Number:
-
AK-RK02S-12+AK-SF02
-
Operating Temperature:
-
-40'C~+80'C, -40'C~+80'C
-
Coding type:
-
Learning code
-
working frequency:
-
315mhz/433mhz
-
Receiving Sensitivity:
-
-105dB
-
Transmitting Distance:
-
20-100M
-
PCB size:
-
72mm*52mm*20mm
-
Quiescent Current::
-
0MA
-
Output Mode:
-
Contact output(AC and DC)

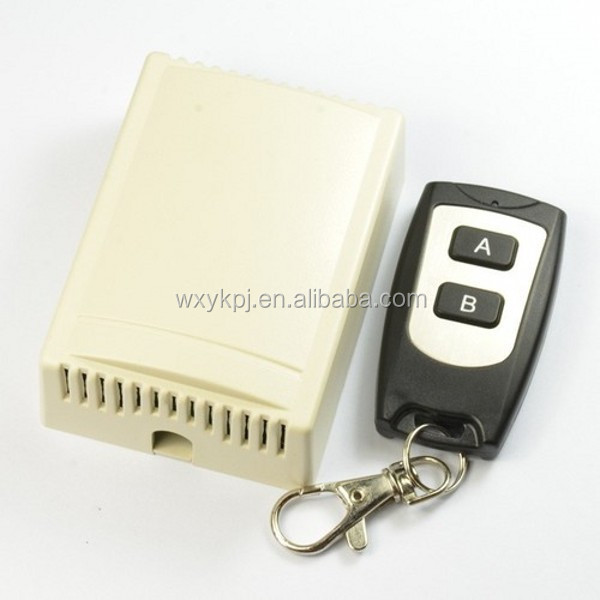

This DC12V 2 channel wireless remote control operates in the 315/433MHz frequency. Just press slightly the button on the remote, you can control universal DC/AC electrical devices. It can be mainly used to control many kinds of lights with voltage of DC0~250V; or motor open/close, such as motor of pump.
Feature:
· Wireless control, easy to install
· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with D C 0~250 V
· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
· This switch can learn different coding remote controls(such as 2262,1527,2240 ect.)
· One/several transmitters can control one/several receivers simultaneously.
· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won ’ t affect each other.
· Transmitting Frequency: 315MHz / 433MHz
· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.
Specification:
Receiver
| Max. Voltage | DC12V |
| Max. Current | 10A |
| Quiescent Current | 0mA |
| Coding type | Learning Code |
| Receive Frequency | 315MHz/433.92MHz ±150KHz |
| Receiving Sensitivity | -95dB |
| Working Way | Jog,Interlock,Self-lock |
| Output Mode | Contact output(AC and DC) |
| PCB Size | 70*50*18mm |
| Launch Distance | 30-100m |
| Working Temperature | -10 to +60 centigrade |
Transmitter
| Working Voltage | DC6V |
| Working Current | 12mA |
| Transmitter Frequency | 315MHz/433.92MHz ±150KHz |
| Transmitting Distance | 30-100m |
| Encoding Type | Fixed Code,Learning Code |
| Encoding Way |
Fixed Code by soldering Learning code by learning |
| Remote size | 50*33*17mm |
Application:
· Garage door control
· Access control system
· Home/Mall Automation systems such door/window/curtain control,lights control ect.
· Kinds of motor control system
Packing: Plastic bag and carton or as you requested
Shippping: DHL/UPS/TNT/Fedex/Parcel
Service
Trading
1.Accept OEM.
2.Print logo on the case and pakage
3.Payment Details :30%deposite,70%balance before shipment.Payment accept T/T and western union optional.
4.Minimum Order:1000 pcs(accept trial order)
5.Delivery Details:within two weeks.
Service
1.Your inquiry related to our products or prices will be replied in 12 hours
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders
Why we choose your company?
Dear buyer.
1. 80-90% worker from our factory has been working here over 4 years, Which can gives you gurantee of stable quality of products
2.The foreign trading department in our company is very amazing. All of them are highly educated, Professional and responsible. Any question in this line will be solved in a short time.Meanwhile they can give you more advice or sales strategy.
3.No matter hardware or software, The products of our company have both advantages .
For example. Our remote duplicator will copy the products very easily and in a short time. But some others will need you to change its position or clone faliure sometimes.
4.The Best Software engineer in this line: One the the best software engineer from Shenzhen is working in our compnay. Which is dealing in this line over 10years.
Q:How to buy products on your website?
Dear Buyer, Because We are factory ,can make all the specifications remote control.
So First : Please choose one products you need, and contact us directly by email or trademanager.
Second, Professional sales and engineer group will answer your question after we received your inquiry.
Q:About trading:
1.FOB: product cost+freight to Shenzhen Port
2.CIF: Products cost+ Freight to your country+ Insurance
3.EXW: Products cost only.
Lead time
| Lead time | |
| 1-1000pcs | 3-7 working days |
| 1000-3000pcs | 7-15 working days |
| Over 3000pcs | depending on circumstances |
| OEM/OEM Products | depending on circumstances |
Q:Delivery time:
DHL/UPS/TNT/Fedex( express): 3-7day
By parcel or by ship : 15-65 days
Q:About Paymet:
Our company accept three kinds of payment:
1.Paypal
2.West Union
3.T/T
Q:About Warranty:
Normally products warranty is 1 yedear.
OEM/ODM products is: 5-10 years
Disclaimer: All the warranty should be under Non-human factors and cases of correct use and installation
