- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Freezer Cold Box Truck
-
Brand:
-
Dongfeng Foton JAC JMC HOWO
-
Name:
-
Thermo King Refrigerated Van
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Type:
-
Mini Freezer Box Truck
-
Chassis Brand:
-
HOWO.DongFeng.FAW.Foton.JAC.IVECO.Shacman
-
Application:
-
Transport Freezer Food
-
Engine:
-
CHAOCHAI, YUCHAI, CUMMINS
-
Refrigeration unit:
-
USA Thermo King Brand
-
Color:
-
customer's requirement
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
Gross Vehicle Weight:
-
8900
-
Product name:
-
Freezer Cold Box Truck
-
Brand:
-
Dongfeng Foton JAC JMC HOWO
-
Name:
-
Thermo King Refrigerated Van
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Type:
-
Mini Freezer Box Truck
-
Chassis Brand:
-
HOWO.DongFeng.FAW.Foton.JAC.IVECO.Shacman
-
Application:
-
Transport Freezer Food
-
Engine:
-
CHAOCHAI, YUCHAI, CUMMINS
-
Refrigeration unit:
-
USA Thermo King Brand
-
Color:
-
customer's requirement

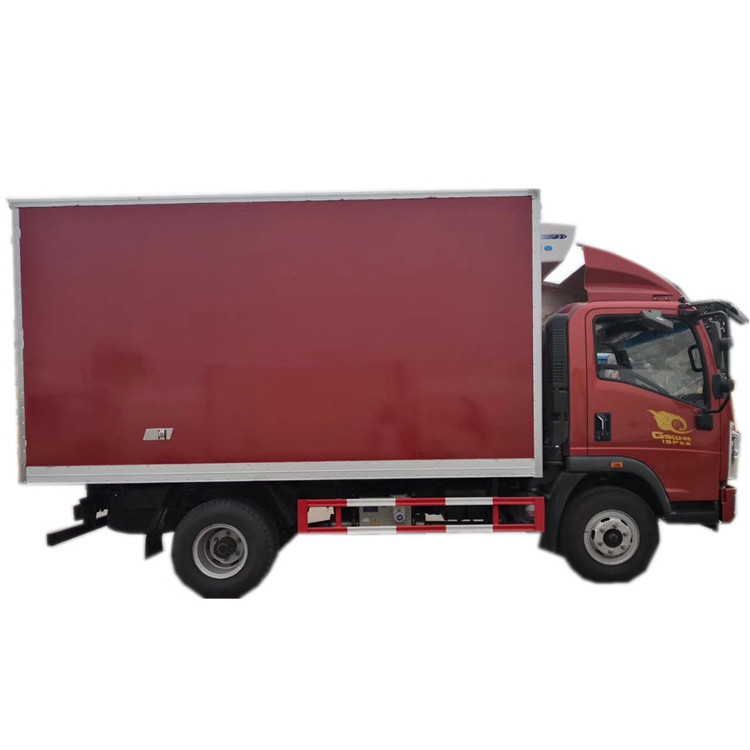

HOWO 4*2 6 wheeler 154hp used thermo king food truck cooling van freezer truck
Refrigerator truck is a van or a truck designed to carry perishable freight at specific temperatures. Refrigerator Truck is also called refrigerated Truck, mini refrigerators freezers, mini cool truck, cheap small refrigerator car. Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit) which are not fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engine, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.
1.We have different truck brand for refrigerator / refrigerated truck, Sinotruk HOWO, JAC, FOTON, DONGFENG, Japanese truck.
2. We have different loading capacity from 2tons to 40 tons refrigerator / refrigerated truck.
The technical parameter for refrigerator trucks
|
Cabin |
Driving type 4x2 |
|
|
2080 cab, with two seats and one sleeper, with A/C, with wind deflector |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
7995×2500×2850 |
|
Wheel base (mm) |
4500 |
|
|
Wheel track (front/rear) (mm) |
1845/1796 |
|
|
Approach/Departure angle(°) |
18/18 |
|
|
Weight in KGS |
Tare Weight |
5095 |
|
payload |
10000 |
|
|
Front axles loading capacity |
2700 |
|
|
Rear axles loading capacity |
7200 |
|
|
Max. driving speed ( km/h ) |
95 |
|
|
Engine |
Brand |
Cummins |
|
Model |
ISF3.8 |
|
|
Horse Power(HP) |
154hp |
|
|
Emission standard |
Euro Ⅱ |
|
|
Gearbox |
WLY6T4, 6 forwards & 1 reverse |
|
|
Fuel tank(L) |
120L |
|
|
Tire |
7.50R16 radial steel tires, 6 pieces with one spare |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Refrigerating System |
1, Box Size: 5750mm*2300mm*2500 mm. 2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm. 3, Working temperature is minus 18 Celsius degree. American brand Thermo King integrated refrigeration unit. 4, Rear door open |
|
Detail Images
The refrigerator trucks can be shipped by bulk, ro-ro and containers.
