Quick Details
-
Brand Name:
-
sunpower
-
Model Number:
-
XXR-sunpower -25.2%
-
Product name:
-

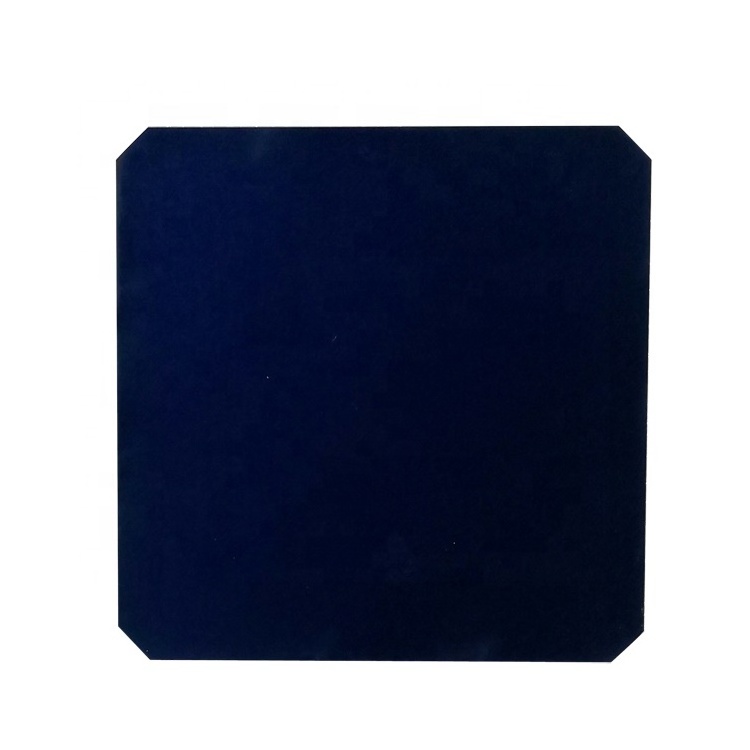

custom flexible sunpower solar cell c60 c66 high efficiency 25.2%
-
material:
-
monocrystalline silicon
-
color:
-
dark blue
-
sunpower cell size:
-
125mm *125mm
-
busbar:
-
none busbar, busbar-free
-
weight:
-
1.5 kg /150pcs
-
power watt:
-
3.89w
-
efficiency:
-
25.2%
-
stock ability:
-
100K pcs
-
Warranty:
-
5years
Quick Details
-
Type:
-
IBC
-
Cell Efficiency:
-
25.2%
-
Place of Origin:
-
United States
-
Brand Name:
-
sunpower
-
Model Number:
-
XXR-sunpower -25.2%
-
Product name:
-
custom flexible sunpower solar cell c60 c66 high efficiency 25.2%
-
material:
-
monocrystalline silicon
-
color:
-
dark blue
-
sunpower cell size:
-
125mm *125mm
-
busbar:
-
none busbar, busbar-free
-
weight:
-
1.5 kg /150pcs
-
power watt:
-
3.89w
-
efficiency:
-
25.2%
-
stock ability:
-
100K pcs
-
Warranty:
-
5years
custom flexible solar cell c60 c66 high efficiency 25.2% tabbing sunpower cell
custom flexible solar cell c60 c66 high efficiency 25.2% tabbing sunpower cell
|
Product name |
custom flexible solar cell c60 c66 high efficiency 25.2% tabbing sunpower cell |
|
size |
125*125mm |
|
material |
monocrystalline silicon |
|
color |
blue
|
|
busbar |
busbar free, none busbar |
|
power watt |
3.89w
|
| efficiency | 25.2% |
|
Vmpp
|
0.55V |
| Impp | 7.08A |
| Solar cell grade | A grade |
DATA SHEET
---------§-------- -
| Efficiency Code | 2430 | 2240 | 2260 | 2370 | 2480 | 2520 |
| Efficiency(%) | 24.3 | 22.40 | 22.60 | 23.70 | 24.80 | 25.2 |
| Pmax(W) | 3.72 | 3.4400 | 3.460 | 3.63 | 3.78 | 3.89 |
| Vmp(V) | 0.56 | 0.556 | 0.558 | 0.560 | 0.56 | 0.56 |
| Imp(A) | 6.64 | 6.115 | 6.201 | 6.250 | 6.78 | 6.94 |
| Voc(V) | 0.66 | 0.656 | 0.658 | 0.661 | 0.661 | 0.661 |
| Isc(A) | 7.04 | 6.727 | 6.821 | 6.875 |
PYSICAL
CHARACTERISTIC
---------§-------- -
| Dimension |
125*31.25mm, 125*125mm cut by 1/4
|
|||||
| Solar Cell Thickness | 180µm ± 20µm | |||||
| Front(-) | Blue silicon nitride anti-reflection coatings,none busbar | |||||
| Back(+) | Full-surface aluminum back-surface field, none busbar | |||||
