Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa Heavy Industry
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
3000 kg
-
Type:
-
Truck loading conveyor
-
Making material:
-
Carbon steel, SS304, SS316
-
Belt width:
-
500mm-1400mm
-
Belt Speed:
-
0.4-1.25m/s
-
Machine length:
-
3-25m
-
Lifting height:
-
1.2-9.7m
-
Belt material:
-
rubber belt, PVC, PU, EP, or as required
-
Color:
-
customer design
-
Include control box:
-
YES
-
Motor:
-
YuTong or as required
-
Certification:
-
ISO9001:2008
Quick Details
-
Power:
-
Based on client's real needs
-
Warranty:
-
2 years
-
Width or Diameter:
-
500-1400mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa Heavy Industry
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
3000 kg
-
Type:
-
Truck loading conveyor
-
Making material:
-
Carbon steel, SS304, SS316
-
Belt width:
-
500mm-1400mm
-
Belt Speed:
-
0.4-1.25m/s
-
Machine length:
-
3-25m
-
Lifting height:
-
1.2-9.7m
-
Belt material:
-
rubber belt, PVC, PU, EP, or as required
-
Color:
-
customer design
-
Include control box:
-
YES
-
Motor:
-
YuTong or as required
-
Certification:
-
ISO9001:2008

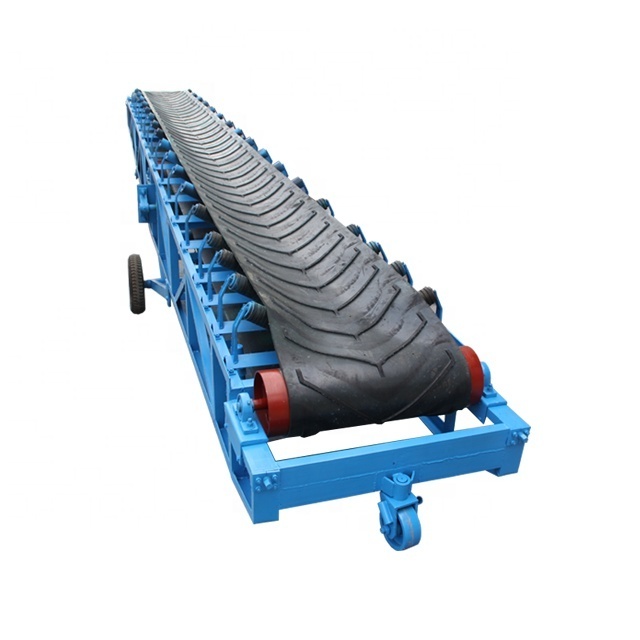

Truck Loading Mobile Belt Conveyor/Material Handling Conveying Equipment
>> Click to get price quickly!
Mobile belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m 3 . It can be also used in conveying packed bags or cartons.
|
Item |
DY400 |
DY500 |
DY650 |
DY800 |
DY1000 |
|
|
Length(m) |
3~25 |
|||||
|
Belt width(mm) |
400 |
500 |
650 |
800 |
1000 |
|
|
Belt speed(m/s) |
0.4~1.25 |
|||||
|
Lifting height(m) |
1.2~9.7 |
|||||
|
Conveying capacity |
(t/h) |
40-80 |
70-145 |
130-265 |
200-330 |
320-500 |
|
(pcs/h) |
800 |
1400 |
2600 |
3000 |
3500 |
|
About YingDa:
Henan YingDa Heavy Industry Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
1. What's material will be transported by belt conveyor?
Grain, sand and crushed stone etc bulk material, or cartons, bags etc.
2. What's the capacity of belt conveyor you want if bulk material?
10t/h, 30t/h, 50t/h etc.
3.
How long is the belt conveyor you want, or discharge height?
10m, 20m,30m, ect.
4. What's the dimensions (L X W) of carton or bags if packed material?
L500xW600mm
5. Other special require?
ABB, SIMENS brand motor available.
