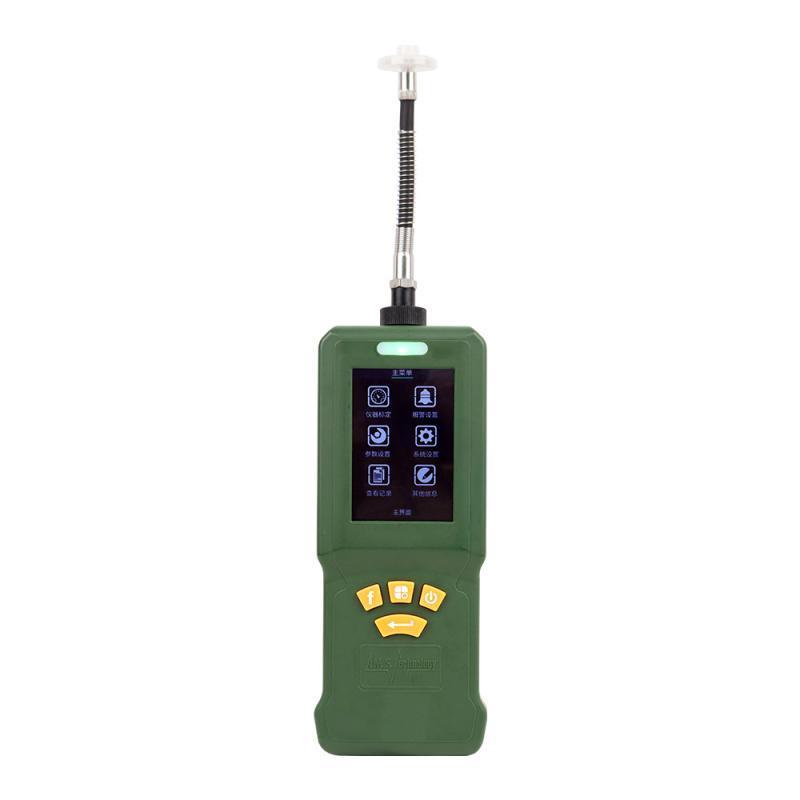

A.M.S. Technology SD1000 Portable Gas Analyzer with high accuracy and resolution VOCs gas emission detection

A.M.S. Technology SD1000 Portable Gas Analyzer with high accuracy and resolution VOCs gas emission detection

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2790

≥5 Pieces

US $2650

≥10 Pieces

US $2370

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SD1000

Product name:: Portable Handheld VOCs Monitor

Model:: SD1000

Brand:: A.M.S Technology

Sensors:: 10.6 eV UV lamp PID sensor(optical)

Detection Range:: 0.001-10000ppm

Resolution:: 1ppb

Response Time(T90):: 2s

Detection Accuracy:: ±3%

Weight:: 700g

Country of Origin:: China

Quick Details

Warranty:: 1 YEAR

Place of Origin:: Tianjin, China

Brand Name:: A.M.S. Technology

Model Number:: SD1000

Product name:: Portable Handheld VOCs Monitor

Model:: SD1000

Brand:: A.M.S Technology

Sensors:: 10.6 eV UV lamp PID sensor(optical)

Detection Range:: 0.001-10000ppm

Resolution:: 1ppb

Response Time(T90):: 2s

Detection Accuracy:: ±3%

Weight:: 700g

Country of Origin:: China

Products Description

SD1000 is a highly sensitive broad-spectrum handheld volatile organic compound (VOCs) gas detector. It uses a new generation of photoionization detector (PID) to enhance detection accuracy and response time. The detection range is from 1 ppb to 10000 ppm. Through the wireless module, it can achieve wireless data transmission and remote monitoring with the console. It can be widely used in environmental protection, occupational health, emergency rescue, industrial safety, petroleum, and petrochemical industries.

Product Features

•Accurate VOCs detecting

• 2-Seconds Response Time

• Build-in Bluetooth and wireless module, • transmit data in real-time • Easy to operate and maintain

• Auto-cleaning lamp technology

• Wide Linear range and High accuracy

•Large Graphic and Text Display

APPLICATIONS • Environmental Protection • Occupational Health and Safety • Emergency Rescue • Petroleum and Petrochemical • Indoor Environmental Testing • In-Vehicle Environmental Testing • National Security • Battery Manufacturing • Spray Painting • Semiconductor Manufacturing • Pharmaceutical • Papermaking • Coking • Aerospace Industry • Chemical Industry

Technical parameters

ITEMS	TECHNICAL PARAMETER
Sensor Type	10.6 eV UV lamp PID sensor
Detection Range	0.001-10000ppm
Resolution	1ppb
Response Time	2s
Detection Accuracy	±3%
Correction Coefficient	Built-in for over 220 VOCs
Sapmling Method	Pump suction/Diffusion(optional)
Housing Material	Engineering plastic with rubber boot
IP Rating	IP66(Power On)/IP67(Power Off),dustproof,waterproof
Ex Certification	Ex ia IIC T4 Ga
Temperature	-20℃∽+50℃
Humidity	0%∽95% RH(non-condensing)
Display	Large graphic LCD display
Language	English+symbols
Direct Readout	Real time data, TWA, STEL, peak data, battery voltage, date and time
Alarm Method	95Db@30cm buzzer,flashing red LED
Alarms	Gas exceeds the limit, low battery voltage, sensor failure, low battery.
Alarm Setting	Independent settings for TWA, STEL, high/low alarm limits
Data Storage	Built-in storage capacity for 260,000 data points(approximately 2 months with a 1 minute inveral),including date, time, serial number, user ID, detection point ID, etc.
Sapling interval	Adjustable from 1 to 3600 seconds.
Data Communication	Built-in Bluetooth module for real-time wireless data transmission
Pump type	Built-in
Pump Flow Rate	250 ∽ 400cc/min
Battery	Rechargeable lithium-ion battery: 7.4V/6000mAH
Operating Hours	Continuous operation for up to 16 hours (depending on the working environment and frequency of use)
Charging Time	8 hours for Lithium Battery
Dimensions	229mm×52mm×82mm
Weight	700g(invluding battery)
