--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55℃ to 70℃
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SINOCONVE
-

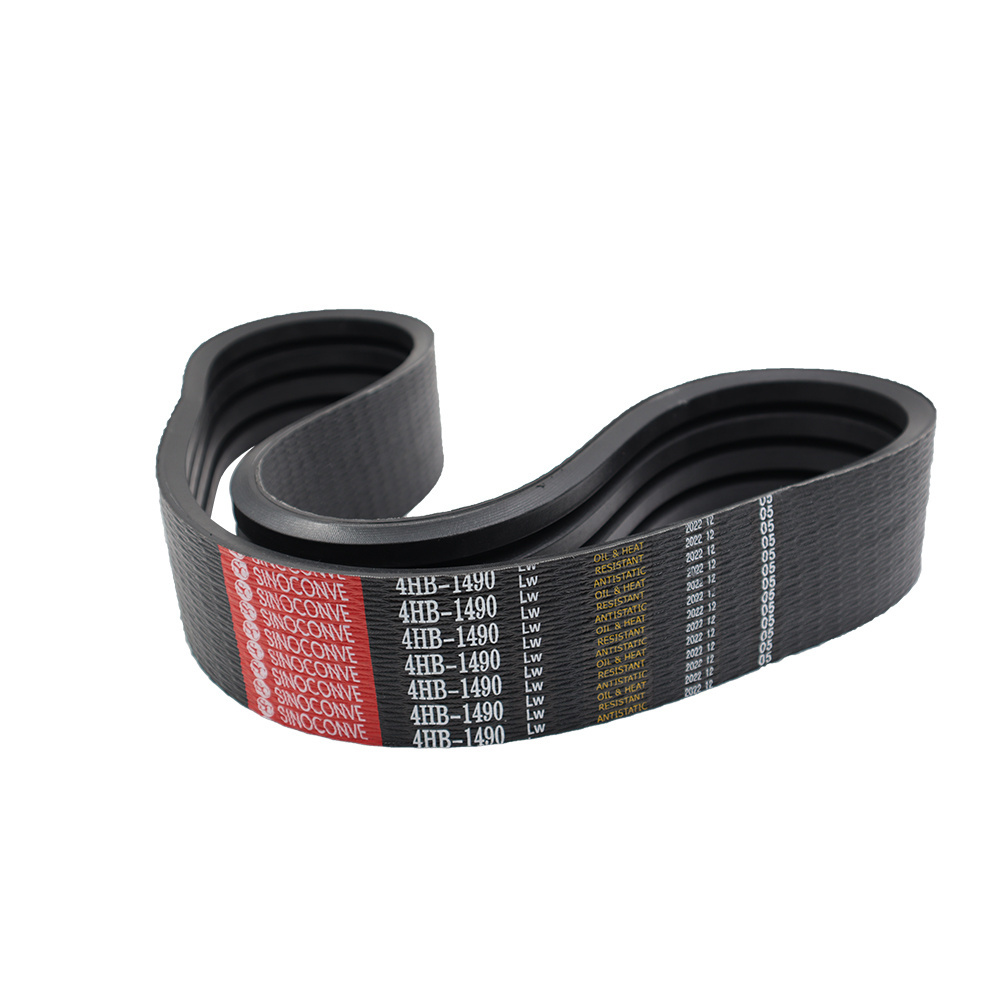

Product Name:
-
Pulley V-belt
-
Temperature range:
-
-55℃ to 70℃
-
Outside fabric::
-
Polyester cotton canvas
-
Reinforcement:
-
Polyester cord
-
Top rubber:
-
NR,SBR
-
Size:
-
Customized
-
Application:
-
V-belt
-
Key Words:
-
V Belt Price
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant
-
Standard or Nonstandard:
-
Standard
-
Type:
-
V-BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SINOCONVE
-
Product Name:
-
Pulley V-belt
-
Temperature range:
-
-55℃ to 70℃
-
Outside fabric::
-
Polyester cotton canvas
-
Reinforcement:
-
Polyester cord
-
Top rubber:
-
NR,SBR
-
Size:
-
Customized
-
Application:
-
V-belt
-
Key Words:
-
V Belt Price
Product Description
Property
Structure
Top rubber:
NR,SBR
Reinforcement:
Polyester cord
Buffer rubber:
NR,SBR
Bottom rubber:
NR,SBR
Outside fabric:
Polyester cotton canvas
Applications
-- Blending systems
-- Choppers
-- HVAC systems
-- Lawnmowers
-- Compressors
-- Crushers
-- Scarifier
Specification
Banded Jointed Rubber V belt:
Classical V belt:
|
Type
|
Top width
|
Pitch width
|
Height
|
Length range
|
Angle
|
|
|
mm
|
mm
|
mm
|
mm
|
|
|
Z/M/FM/O
|
10
|
8.5
|
6
|
280---2480
|
40°
|
|
A
|
13
|
11
|
8
|
330---8000
|
40°
|
|
B
|
17
|
14
|
11
|
457---17000
|
40°
|
|
C
|
22
|
19
|
14
|
700---17000
|
40°
|
|
D
|
32
|
27
|
19
|
1100---17000
|
40°
|
|
E
|
38
|
32
|
23
|
3300---17000
|
40°
|
Narrow V belt:
|
Type
|
Top width
|
Pitch width
|
Height
|
Length range
|
Angle
|
|
|
mm
|
mm
|
mm
|
mm
|
|
|
3V
|
9.5
|
/
|
8
|
375--3353
|
40°
|
|
5V
|
16
|
/
|
13.5
|
795---17000
|
40°
|
|
8V
|
25.5
|
/
|
23
|
2500---17000
|
40°
|
|
SPZ
|
10
|
8
|
8
|
375---3353
|
40°
|
|
SPA
|
13
|
11
|
10
|
475---7200
|
40°
|
|
SPB
|
17
|
14
|
14
|
750---17000
|
40°
|
|
SPC
|
22
|
19
|
18
|
1350---17000
|
40°
|
Other special types:
|
Type
|
Top width
|
Pitch width
|
Height
|
Angle
|
|
|
mm
|
mm
|
mm
|
|
|
3L
|
9.8
|
/
|
5.6
|
40°
|
|
4L
|
12.7
|
/
|
8
|
40°
|
|
5L
|
16.8
|
/
|
10.5
|
40°
|
|
8.5*8
|
10.5
|
8.5
|
8
|
40°
|
You may like
Production process
FAQ
Q1. Can I have a sample order for V belt?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
1)
2--3 days for sample
2)
20--30 days for mass production. If urgent,we have green channel.
Q3. Do you have any MOQ limit for V belt order?
Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on V belt product?
Yes. Please inform us your logo or design before mass production
Q5. How to guarantee your quality?
We are one of the top suppliers of International famous Belt company over years. Excellent quality is well accepted.
Please contact us for more details.
