UCP 324 Pillow Block Bearing SAIFAN UCP 324 Agricultural Machinery Bearing

UCP 324 Pillow Block Bearing SAIFAN UCP 324 Agricultural Machinery Bearing

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Bearing Number:: UCP324

Housing Number:: P324

Bearing Keywords:: UCP324 Agricultural Machinery Bearing

Bearing Material:: Chrome Steel Gcr15 and Casting Iron

Housing material:: Cast Steel

Dynamic Load Rating, Radial:: 92.7 KN

Basic Static Load Rating, Radial:: 59.9 KN

Measurement System:: Metric

Certification:: ISO9001:2008

Quick Details

Bore Size:: 1 - 100 mm

Place of Origin:: Shandong, China

Bearing Name:: UCP324 Pillow Block Bearing

Bearing Number:: UCP324

Housing Number:: P324

Bearing Keywords:: UCP324 Agricultural Machinery Bearing

Bearing Material:: Chrome Steel Gcr15 and Casting Iron

Housing material:: Cast Steel

Dynamic Load Rating, Radial:: 92.7 KN

Basic Static Load Rating, Radial:: 59.9 KN

Measurement System:: Metric

Certification:: ISO9001:2008

UCP324 Pillow Block Bearing SAIFAN UCP324 Agricultural Machinery Bearing

Pillow Block Bearing Information

Brand Name	SAIFAN Bearing or according to your requirement
Item Name	UCP324 Pillow Block Bearing SAIFAN UCP324 Agricultural Machinery Bearing
New Types	UCP324
Categories	Pillow Block Bearing
T min.	-20 °C
T max.	100 °C
Precision	P0,P2,P5,P6,P4
Clearance	C0,C2,C3,C4,C5
Bearing Package	Pallet,wooden case,commercial packaging or as customers' requirement.
Price terms	FOB,CFR,CIF,EXW
Delivery Detail	2-10 days upon receipt of deposit
Service	OEM&ODM
Shipping	Express: DHL Fedex EMS /By Sea
Bearing Advantage	1) Excellent and high quality control. 2) Prompt delivery. 3) Competitive price. 4) Small order accepted. 5) Customers' drawing or samples accepted. 6) OEM service.

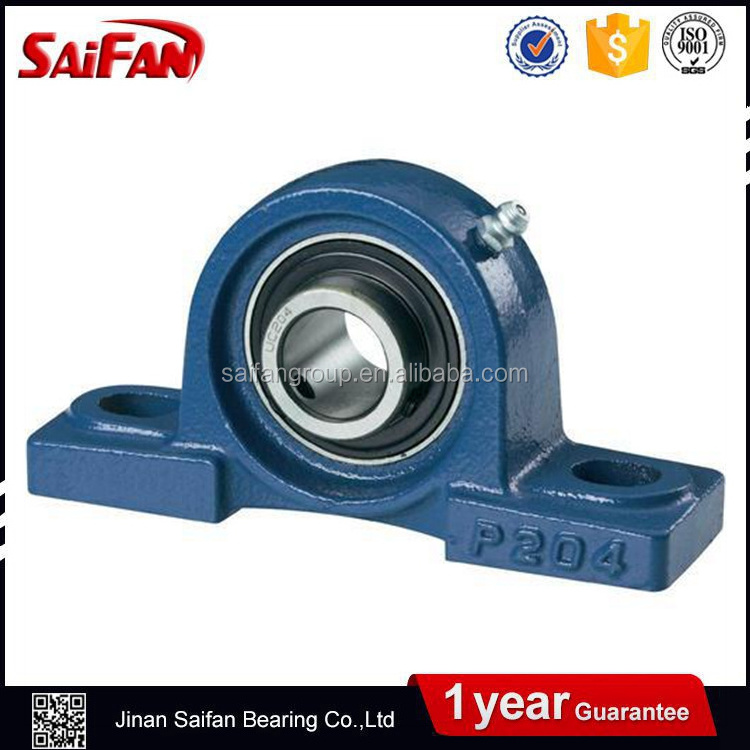

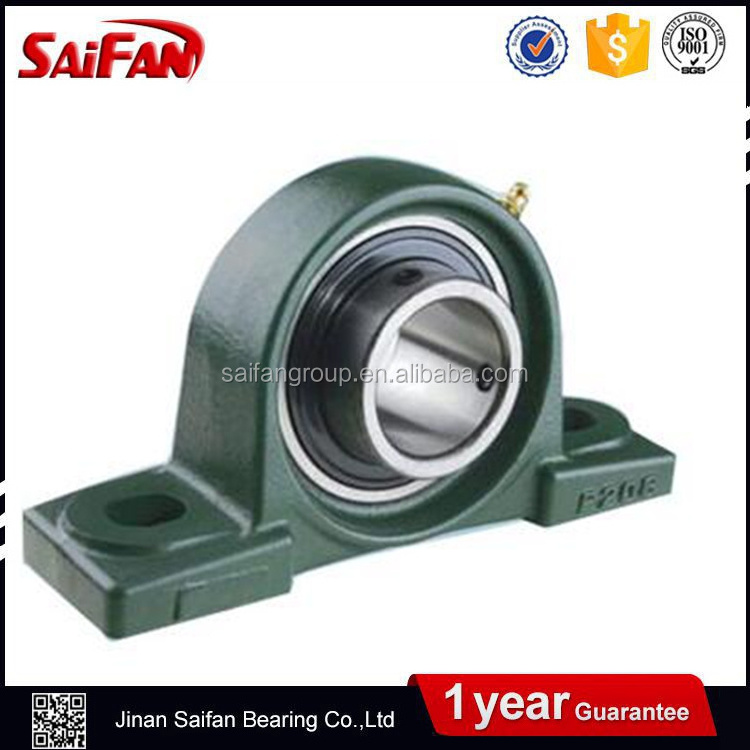

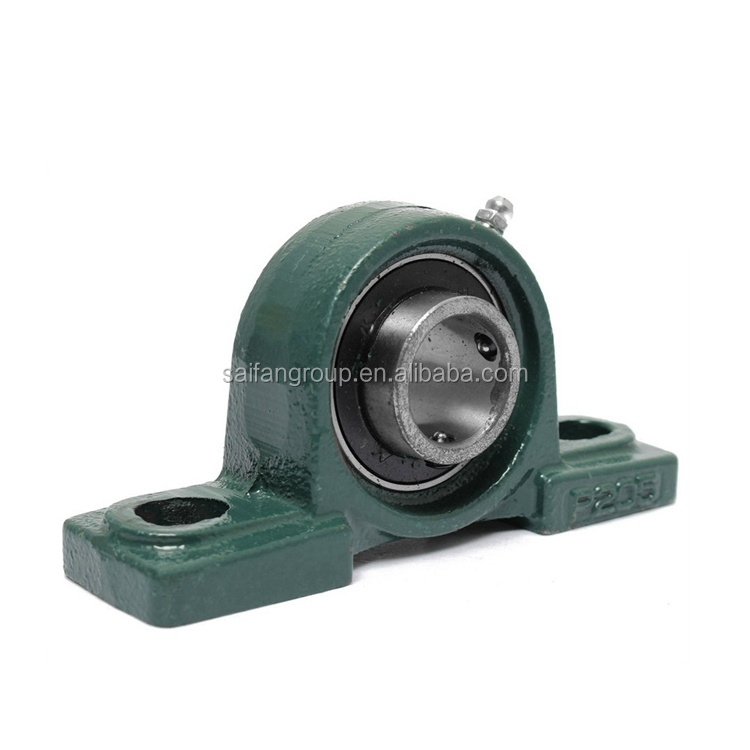

Pillow Block Bearing Photo

1.Pillow Block Bearing Specifications:

Pillow Block Bearing Cylindrical bore (with set screws) 65mm Inner Diameter Bearing This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separatel

2.Pillow Block Bearing Appon:

Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.

3. Pillow Block Bearing Features:

1bearings material quantity: Chrome Steel ,stainless steel
2.The grades of our products are P0,P6,P5
3.Technology: low vibration, low noise, high precision and durability

4.Quality&Services:

1) Information consulting

2) Product as your drawings ,

3) Design as you required,

4) Quote price & delivery date,

5) Free sample,

6) OEM & ODM,

7) Technical support etc

5.Related Pillow Block Bearing Catalogue:

Model NO.	Length(mm)	Width(mm)	Thickness(mm)
UCP305 bearing	175	45	85
UCP306 bearing	180	50	95
UCP307 bearing	210	56	106
UCP308 bearing	220	60	116
UCP309 bearing	245	67	129
UCP310 bearing	275	75	143
UCP311 bearing	310	80	154
UCP312 bearing	330	85	165
UCP313 bearing	340	90	176
UCP314 bearing	360	90	187
UCP315 bearing	380	100	198
UCP316 bearing	400	110	210
UCP317 bearing	420	110	220
UCP318 bearing	430	110	220
UCP319 bearing	470	120	250
UCP320 bearing	490	120	275
UCP321 bearing	490	120	280
UCP322 bearing	520	140	300
UCP324 bearing	570	140	320
UCP326 bearing	600	140	355
UCP328 bearing	620	140	390

6.Other Bearing:

Auto Bearing	Deep Groove Ball Bearing	Taper Roller Bearing
Spherical Roller Bearing	Angular Contact Ball Bearing	Cylindrical Roller Bearing
Pillow Block Bearing	Famous Brand Bearing	Concrete Mixer Truck Bearing

SaiFan Bearing Advantage

NO.1 Professional Bearing Manufacture Production

Jinan Saifan Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong. We are established in year 2005 and we have 10 years experience in bearing manufacture.

We mainly produce wheel hub bearings, ball bearings, roller bearings etc.

We have abundant technical force, advanced technical machines, and complete detection ways. We can produce P0 -P4, Z2 Z3 Z4 grade bearings. We own a dozens of technical experts who compose to a high-quality professional marketing team which supply high quality service in the pre-sales, sale and after-sales; we can also produce bearings according customers’ request.

NO.2 Strict Production Process

NO.3 Provide Standard quality and competitive price products for customers

SAIFAN PACKAGE & SHIPPING

SaiFan Exhibition

Why Choose SaiFan

ONLY THE BEST STEEL

ONLY THE BEST RUBBER

Saifan only uses the best chrome steel. All Saifan parts that contain metal use an expensive heat treatment process that improves metal strength and performance, also our parts use a higher level of polish to allow the bearing to roll smoother and last longer.

Each Individual component of this part is made with high quality materials. Unlike our competitors Saifan uses only high quality Natural Rubber (75%) and (25%) synthetic Rubber. This means that it is more durable, will last longer, and can handle temperatures from -40 to +140 degrees. The Rubber won’t rub off on your hand like the cheap replacement parts offered by competitors

ONLY THE BEST STEEL

ONLY THE BEST RUBBER

All Saifan Parts come with a 1 Year Warranty backed by great customer service.

The synthetic lubricant Saifan uses is 10x as expensive as our competitors, and lasts 3x as long.

GERMANY QUALITY CONTROL

Saifan Germany quality control experts ensure that all parts are of the utmost quality. We have specially developed metals and rubbers that create a super durable and long lasting end product.
