Quick Details
-
Model Number:
-
YJ-ESR30
-
Place of Origin:
-
China
-
Product name:
-
ESR Analyzer
-
Power:
-
50W
-
Measuring principle:
-
Infrared barrier
-
Reading channel:
-
30
-
Loading pattern:
-
random
-
Display:
-
LCD screen with backlight
-
Input:
-
Touch screen
-
Interface:
-
RS-232 serial port
-
Print:
-
internal thermal recorder
-
Reading resolution:
-
0.2 mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
FORERMED
-
Model Number:
-
YJ-ESR30
-
Place of Origin:
-
China
-
Product name:
-
ESR Analyzer
-
Power:
-
50W
-
Measuring principle:
-
Infrared barrier
-
Reading channel:
-
30
-
Loading pattern:
-
random
-
Display:
-
LCD screen with backlight
-
Input:
-
Touch screen
-
Interface:
-
RS-232 serial port
-
Print:
-
internal thermal recorder
-
Reading resolution:
-
0.2 mm

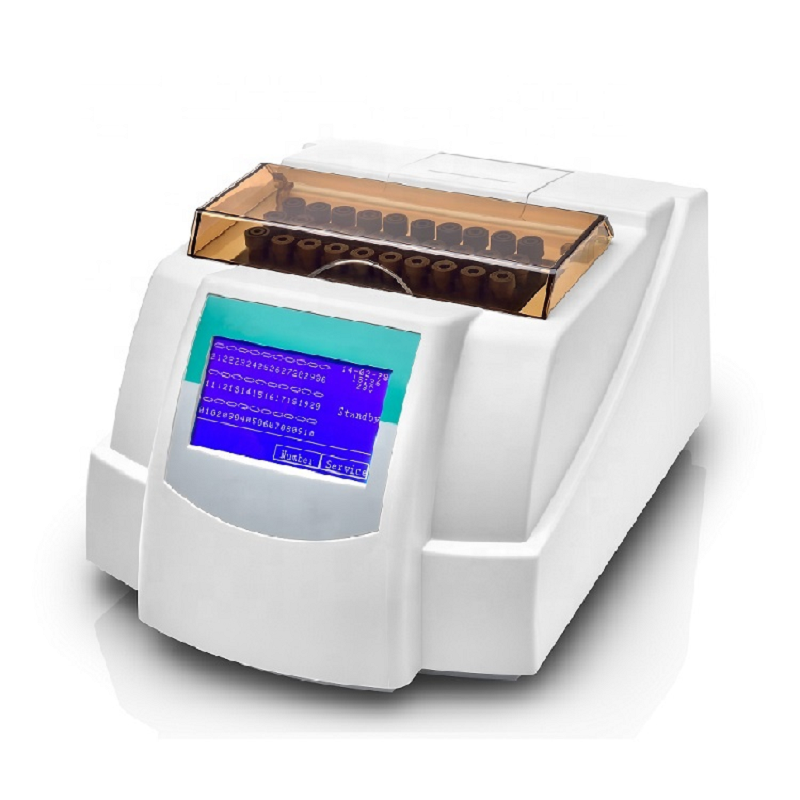

New Technology ESR Analyzer for Small Laboratory Equipment
1.Random access
2.Up to 30 tubes can be scanned simultaneously
3.Throughput: 60 samples /hour
4.Temperature compensation refer to 18ºC automatically
5.ESR curve display and print-out
6.Touch screen , large LCD display
7.Internal thermal recorder
|
Area of application |
Erythrocyte sedimentation rate analysis |
|
Measuring principle |
Infrared barrier |
|
Reading channel |
30 |
|
Loading capability |
up to 30 samples at a time |
|
Loading pattern |
random |
|
Measuring time |
30 minutes or 60 minutes selectable |
|
Throughput |
up to 60 samples per hour |
|
Analysis result |
in Westergren ESR value (mm /1h) |
|
Temperature compensation |
refer to 18 ° C automatically |
|
Reading resolution |
0.2 mm |
|
Reproducibility |
< 0.3% or ± 2mm /1h |
|
Result resolution |
1mm/1h |
|
Blood level range |
50mm~64mm |
|
Display |
LCD screen with backlight |
|
Input |
Touch screen |
|
Interface |
RS-232 serial port |
|
|
internal thermal recorder |
|
Power supply |
AC 220V/110V ± 10%, 50/60 Hz |
|
Power |
50W |
|
Operation conditions |
Temperature : 15C ° ~32 ° C Humidity : ≤ 85% Dimension : 400mm × 300mm × 200mm (L × W × H) Net weight : 11.5 kg |
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance
