Single beam overhead crane configuration is made up of a single bridge girder, two end carriages and a hoist with trolley, which
runs along the bottom flange of the bridge girder between the end carriages.
* It is widely used in industrial factory, warehouse, workshop, stock ground, workstation factory, goods yard etc.
* It looks like bridge, because both ends of girder are on the tall concrete column and metal support structure.
* It consists of metal structure, crane travelling mechanism, lifting mechanism, safety protection and operation.
- Product Details
- {{item.text}}
Quick Details
-
Span:
-
3m-28m
-
Place of Origin:
-
China
-
Brand Name:
-
VOHOBOO
-
Product Name:
-
Overhead crane
-
Control method:
-
Remote control or Cabin control
-
Type:
-
single girder or double girder
-
Power supply:
-
3 Phase AC 220-690V 50Hz
-
Electric Brand:
-
Chint, Siemens,Schneider and so on
-
Work Duty:
-
A3-A5
-
OEM/ODM:
-
available
-
work temperature:
-
33~46 degree
-
Color:
-
Yellow .Red . Orange or customized
-
Lifting mechanism:
-
electric hoist
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO , CE
Quick Details
-
Max. Lifting Height:
-
3m-16m
-
Rated Lifting Moment:
-
100kn
-
Max. Lifting Load:
-
32t
-
Span:
-
3m-28m
-
Place of Origin:
-
China
-
Brand Name:
-
VOHOBOO
-
Product Name:
-
Overhead crane
-
Control method:
-
Remote control or Cabin control
-
Type:
-
single girder or double girder
-
Power supply:
-
3 Phase AC 220-690V 50Hz
-
Electric Brand:
-
Chint, Siemens,Schneider and so on
-
Work Duty:
-
A3-A5
-
OEM/ODM:
-
available
-
work temperature:
-
33~46 degree
-
Color:
-
Yellow .Red . Orange or customized
-
Lifting mechanism:
-
electric hoist
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO , CE
Product Overview
A. Single girder overhead crane

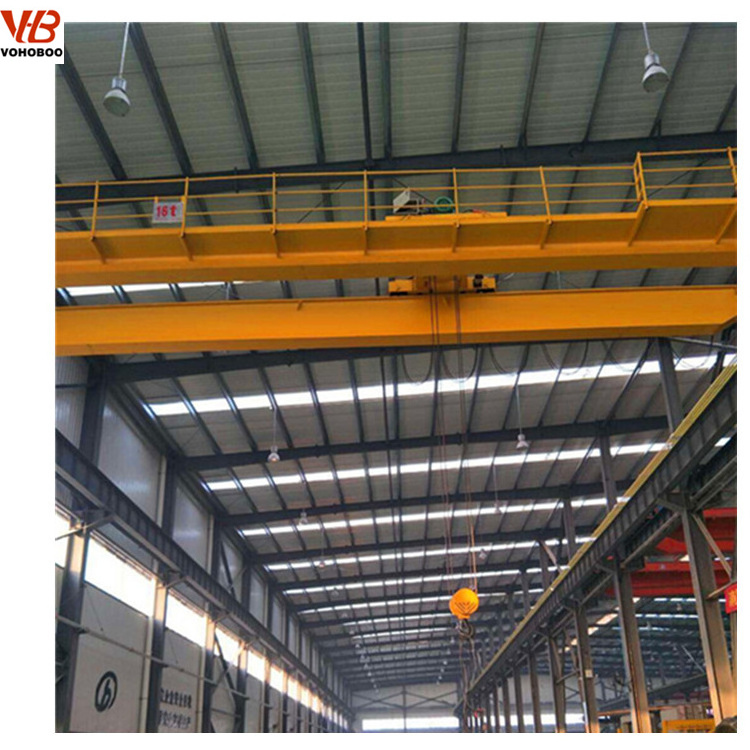

B.Double girder overhead crane
Double beam overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley. The hoist travels on top of rails that are mounted to the top of bridge girders. It is widely used for transferring material, goods equipment installation and maintenance in factory, power station, storeroom, warehouse etc.
Double beam overhead crane configuration is made up of two bridge girders, two end carriages and a hoist with trolley. The hoist travels on top of rails that are mounted to the top of bridge girders. It is widely used for transferring material, goods equipment installation and maintenance in factory, power station, storeroom, warehouse etc.
PRODUCT SPECIFICATIONS
|
Iteam
|
Specifications
|
|
|
|
Lift capacity(T)
|
1T~100T (single girder or double girder)
|
|
|
|
Crane span(M)
|
3~28m according to your demands
|
|
|
|
Lifting height(M)
|
3~48m according to your demands
|
|
|
|
Crane traveling speed(m/min)
|
5~20m/min or 5~30m/min or 5~40m/min.As your request
|
|
|
|
Electric hoist lifting speed(m/min)
|
European electric hoist
(5/0.8 m/min double speed)
|
CD1 electric hoist(8 m/min)
MD1 electrc hoist(8/0.8 m/min)
|
|
|
Hoist trolley speed(m/min)
|
0-20 m/min
|
20m/min or 8/20m/min
|
|
|
Remote control
|
F24-6D/F24-10D or F21-E1B etc, according to your demands
|
|
|
